Working Toy Cartridge V3

THIS MODEL IS PURELY A TOY WARNING: DO NOT SHOOT IN THE FACE AND ALWAYS HAVE THE CONSENT OF THE PERSON YOU ARE SHOOTING AT. READ THE DESCRIPTION CAREFULLY BEFORE PRINTING !!!

Following numerous requests from many users, and the success of the Working Toy Cartridge V1 and V2, I am proud to introduce the new and improved version: the Working Toy Cartridge V3 (Working Toy Cartridge Mini)!

Unlike previous versions, this one features many improvements in terms of both aesthetics and functionality:

- Assembly is even easier.

- The dimensions are extremely compact, which means that many toy gun models that were initially impossible to create are now possible ;D Please don't flood me with requests for replicas to create.

- Tolerance issues are no longer a problem.

- The model no longer uses rubber bands, but rather a simple spring found in any click pen (using the spring from Maker's Supply is highly recommended for optimal performance).

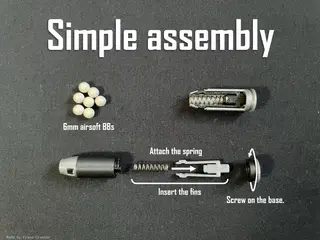

- Assembly is extremely simple and super fast, taking no more than 20 seconds.

- Printing is faster, with an average duration of 30 minutes.

- The structure is significantly more durable than previous versions and can withstand multiple drops without any issues.

- Any type of filament can be used to print the model, without the risk of encountering problems related to tolerances.

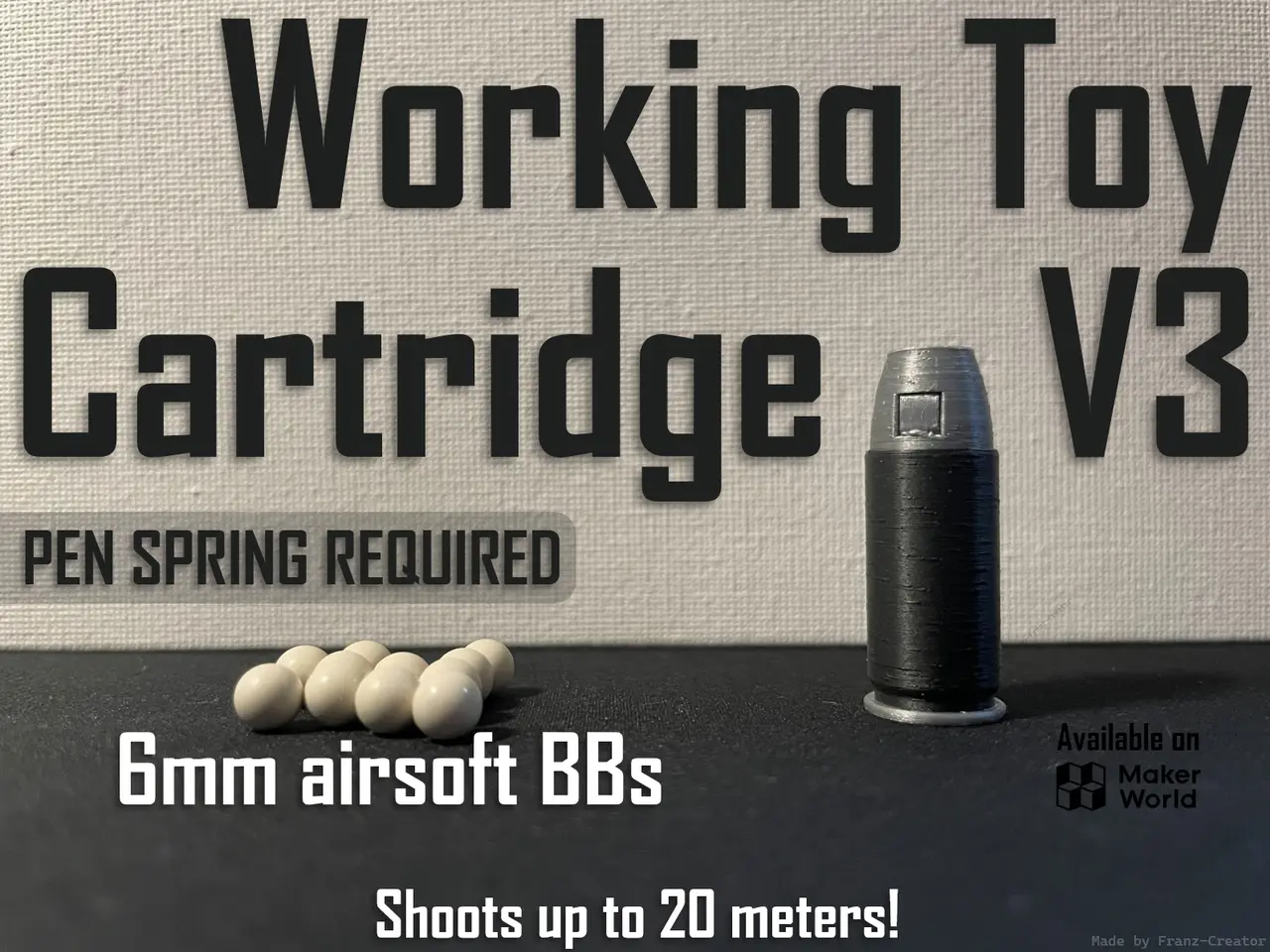

- The toy cartridge now uses airsoft BBs, which are much more durable and aerodynamic.

- When using the most powerful recommended spring, the maximum BB range reaches approximately 20 meters.

- The loader is included in the print files and a pencil is no longer required to load the toy cartridge.

Spring As previously mentioned, this model operates using a standard spring, such as one taken from any ordinary click pen. Depending on the size of the spring, which varies based on the pen it comes from, you will need to select the appropriate print profile among these:

- Fins component - TEST If you do not use the springs listed in the Maker's Supply, it is highly recommended to print the first suggested profile to test the various versions of the component with your specific spring.

- A_Working Toy Cartridge V3 Most common size for a pen spring

- B_Working Toy Cartridge V3 For a 0.5 x 5 x 20 mm spring

- C_Working Toy Cartridge V3 For a 0.3 x 4 x 20mm spring

- D_Working Toy Cartridge V3 for a 0.5 x 5 x 30 mm spring

This model is compatible with: To use this model as a replacement for previous versions of the toy cartridge, an adapter is required; this will soon be available in the print profiles.

Working Toy Revolver • 99% 3D Printed da Franz-Creator | Scarica il modello STL gratuito | Printables.com

Compatibility with other models will arrive soon.
