Working 5 speed transmission model for Toyota 22RE engine
por Eric Harrell en Thingiverse
All my models are printed on a Prusa i3 kit. You can find the one I use by clicking the link below. You can get 15% off by using code "GBTE" Tronxy Prusa I3 This is the 5 speed transmission that comes bolted to the back of a 22RE. This is the 4WD version of the transmission so it has a mounting...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Eric Harrell.
Archivos (44)
- 2_shift_fork_-_Scaled.stl STL · 34 KB
- 4_shift_fork_2_-_Scaled.stl STL · 40 KB
- R_shift_fork_-_Sclaed.stl STL · 429 KB
- 5th_gear_Shift_collar_-_Scaled.stl STL · 158 KB
- Front_bearing_retainer_-_Scaled.stl STL · 493 KB
- Gear_1_Counter_Shaft_-_Scaled.stl STL · 744 KB
- Gear_2_Counter_shaft_-_Scaled.stl STL · 580 KB
- Gear_2_Top_-_Sclaed.stl STL · 1009 KB
- Gear_3_Top_-_Scaled.stl STL · 1018 KB
- Gear_3_Counter_shaft_-_Scaled.stl STL · 676 KB
- Gear_1_Top_-_Scaled.stl STL · 933 KB
- Gear_4_Counter_shaft_-_Scaled.stl STL · 647 KB
- Gear_5_Counter_shaft_-_Scaled.stl STL · 984 KB
- Bell_Housing_-_Scaled.stl STL · 4,9 MB
- Gear_4_Top_-_Scaled.stl STL · 1006 KB
- Gear_5_Top_-_Scaled.stl STL · 543 KB
- Shifter_base_1_-_Scaled.stl STL · 413 KB
- Shifter_ball_bottom_-_Scaled.stl STL · 201 KB
- Shifter_ball_top_-_Scaled.stl STL · 170 KB
- Shift_collar_gear_-_Scaled.stl STL · 69 KB
- Reverse_Gear_-_Scaled.stl STL · 165 KB
- Shifter_base_-_Scaled.stl STL · 95 KB
- Output_shaft_-_Scaled.stl STL · 178 KB
- Input_Shaft_-_Scaled.stl STL · 171 KB
- Pressure_Plate_-_Scaled.stl STL · 331 KB
- Reverse_idler_-_Scaled.stl STL · 81 KB
- Shift_collar_gear_-_5th_-_Scaled.stl STL · 88 KB
- Shifter_base_2_-_Scaled.stl STL · 365 KB
- Shift_Collar_-_Scaled.stl STL · 194 KB
- Transmission_housing_2_bearing_retainer_-_Sclaed.stl STL · 93 KB
- Transmission_housing_2_-_Scaled.stl STL · 318 KB
- Transmission_housing_3_-_Shell_-_cover_-_Scaled.stl STL · 714 KB
- Transmission_housing_3_-_Scaled.stl STL · 3,3 MB
- 2_shift_collar_fork_-_Scaled.stl STL · 557 KB
- 4_Shift_Collar_fork_-_Scaled.stl STL · 531 KB
- Transmission_Housing_1_-_Scaled.stl STL · 3,1 MB
- Parts_List.xls XLS · 23 KB

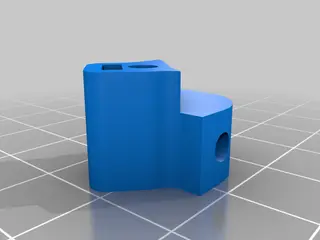

- test_jig.STL STL · 324 KB

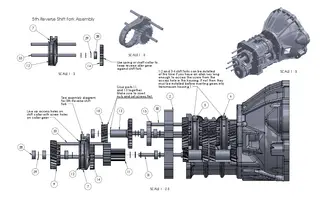

- Section_one_breakdown_-_Bill_of_Materials_-_Sheet1.pdf PDF · 283 KB
- Transmission_Stand_-_Scaled.stl STL · 127 KB

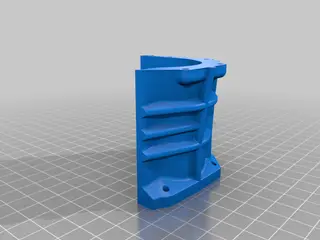

- Transmission_Housing_1_Cover_-_Scaled.stl STL · 2,2 MB

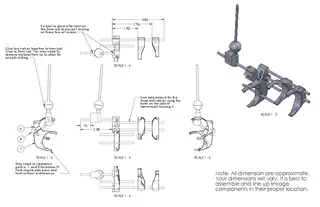

- Shift_linkage_-_Scaled.stl STL · 70 KB
- Section_two_breakdown_-_Sheet1.pdf PDF · 390 KB
- Shift_linkage_-_Sheet1.pdf PDF · 200 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL, XLS, PDF
- Descargas (todas las plataformas)
- 261,027
- Publicado
También en
Sobre este modelo

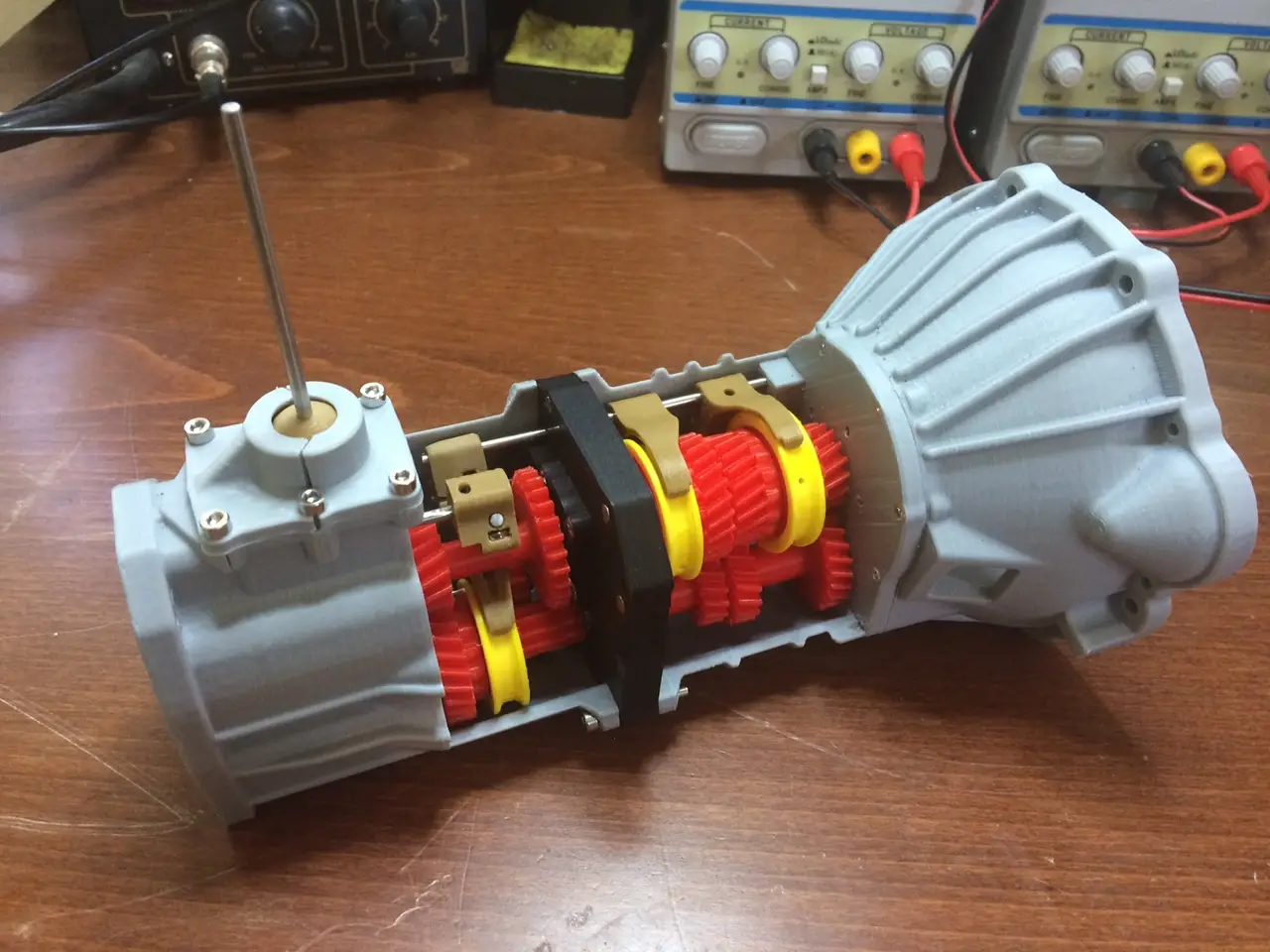

All my models are printed on a Prusa i3 kit. You can find the one I use by clicking the link below. You can get 15% off by using code "GBTE" Tronxy Prusa I3 This is the 5 speed transmission that comes bolted to the back of a 22RE. This is the 4WD version of the transmission so it has a mounting surface to bolt a transfer case to. The transfer case will be the next thing I will upload Fully working. All 5 speeds plus reverse. It uses a good amount of 3mm rod and 623zz bearings. M2.5 x 5mm set screws and nuts were used due to the small size of some of the parts. http://youtu.be/SB34I33Bqrg
