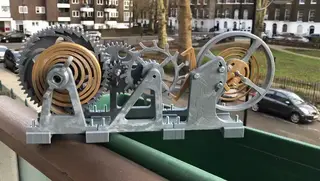

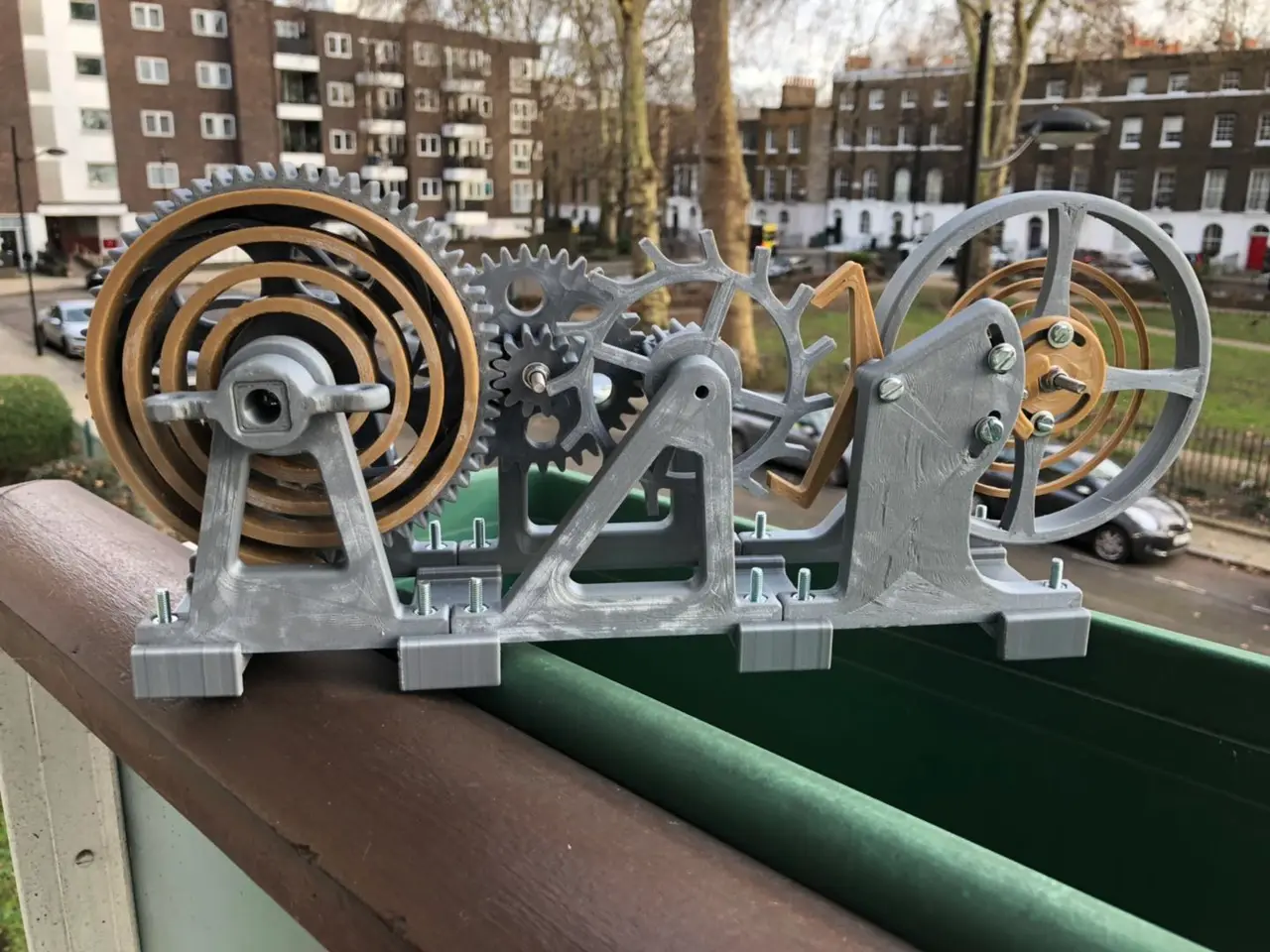

Watch Escapement Desk Toy
por Karl Lee en Thingiverse
This is a basic model of a swiss lever escapement, it could also be used as a desk toy. https://youtu.be/QnQ13NL3MFk I have always been fascinated by the inner workings of a mechanical watch, I have designed this model to understand the basics of how a watch regulates it's speed. The model's parts..
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Karl Lee.
Archivos (24)
- AssemblyDrawing_Sheet_1.pdf PDF · 246 KB
- AssemblyDrawing_Sheet_2.pdf PDF · 180 KB
- AssemblyDrawing_Sheet_3.pdf PDF · 221 KB
- AssemblyDrawing_Sheet_4.pdf PDF · 460 KB
- Balance.stl STL · 2,9 MB
- Bracket.stl STL · 1,5 MB
- BarrelRatchet.stl STL · 185 KB
- EscapeWheel.stl STL · 1,4 MB
- ImpactPinHousing.stl STL · 1,0 MB
- Ratchet.stl STL · 624 KB
- HairSpring.stl STL · 1,2 MB
- GearTrain.stl STL · 2,3 MB
- RatchetSpring.stl STL · 525 KB
- WindingStem.stl STL · 327 KB
- BalanceFrameBack.stl STL · 2,0 MB
- TrainFrameFront.stl STL · 1,8 MB
- SpringFrameBack.stl STL · 2,7 MB
- SpringFrameFront.stl STL · 2,5 MB
- WindingKey.stl STL · 3,8 MB
- TrainFrameBack.stl STL · 3,0 MB
- BalanceFrameFront.stl STL · 1,8 MB
- MainSpring.stl STL · 1,6 MB
- SpringBarrel.stl STL · 58,1 MB
- PalletFork.stl STL · 1,0 MB
- Categoría
- Juguetes y juegos
- Formatos
- PDF, STL
- Descargas
- 153,275
- Publicado
Sobre este modelo
This is a basic model of a swiss lever escapement, it could also be used as a desk toy. https://youtu.be/QnQ13NL3MFk I have always been fascinated by the inner workings of a mechanical watch, I have designed this model to understand the basics of how a watch regulates it's speed. The model's parts are very easy to print and uses common fasteners to hold everything together. This video explains the basic working principles of a mechanical watch https://www.youtube.com/watch?v=WYBvt9kA3bE Assembly of the escapement is very straight forward, please refer to the attached exploded view when assembling the parts. Below are a list of fasteners required M4 Nut: 19 M4 Locknut: 4 M4 Washer: 24 M4 x 16: 13 M4 x 20 : 2 M4 x 40: 2 M4 x 50: 1 M4 x 60: 3 M3 Nut: 3 M3 Washer: 3 M3 x 12: 2 M3 x 25: 1
