Toyota 4 Cylinder Engine 22RE, Complete working model
por Eric Harrell en Thingiverse
Complete hardware kits that include all the non-printed parts can be found over at MakerRx Complete hardware kits Completely reverse engineered Toyota 22RE 4 cylinder engine. Can completely print a fully rotating model. Working crank, pistons, and valve train. The valves open and close!!!. It may...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Eric Harrell.
Archivos (108)
- Cylinder_Head.stl STL · 10,3 MB
- Crank_spacer.stl STL · 23 KB
- Spark_plug_wire_barrel_jack_cover.stl STL · 51 KB
- Left_motor_mount.stl STL · 179 KB
- Starter_Motor_Mount.stl STL · 63 KB
- Intake_valve.stl STL · 220 KB
- Right_motor_mount.stl STL · 189 KB
- Starter_Motor_Mount.stl STL · 63 KB
- Timing_Idle_gear_1.stl STL · 316 KB
- Cam_bearing_cap.stl STL · 205 KB
- Spark_plug_boot.stl STL · 241 KB
- Timing_Idle_gear_3.stl STL · 285 KB
- Oil_cap.stl STL · 429 KB
- Thermostat_housing.stl STL · 1,3 MB
- Spring_retainer.stl STL · 54 KB
- Throttle_body.stl STL · 1,3 MB
- Right_motor_mount.stl STL · 189 KB
- VALVE_COVER.stl STL · 1,5 MB
- Intake_manifold_upper_-_part_2.stl STL · 1,4 MB
- Camshaft2.stl STL · 140 KB
- Oil_cap.stl STL · 429 KB
- Starter_Motor_Cover.stl STL · 47 KB
- Spark_plug_wire_barrel_jack_cover.stl STL · 51 KB
- Rear_Main.stl STL · 2,3 MB
- Oil_pan.stl STL · 865 KB
- Starter_Drive_Gear.stl STL · 83 KB
- Spark_plug_boot.stl STL · 241 KB
- Camshaft1.stl STL · 140 KB
- Throttle_body.stl STL · 1,3 MB
- Timing_Idle_gear_3.stl STL · 285 KB
- Distributor__Cap.stl STL · 1,3 MB
- Timing_cover.stl STL · 4,9 MB
- Distributor_Base.stl STL · 324 KB
- Crank_1.stl STL · 527 KB
- Starter_Motor_Cover.stl STL · 47 KB
- Crank_pulley.stl STL · 1,2 MB
- Cam_Gear.stl STL · 591 KB
- Distributor__Cap.stl STL · 1,3 MB
- Timing_cover.stl STL · 4,9 MB
- Connecting_rod.stl STL · 597 KB
- Exhuast_valve.stl STL · 219 KB
- Crank_spacer.stl STL · 23 KB
- Timing_Idle_gear_1.stl STL · 316 KB
- Exhuast_valve.stl STL · 219 KB
- Piston.stl STL · 1,8 MB
- Rocker_arm.stl STL · 1,3 MB
- Intake_manifold_upper_-_part_1.stl STL · 2,7 MB
- Fanspacer.stl STL · 17 KB
- Camshaft2.stl STL · 140 KB
- Cam_Gear.stl STL · 591 KB
- Rear_Main.stl STL · 2,3 MB
- Flywheel.stl STL · 501 KB
- Crank_gear.stl STL · 382 KB
- Fan_pulley.stl STL · 1,1 MB
- Main_cap.stl STL · 279 KB
- Intake_manifold_upper_-_part_2.stl STL · 1,4 MB
- Starter_Drive_Gear.stl STL · 83 KB
- Crankshaft_spacer_.stl STL · 44 KB
- Crank_pulley.stl STL · 1,2 MB
- Connecting_rod_cap.stl STL · 279 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL, PDF
- Descargas
- 452,618
- Publicado
Sobre este modelo

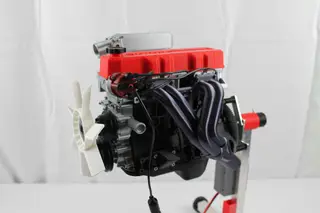

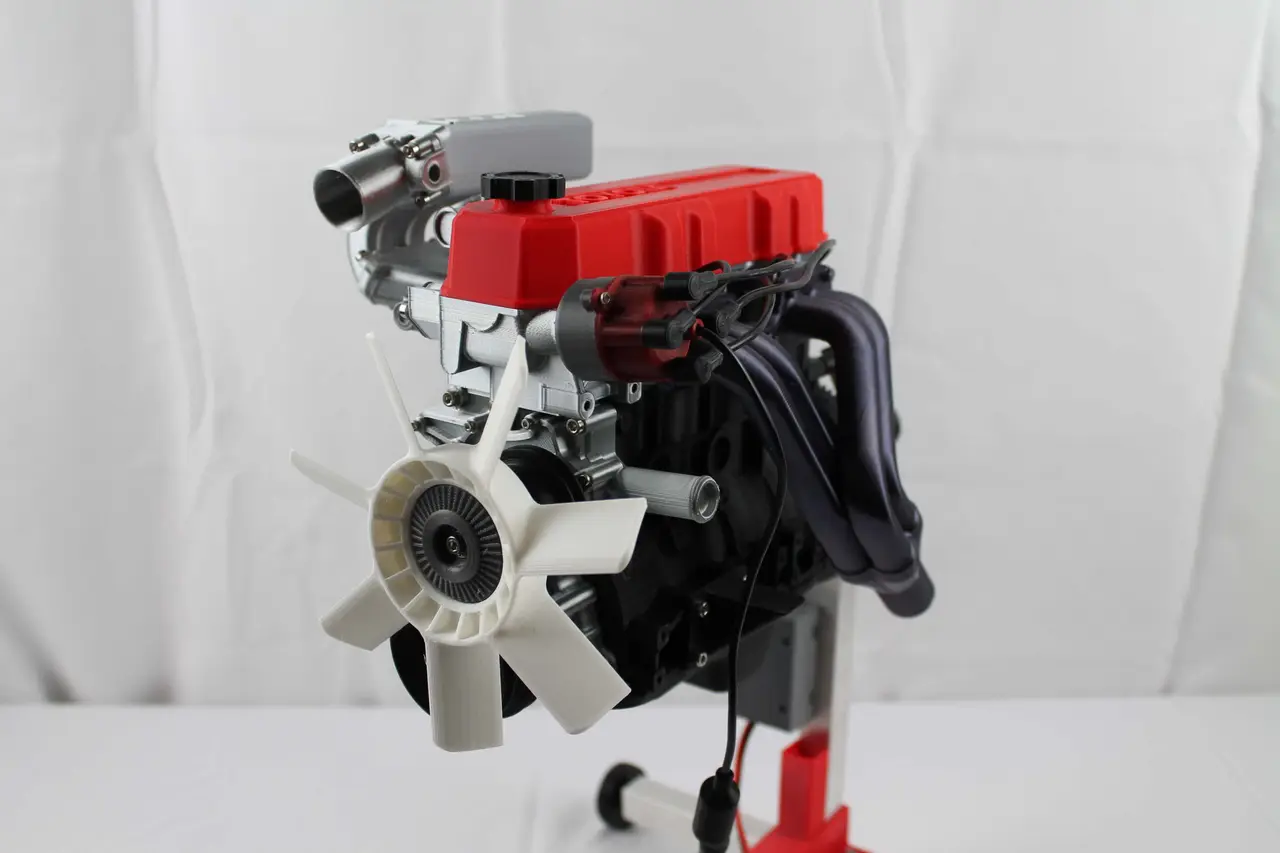

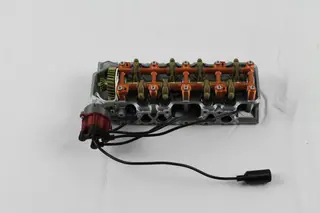

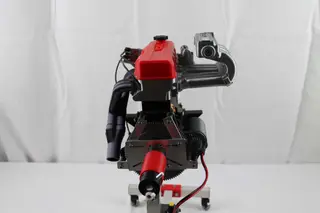

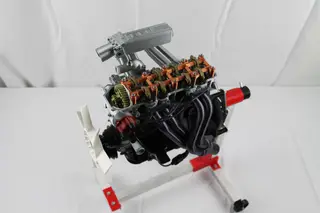

Complete hardware kits that include all the non-printed parts can be found over at MakerRx Complete hardware kits Completely reverse engineered Toyota 22RE 4 cylinder engine. Can completely print a fully rotating model. Working crank, pistons, and valve train. The valves open and close!!!. It may not be the most exciting engine but its the only one I had in my garage. Great if you want to learn about engines and how the moving parts in them work. All parts are printed except for a few bearings and fasteners. More than 3 days of total print time. The block alone was 34 hours. So make sure you have a well calibrated and reliable printer. Some print times calculated in Cura at .2mm layer height Engine Block - 40 hours Head - 23 hours Valve Cover - 10 hours Oil pan - 14 hours http://youtu.be/mmK_LWOqRp8
