Toroidal Launcher V2 - High RPM Propeller Launcher

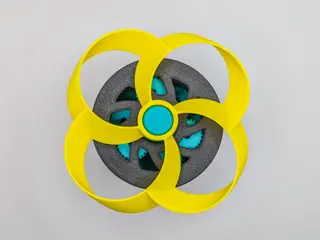

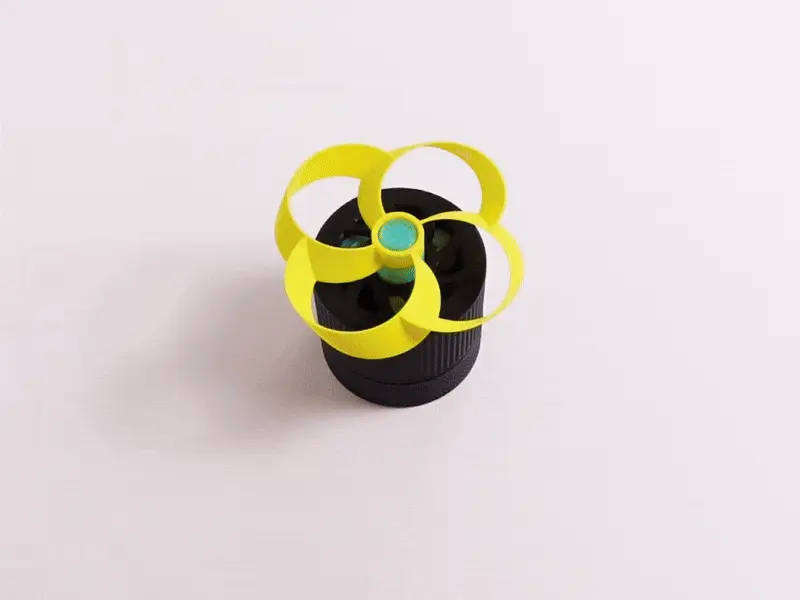

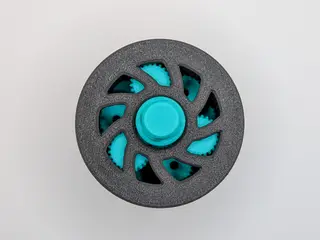

Toroidal Launcher V2 The long awaited update to my Toroidal Launcher is now here! Completely redesigned from the ground up to print faster, assemble easier and fly higher! The redesigned planetary gearbox now features progressive gearing to achieve the same 48x ratio as the original design all while simplifying the assembly!

Once you've printed and assembled your launcher be sure to also checkout the Toroidal Propeller Lab and start designing your own custom propellers! Printing Tips

- To avoid layer adhesion issues always clean build plate using water and a light soap (wiki guide)

- Recommended to use Basic PLA, PETG or ABS/ASA for gears and functional components - Cosmetic and fiber reinforced filaments can be used for a more aesthetic housing if desired

- For best results run flow rate calibration on all filaments to ensure dimensional accuracy

- Toroidal Rings can be printed using the High Quality 0.16mm preset from Bambu Labs - Using ABS, ASA or PA gives a 12-15% weight advantage over PLA and PETG

- Launcher parts print the best using the High Quality 0.16mm preset from Bambu Labs

- Launcher parts print the quickest using the Standard 0.20mm preset with the following changes: - Arachne wall generator, 3° wall transitioning angle

- 60 outer wall speed, 150 inner wall speed

- 20% adaptive cubic infill

- Avoid crossing walls

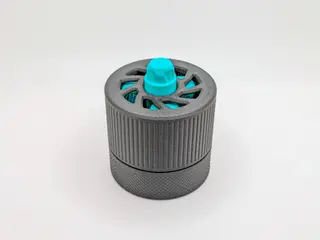

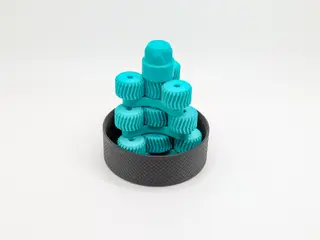

Assembly Walkthrough Assemble each planet carrier with three planet gears as shown above (all planet gears are identical) Match the planet carriers with the correct sized sun gear and carefully press the sun gear into place for each carrier Instal the third stage gear assembly making sure the gears are able to spin freely before continuing Install the second stage planet gear assembly making sure the gears are able to spin freely and firmly seating the sun gear to previous stage Repeat the previous step to install the final planet gear assembly Secure the gears by turning the housing knob in the direction indicated by the arrows until the drive is seated and the halves snap together Completed launcher assembly with included toroidal ring adapter Frequently asked questions Can the gears be lubricated? Yes! Using a lubricant that is safe for plastics (e.g. Super Lube 51004) is highly recommended to reduce friction of plastic parts. During assembly apply a drop to the inner and outer surface of each planet gear to reduce friction between all plastic parts for the best possible performance.

I'm having trouble getting the gears to spin, what can I do? The first step is to always try reassembling the gears and launcher housing, taking care to turn the knob and mesh the gears before snapping the two halves together. If you're certain the gears are meshed correctly and there is too much friction it's recommended to run flow rate calibration on all filaments used for gear components to ensure dimensional accuracy.

Is there any way to fine-tune the gears even more? You can try adjusting the X-Y contour compensation in Bambu Studio (under Quality → Precision) and print a single stage of the launcher gears to check the fit. Once you are satisfied with the fit of a single stage the same compensation setting can be used to print the remaining stages to achieve a similar fit.

Can I showcase the design on my YouTube/Instagram/TikTok or other social medial platform? Of course! You're more than welcome to showcase or feature the 3D printed model in any blog, short/long form video or other content as long as you provide credit to the designer and a link to the exclusive design here on MakerWorld. Be sure to leave a comment with a link to your content and I will showcase the best videos here directly on the model page!

Can I sell the printed design or files? The design will always be free for anyone with a 3D printer to print for themselves and gift to others but if you are interested in selling the printed models for profit I offer several options through Patreon and the MakerWorld membership program, click the button below to learn more! MembershipClick to learn more about licensing options!Modifications and Add-on Designs
