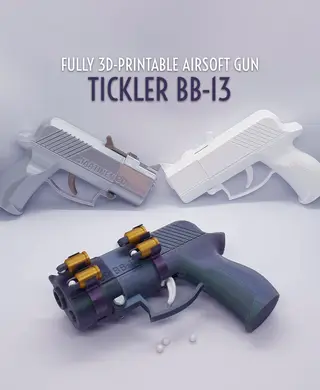

Tickler BB-13 — Fully 3D-printable airsoft gun with bullets
Check out the new Rutku BB-20 double barrel shotgun! (https://than.gs/m/1055858?affiliateCode=Jaatinen3D)
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a Jouni A.
Archivos (17)
- Barrel Latch Pin.stl STL · 95 KB
- Barrel Latch.stl STL · 84 KB
- Barrel Pin Clip.stl STL · 112 KB
- Barrel Pin.stl STL · 98 KB
- Barrel.stl STL · 483 KB
- Bullet Clip.stl STL · 144 KB
- Bullet Inner Clip.stl STL · 126 KB
- Bullet Shell.stl STL · 144 KB
- Firing Pin.stl STL · 101 KB
- Frame Pin.stl STL · 235 KB

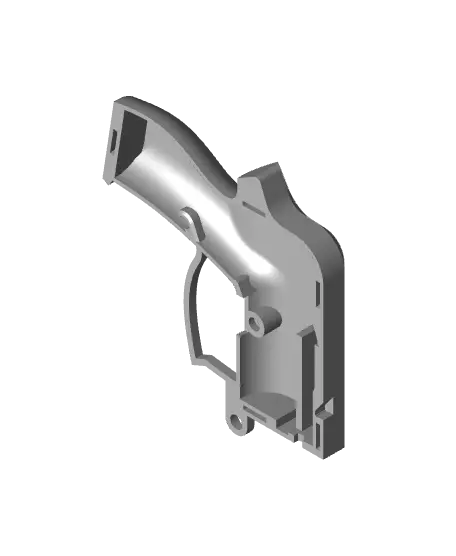

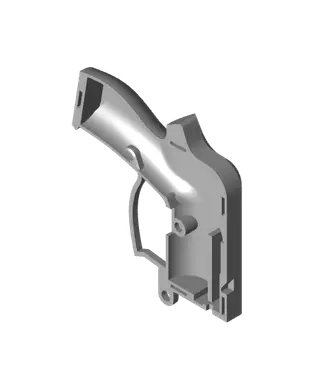

- Gun Frame Left.stl STL · 1,7 MB
- Gun Frame Right.stl STL · 1,6 MB
- Multi-Plate.3mf 3MF · 1,6 MB
- Single-Plate.3mf 3MF · 1,5 MB
- Trigger Assembly.stl STL · 1,2 MB
- Trigger Pin.stl STL · 57 KB
- BB Bullet.stl STL · 740 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL, 3MF
- Descargas
- 3,028
- Publicado
Sobre este modelo
Check out the new Rutku BB-20 double barrel shotgun! (https://than.gs/m/1055858?affiliateCode=Jaatinen3D)
Check out the Tickler SA-6, BB-13's magazine-fed semi-automatic big brother! (https://than.gs/m/1066044?affiliateCode=Jaatinen3D)
Check out the Tickler Mini, BB-13's spring powered shell-ejecting little brother! (https://than.gs/m/1258953?affiliateCode=Jaatinen3D)
---

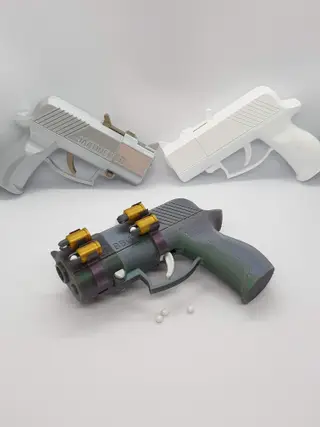

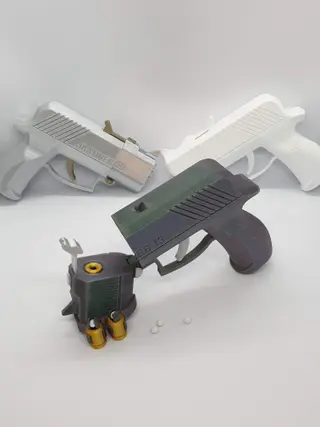

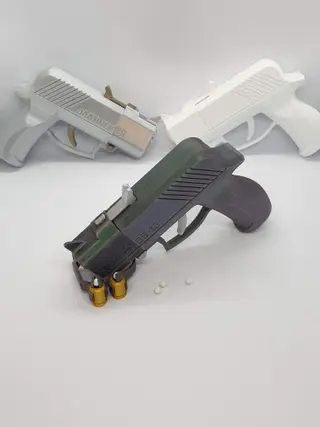

This little front loading single shot airsoft gun isn't very powerful, but it's fun! You only need a rubber band or two and superglue apart from the printed parts to build this!
---
_Update 2024-03-29: Updated the .3mf project files, they had a wrong profile on with way more walls than needed..._
---
Printing tips: All the parts are oriented in the correct printing orientation.
Use supports for Gun Frame Left and Gun Frame Right. All other are up to how your printer can handle small bridges.
I recommend using a brim for Bullet Inner Clip.
For Bambu users there are _Multi-Plate.3mf_ and _Single-Plate.3mf_ Bambu Studio project files. _Multi-Plate_ has all the parts nicely plated separately. Both project files have the print settings I used myself.
Assembly: Watch the included assembly video!
The bullets can fit up to 4 BBs, but I recommend using just one. You can try and see how a 4 BB bullet shoots. 😅
If you don't have BBs, I've included a printable bullet that works at least as well as a BB!
---
➡️ There is also a display stand for this gun! (https://than.gs/m/1035591?affiliateCode=Jaatinen3D) ⬅️
Descripción original del autor, publicada en Thangs.
