Thrustmaster TH8S Custom Shift Knob with Integrated Mini Keyboard
por Mani en Printables
Custom TH8S gear knob with TPU grip & integrated keypad for 3 actions. No programming required!
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Mani.
Archivos (14)
- joystick_complete.stl STL · 8,2 MB
- joystick_1.stl STL · 7,2 MB
- joystick_2_1.stl STL · 5,5 MB
- joystick_2_2.stl STL · 3,0 MB
- keyboard_mounting_frame.stl STL · 1,0 MB
- Original_Adapter.stl STL · 1,9 MB
- joystick_1.stp STP · 3,5 MB
- joystick_1_Multi.stp STP · 3,9 MB
- joystick_2_1.stp STP · 2,0 MB
- joystick_2_2.stp STP · 2,1 MB
- joystick_2_2_Multi.stp STP · 2,5 MB
- keyboard_mounting_frame.stp STP · 932 KB
- Original_Adapter.stl STL · 1,9 MB
- joystick_complete.3mf 3MF · 31,2 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL, STP, 3MF
- Descargas
- 17
- Publicado
Sobre este modelo

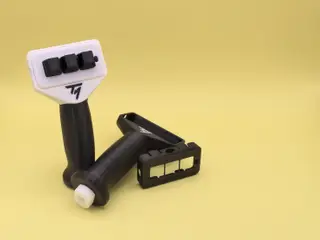

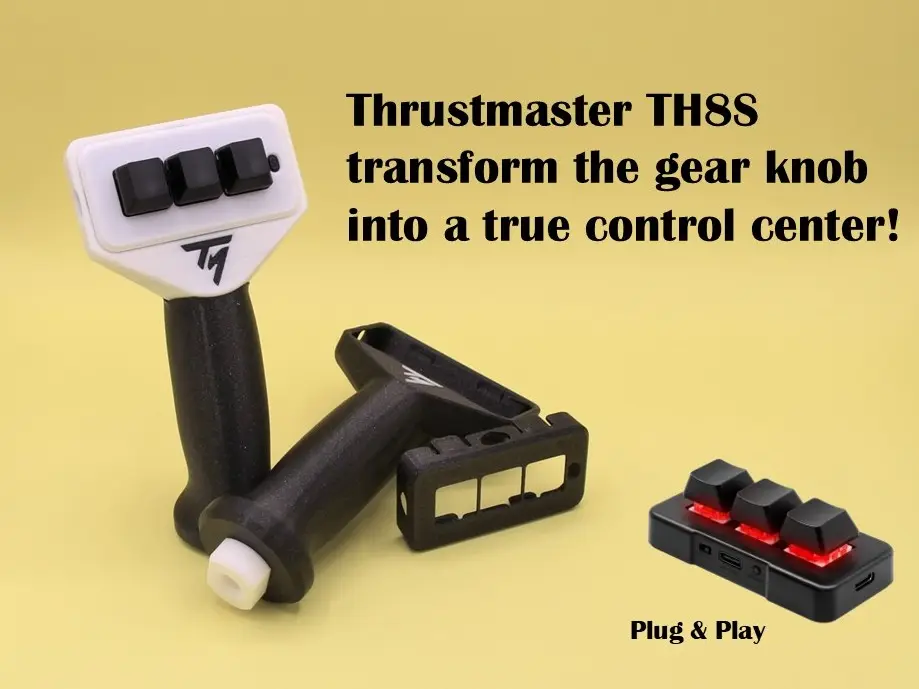

Thrustmaster TH8S Custom Shift Knob with Integrated Mini Keyboard

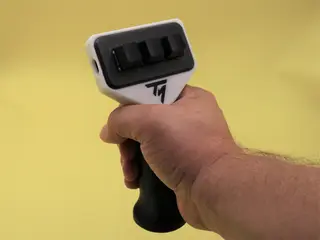

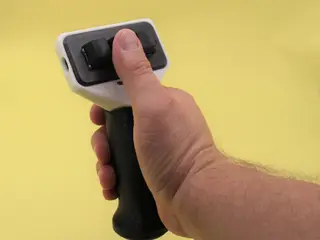

Get the most out of your Thrustmaster TH8S shifter and transform the gear knob into a true control center! This self-designed, 3-piece gear knob features an integrated standard mini keypad connected via Bluetooth. This gives you direct access to important functions without having to let go of the gearshift lever during the race or simulation games like Farming Simulator. Execute key actions (such as ignition, lights, windshield wipers, handbrake, lifting, tipping, etc.) without ever needing to take your hand off the gear stick.
Perfectly suited for: Rally simulations: (e.g., handbrake, wipers, lights, or reset,…) Farming simulator: (e.g., folding/unfolding equipment, lights, differential lock, or front loader controls ,.. ) Construction simulator: (e.g., folding/unfolding equipment, lifting, tipping ,.. Any other simulation where you need a few extra buttons right at your fingertips!
Features Compatibility: Suitable for the Thrustmaster TH8S Shifter. No programming knowledge required: Since it uses a standard mini-keyboard internal component, the module is automatically recognized by your PC as a regular keyboard. Plug & Play! Software: No separate software is required, it is included with the purchase of the keyboard. TPU elements: The handle incorporates TPU for a pleasant tactile feel, excellent grip, and a comfortable shifting experience. Assembly: No glue is required, only one M3x10 cylinder-head screw is needed if the shift knob is printed in two parts. The remaining components are designed to snap together and can be taken apart again. Built for daily use: Robustly constructed to withstand intensive use in sim racing or virtual farming.

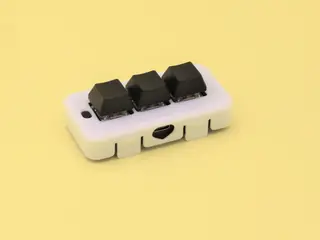

Standard Keyboard with bluetooth https://www.amazon.de/dp/B0BDRPQLW1?ref=ppx_yo2ov_dt_b_fed_asin_title Print Joystick Material: PLA/PETG Layer Height: 0.2mm Perimeters: 4 Infill: 15% Supports: NO (Designed support-free) Orientation: Print all parts flat on their default bottom face. Handle Material: TPU/FLEX Layer Height: 0.2mm Perimeters: 2 Infill: 5% with more infill, the handle will be too hard, which affects the tactile feel. Supports: NO (Designed support-free) Orientation: Print all parts flat on their default bottom face.
Descripción original del autor, publicada en Printables.
