The Absurd Two-Planet Gear
por DrJones en Printables
A Print-in-Place planetary gear with only 2 planets and strange consequences
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a DrJones.
Archivos (2)
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 2,469
- Publicado
Sobre este modelo

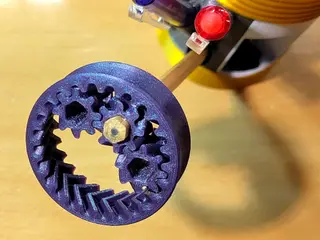

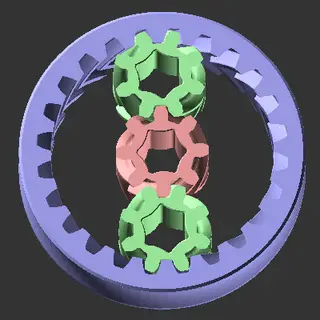

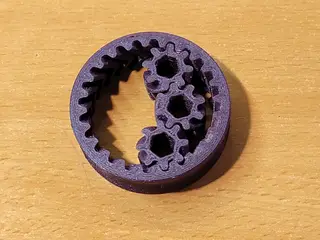

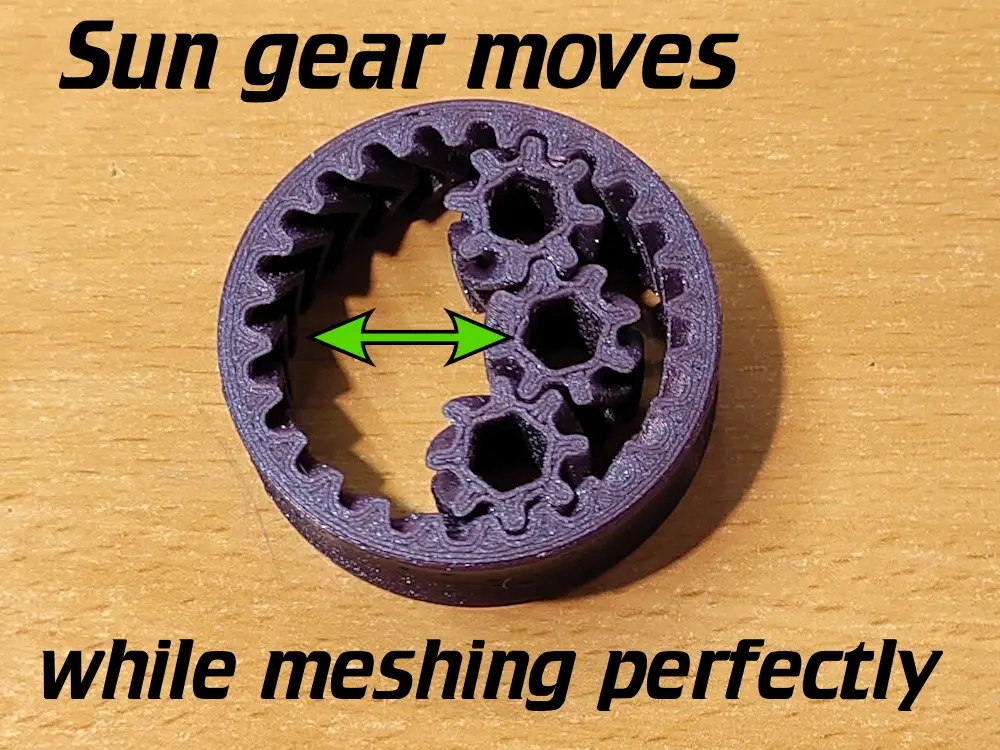

A planetary gear with only 2 planets? Shouldn't that fall apart? The sun gear definitely can move sideways, but the assembly does not fall apart. This is indeed a strange thing - probably without any use other than being strange and thus somewhat interesting. The hex holes fit typical hexagonal pencils. Printing: The usual stuff works fine (0.4mm nozzle, 0.2mm layer height). I use random seams to avoid thick seam blobs though. There are two STLs with different tolerances (tol15 and tol19), the smaller one worked fine for me (Prusa Mini). If you like gear fidget toys, try my fidget gear ring or my other fidget models.
Descripción original del autor, publicada en Printables.
