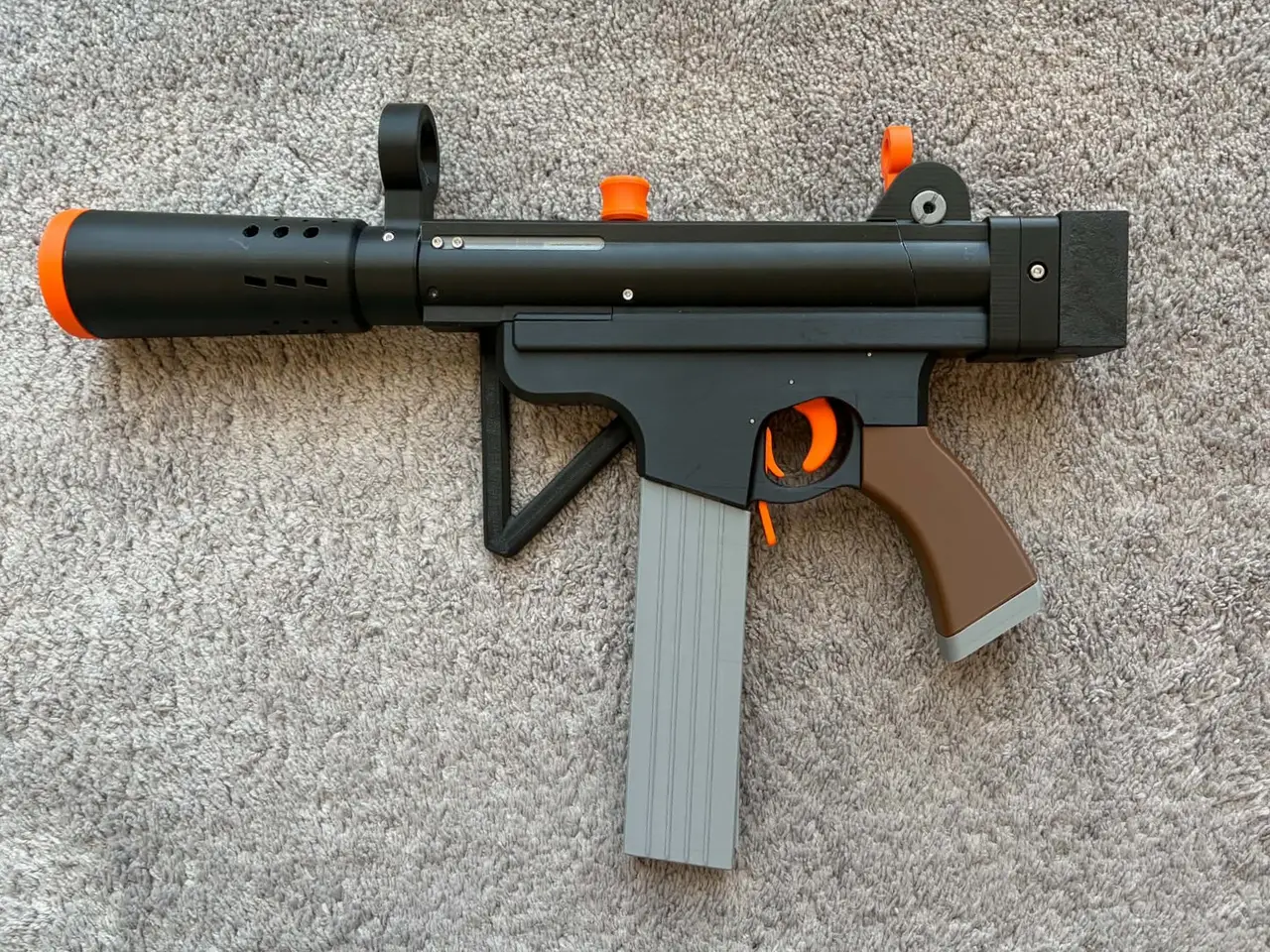

TF2 Cleaner's Carbine (Nerf blaster mod from AMSPawn06s' Knave)

If you want to buy me a coffee :) https://buymeacoffee.com/methanejuice

Update 20261004: Changing the latch of the folding stock to spring up instead of down to prevent dislodging when priming Also edit BOM and instructions to use M3x14mm self-tap to secure the stock

BOM - Knave kit

- #4 3/8in self tap screw Qty 5

- M3x14mm self-tap screws

- M3x20mm screw Qty 1 (another Qty 9 for BCAR)

- M3 Nut Qty 1

- Optional 3x7x3 BCAR bearings Qty 9

- Strong spring 1x12x30mm Qty 1

- M4x30mm Screw Qty 1

- M4 Nut Qty 1

Printing

Instruction

This shares most of the Knave format and assembles pretty much the same, with the following exceptions: Place an M3 nut under the bolt, secure with the M3x290mm screw before sliding onto the main body, bend the Receiver cover around, remove the bolt to attach the Prim Grip knob, and put the M3 screw back

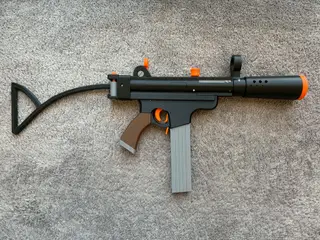

The folding stock attachment will need the large spring (green location), plus qty 4 #4 screws (purple) Edit: Use M3x14mm self-tap at the connection with the wire stick

Also, qty 2 #4 screws in these two locations
