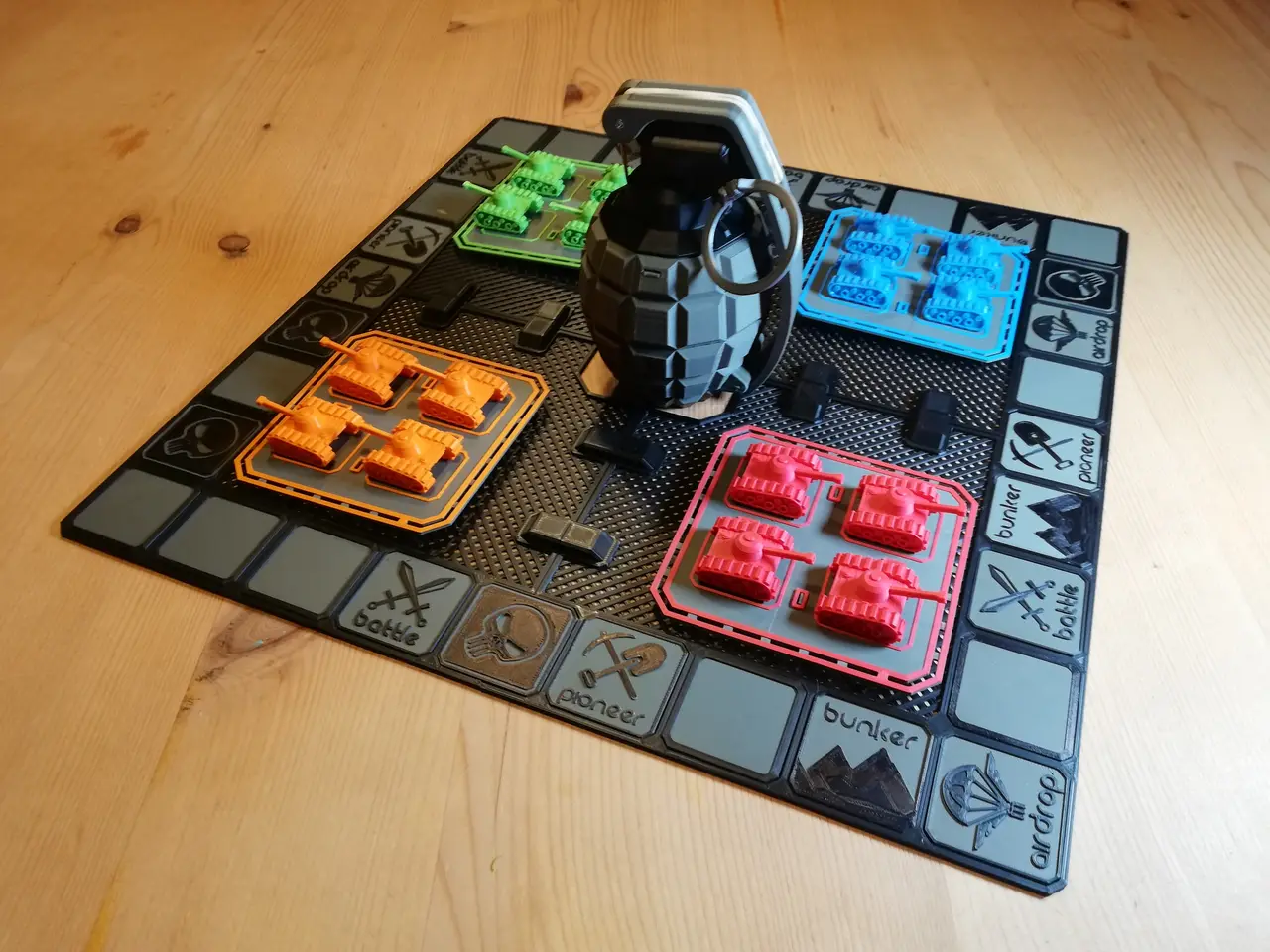

Table Top Game with Arduino ! Table War is an explosive Board Game. The one with the last Tank wins the Battle.
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a peaklin.
Archivos (43)
- battery-spring_new.stl STL · 159 KB
- battery cover_pt 2_new.stl STL · 241 KB
- grenade battery inner cover_new.stl STL · 298 KB
- board-small.stl STL · 6,0 MB
- plattform stand.stl STL · 88 KB
- battle square.stl STL · 379 KB
- bunker square.stl STL · 267 KB
- board clip.stl STL · 29 KB

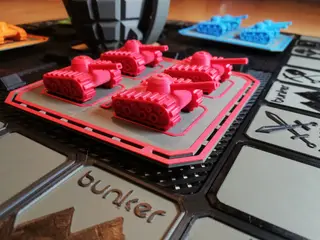

- tank.stl STL · 1,3 MB
- square set 1.stl STL · 3,3 MB
- airdrop square.stl STL · 422 KB
- board.stl STL · 6,7 MB
- minefield square.stl STL · 207 KB
- plattform.stl STL · 349 KB
- normal square.stl STL · 22 KB
- plattform stand thick.stl STL · 88 KB
- pioneer square.stl STL · 411 KB
- square set 2.stl STL · 3,5 MB
- grenade rubber bolt.stl STL · 9 KB
- grenade battery clip.stl STL · 18 KB
- grenade cover clip.stl STL · 8 KB
- grenade head left with support.stl STL · 565 KB
- grenade head right with support.stl STL · 566 KB
- grenade head clip.stl STL · 24 KB
- grenade ring clip.stl STL · 17 KB
- grenade cover.stl STL · 538 KB
- grenade inner plate.stl STL · 860 KB
- grenade battery inner cover.stl STL · 153 KB
- grenade head left no support.stl STL · 527 KB
- grenade clamp.stl STL · 481 KB
- battery cover_pt 1.stl STL · 31 KB
- battery cover_pt 2.stl STL · 279 KB
- grenade head bolt.stl STL · 58 KB
- grenade safety pin.stl STL · 425 KB
- grenade head right no support.stl STL · 528 KB
- grenade body.stl STL · 3,5 MB
- grenate ring.stl STL · 3,7 MB
- battery cover_pt 2_new.stl STL · 241 KB
- grenade battery inner cover_new.stl STL · 298 KB
- battery-spring_new.stl STL · 159 KB
- grenade_new.ino INO · 4 KB

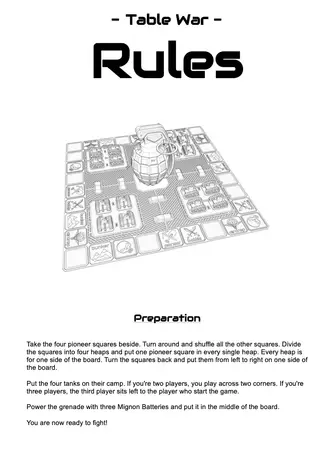

- Manual.pdf PDF · 19,3 MB
- Table War Upgrade.pdf PDF · 3,1 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL, INO, PDF
- Descargas
- 1,810
- Publicado
Sobre este modelo

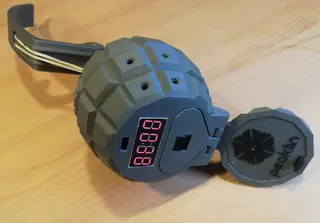

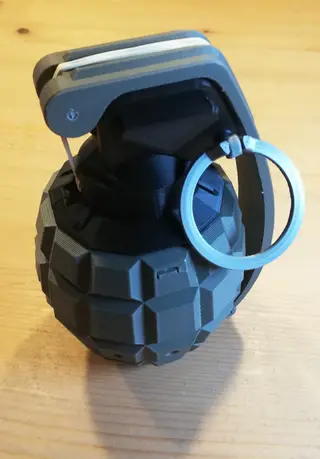

The Origin of this Project lies back in May 2021. I wanted to design a dynamite clock to entry the competition of Timekeepers but Pieter was faster. Then I started to design a grenade with a random countdown. I just didn't want to make a normal clock but a game instead. Unfortunately, I ran out of time and I couldn't finish it. Finally, the Tabletop Games and Puzzles contest launched and I become excited again. I finished the grenade and thought about other elements of a board game. In the end, the Idea of "table war" was born. That's why I love to taking part in a designing competition! It push my creativity, gives my motivation to finish a project…and makes me crazy, because time is always short!
In the designing process, I wanted to focus on following things: - no soldering (grove connections; self-made battery case) - no screws (printed clips and threads only) - just plug and play (as less glue and support as possible)
I also wanted to use an Arduino and some components. It's my first Arduino project. I had no programming skills at all. Be aware: If you start using this stuff you'll get addicted for sure:-)
You need some electric parts: - Arduino Nano Board (A000005) - Grove Shield für Arduino Nano, Seeed Studio (103100124) - Grove Button (P), Seeed Studio (111020000) - Grove Buzzer, Seeed Studio (107020000) - Grove Vibration Motor, Seeed Studio (105020003) - Grove 4-Digit Display, Seeed Studio (104030003) - Grove 4-Pin Cable 20cm Set (110990027) - Grove 4-Pin Cable 5cm Set (110990036)
You need also some other parts: - three AA-Batteries (Mignon) - a rubber band (you can also print one in soft TPU) - a side cutter - two dice - USB cable
You need to download Arduino IDE and TM1637 Library: - Arduino IDE (Version 1.8.15) - TM1637 Library
Special thanks goes to djwhouse from Grayslake, United States! He has adjusted the errors and gaps in the code. In addition, he has also put a very good new idea into the code.
Upgrade: - new battery cover (2x AA-Battery) - small board (for Prusa Mini)
