SwitchRest - Nintendo Switch Headrest

Update: 8/12/2020

Completely redesigned in Fusion 360 most notable change is the locking mechanism is now easier to use thanks to the suggestion of Thingiverse user Ivankio

**Update: 12/8/2018**

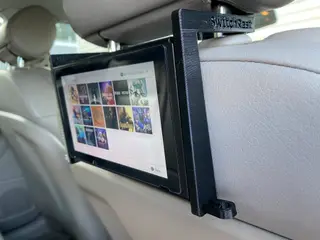

- Added locking mechanism to secure switch - Added switchrest-lock.stl (locking mechanism) - Modified switchrest-left and switchrest-right brackets - Added switchrest-complete.stl (all components ready to print in a single stl file, locks already scaled to fit)

- Added new pictures

Scale the locks down to 96% in your slicer and eliminate the need of post processing.

~~I highly suggest you do some post processing on the locks either sand or file the portion that locks into the rails before using this or you will have a hard time getting them off and possibly break the side rails.~~

~~Once you can insert/remove the locks easily proceed to insert your Switch.~~

With these last changes I consider this completed and I don't plan on making further edits, suggestions are always welcomed.

Enjoy.

**Update: 5/15/17**

- Added SwitchRest and Switch logos - Added angled bracket so switch air intake has breathing room to prevent overheating - Added correct printing position for all STLs - Added SwitchRest-Left-Right STL contains both brackets ready to print in correct position

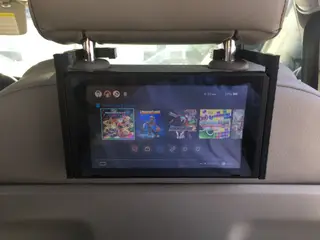

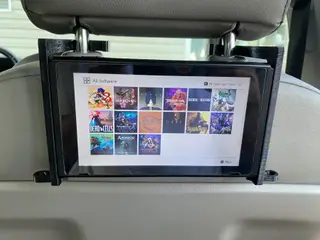

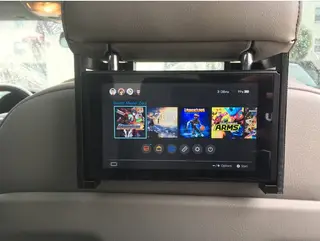

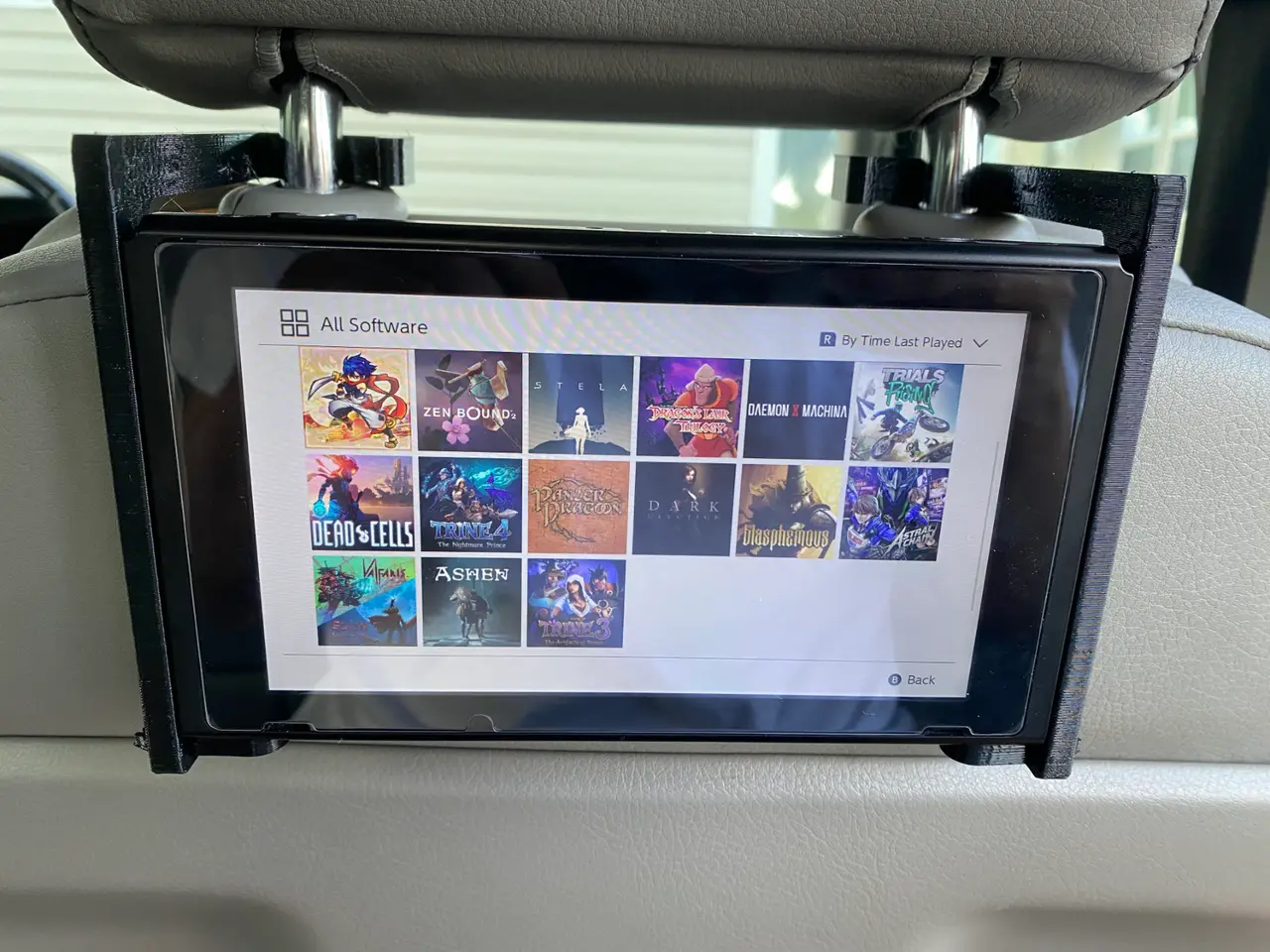

I made this so my daughter could play the Nintendo Switch mounted to my cars headrest while we do road trips.

~~This is my initial prototype which I made in 1 hour so I might be making a few revisions but this works really well, we recently used it on a 4 hour trip and it withstood all the bumps you normally have when driving on the highway at 70mph.~~

I suggest you do a solid infill for best durability since these can be a bit tight when placing them on the switch and need a decent amount of force to be removed.
