Sturdy Simple Top Loading Spool Holder
por Devin Enrique Büchele de Montes en MyMiniFactory
This spool holder is designed for CR-10 style printers that have a 2020 T-Slot Profile aluminum extrusion frame along the top. The holder is slightly angled so the filament spools off to the side and around the printer.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Devin Enrique Büchele de Montes.
Archivos (6)
- endcapv2.stl STL
- filamentloop.stl STL
- Simplespool Top Wide.stl STL
- Simplespool Top.stl STL
- Spooltop Wide.stl STL
- spooltop.stl STL
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 2,725
- Publicado
Sobre este modelo

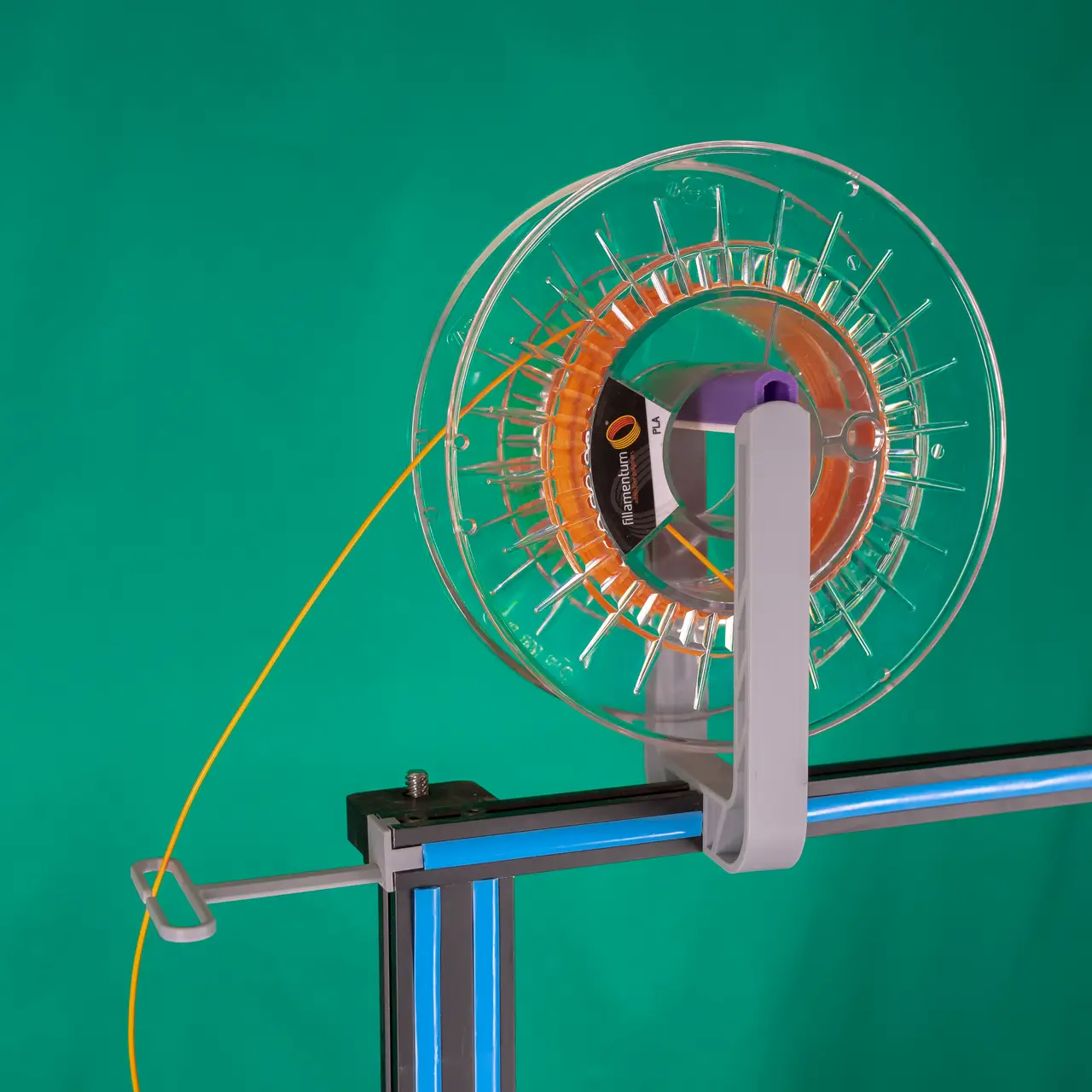

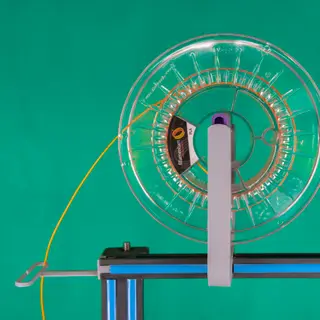

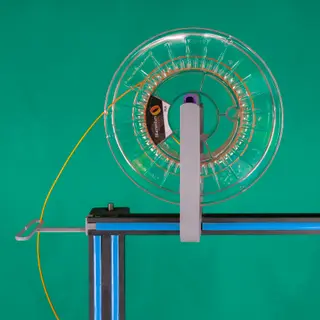

This spool holder is designed for CR-10 style printers that have a 2020 T-Slot Profile aluminum extrusion frame along the top. The holder is slightly angled so the filament spools off to the side and around the printer.

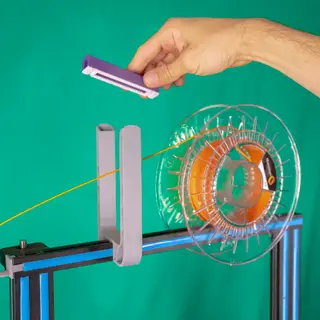

Installation on most printers will require you to remove the screws connecting the top beam to one side of the printer frame so you can slip the 'spooltop.stl' in the T-slots. I removed the decorative blue vinyl and cut it to fit on both sides of the holder. This looks clean and helps hold the holder in position.

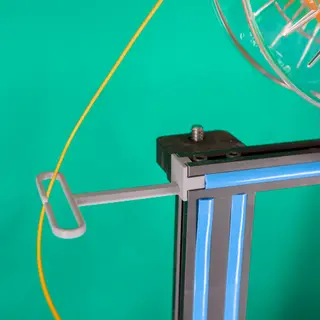

I've also included a Filament Loop that guides the filament towards the extruder. It replaces the endcap and is held in place with one of the frame screws. It's optional, but helps prevent snapping of brittle filaments.
The spool top is compatible with my Sturdy Simple Spool Holder
*07/24/19 UPDATE* Added wide version for 2kg spools (up to 9 cm wide)
*07/30/19 UPDATE* V2 endcap fits on more printers
Descripción original del autor, publicada en MyMiniFactory.
