Spinning Top with Screw-In Tip

This model is one from my extensive Children's Toys Collection.

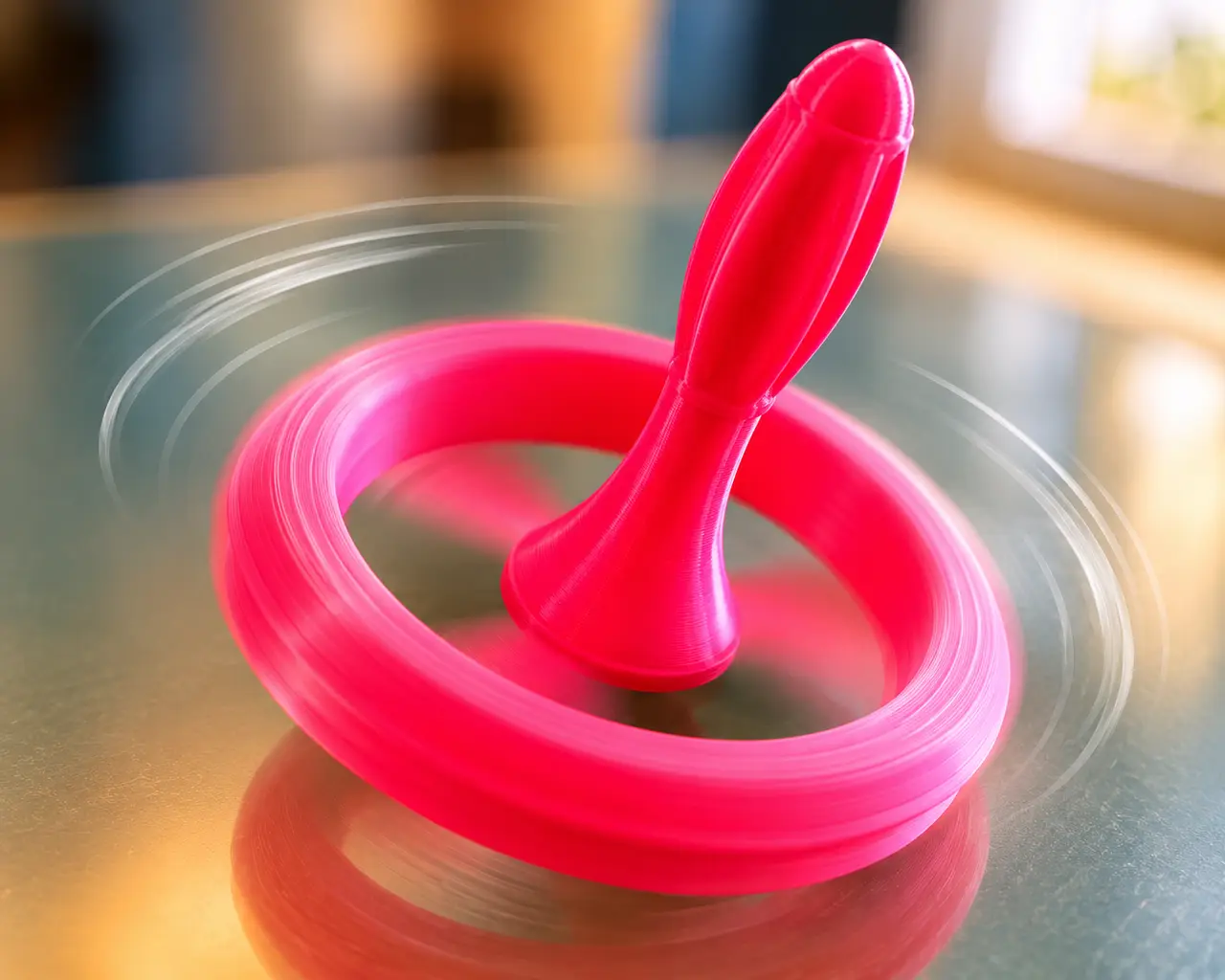

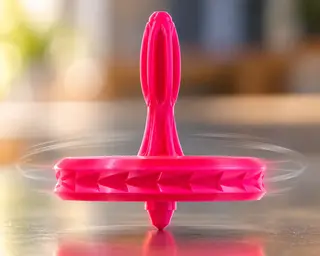

A simple and fun spinning top designed for easy and completely support-free printing. The large outer ring provides plenty of rotational mass, while the shaped handle makes it easy to give the spinner a good twist with two fingers– allowing spin times of more than one minute on a smooth surface. To make the entire model printable without supports, the tip is printed as a separate part. It features a threaded connection and simply screws into the bottom of the spinner – no glue required. A hexagonal section on the tip allows it to be tightened securely using a 12 mm open-end wrench. Note About the Pictures The preview images were created with the help of AI for presentation purposes only. Printing Information The STL files are correctly aligned. Layer height: 0.2 mm Perimeters: 4 Infill: 15 % Gyroid Supports: no Brim: recommended for Spinning_Top_Tip Assembly Screw the selected tip into the bottom of the spinner by hand. For secure fastening, use a 12 mm open-end wrench on the hexagonal section of the tip. Do not overtighten – a snug fit is sufficient for the printed thread. I am looking forward to your Makes! :-) If you like this design, feel free to check out my others here.
