SINGLE PIECE POWERFUL CATAPULT!!

NOT A TOY!!!!

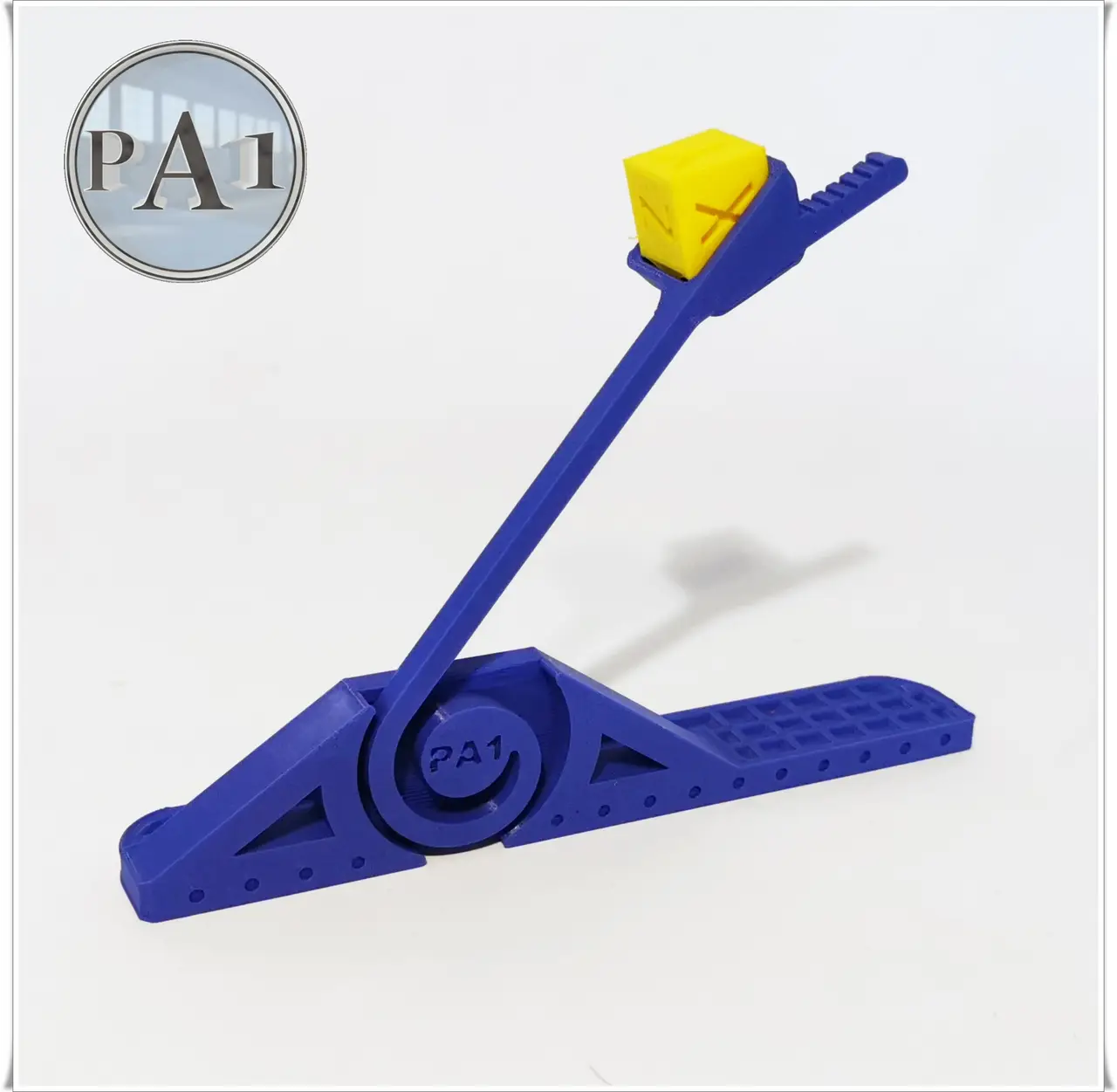

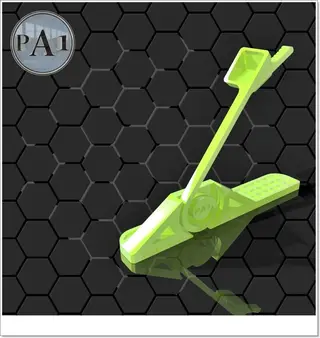

Single piece powerful catapult designed to throw away those calibration cube. Really easy to print, and really powerful. See gif below.

Will shoot a calibration cube over 25-30 feet with no problem if printed 1:1.

Print it with AT LEAST 7 walls. Walls are more important than infill here. a simple 15% infill will do the job but be sure to have enough walls!!!! Also, have your bridging settings on!! No supports needed.

Once done, be careful and do some spring tests progressively. When printed correctly, it will be able to bend all way down, touching the finger plate without breaking.

Take adapted safety measures,. dont aim at anybody and have fun!!

Can be scale without problems. Standard calibration cube (20mm) will fit snuggly in the 1:1 version.

I REPEAT: This is not a toy, and should not be use to shoot at anybody!!!

I was amazed by the power of this little thing while i was doing some print-in-place tests for my future models.

Please, be careful! Not a deadly weapon, but definitely something dangerous if misused. ;)

In action:

via GIPHY
