Simple Indoor Glider V2 — modelo 3D

Simple Indoor Glider V2

por John Doe en Printables

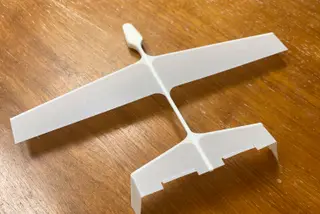

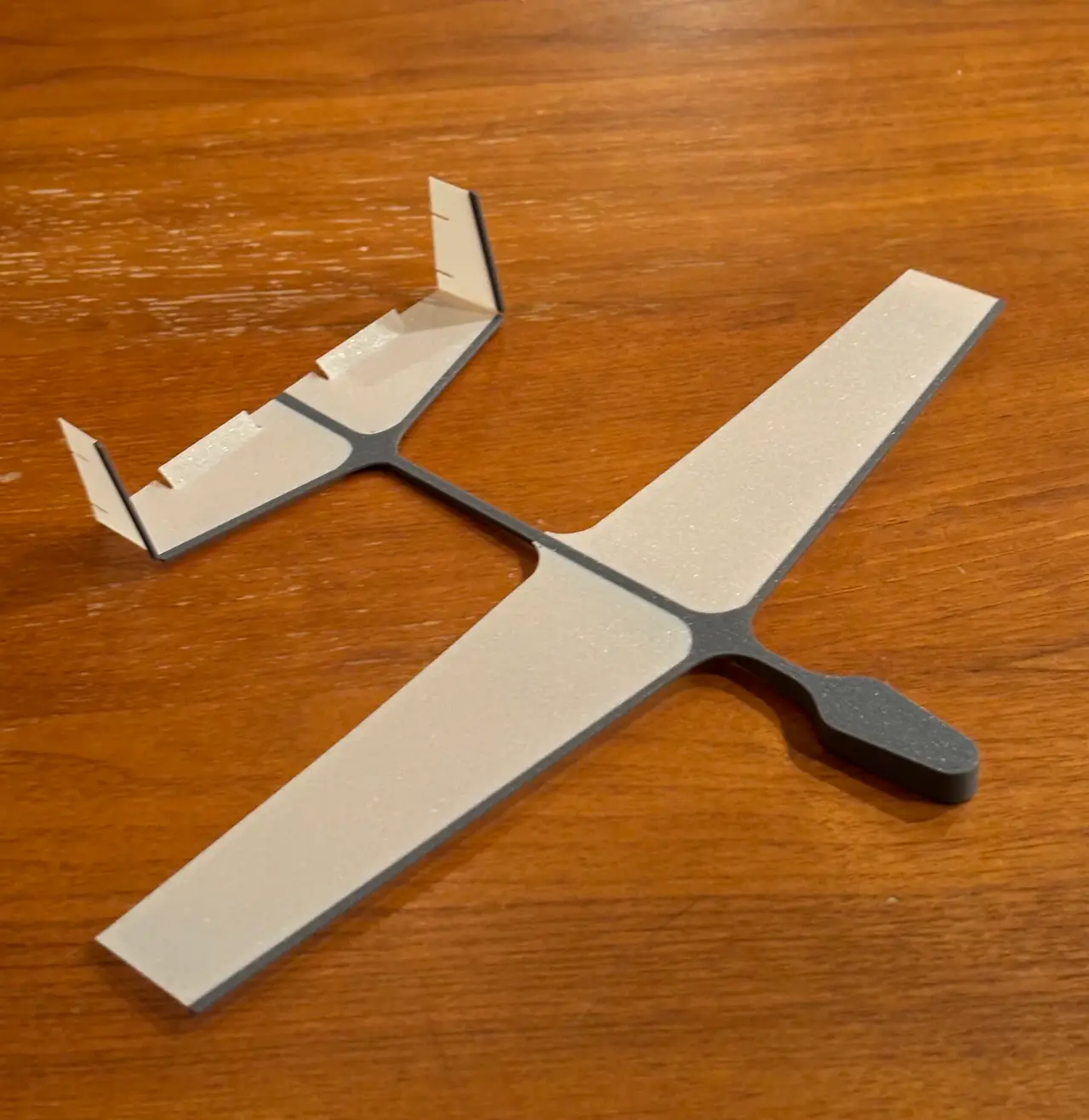

A miniature indoor glider. Fold up tail segments 90 degrees and fold down elevators before using, throw upside down.

Descargar gratis Ver en Printables

Todos los archivos (3) en un ZIP

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a John Doe.

Archivos (3)
Categoría
Juguetes y juegos
Formatos
STL
Descargas
27,237
Publicado

Sobre este modelo

This was printed on the Bambu P1P and printed in 23 minutes(17 minutes of actual printing) with white PLA basic. It used just under 10 grams of filament. Check out the Makerworld profile https://makerworld.com/en/models/83624#profileId-89321 if you're using a Bambu printer because I get more clout from there and you get the 3mf. Instructions- Print in PLA at 100% infill with no brim or raft. Wait for the hotbed to cooldown before gently using a scraper tool to remove the glider. Bend the tail segments up 90 degrees. Bend the elevators down about 25 degrees, and flip over the plane. Hold the glider from just above the wings, and throw lightly. The tail segments should be facing downwards when thrown, and the elevators should be facing up. If the plane seems to lean to one side, try to throw the plane with more power. The design fits on most build plates if positioned diagonally, but if it doesn't fit, print Left Simple Indoor Glider V2 and Right Simple Indoor Glider V2 separately and glue them together with hot glue or a 3d pen. Tape or rubberbands could also work. You can reverse the tail wings if you want the plane to look better and land more smoothly at the cost of slightly worse performance. Just make sure the weight on the front of the plane is facing downwards to increase stability.

Descripción original del autor, publicada en Printables.
