SIDETRACK - Hammer Prime Revolver Blaster
por Mighty Shrub en Printables

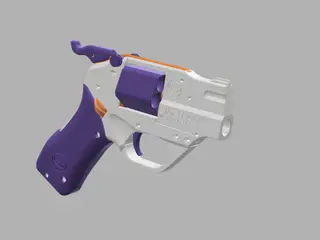

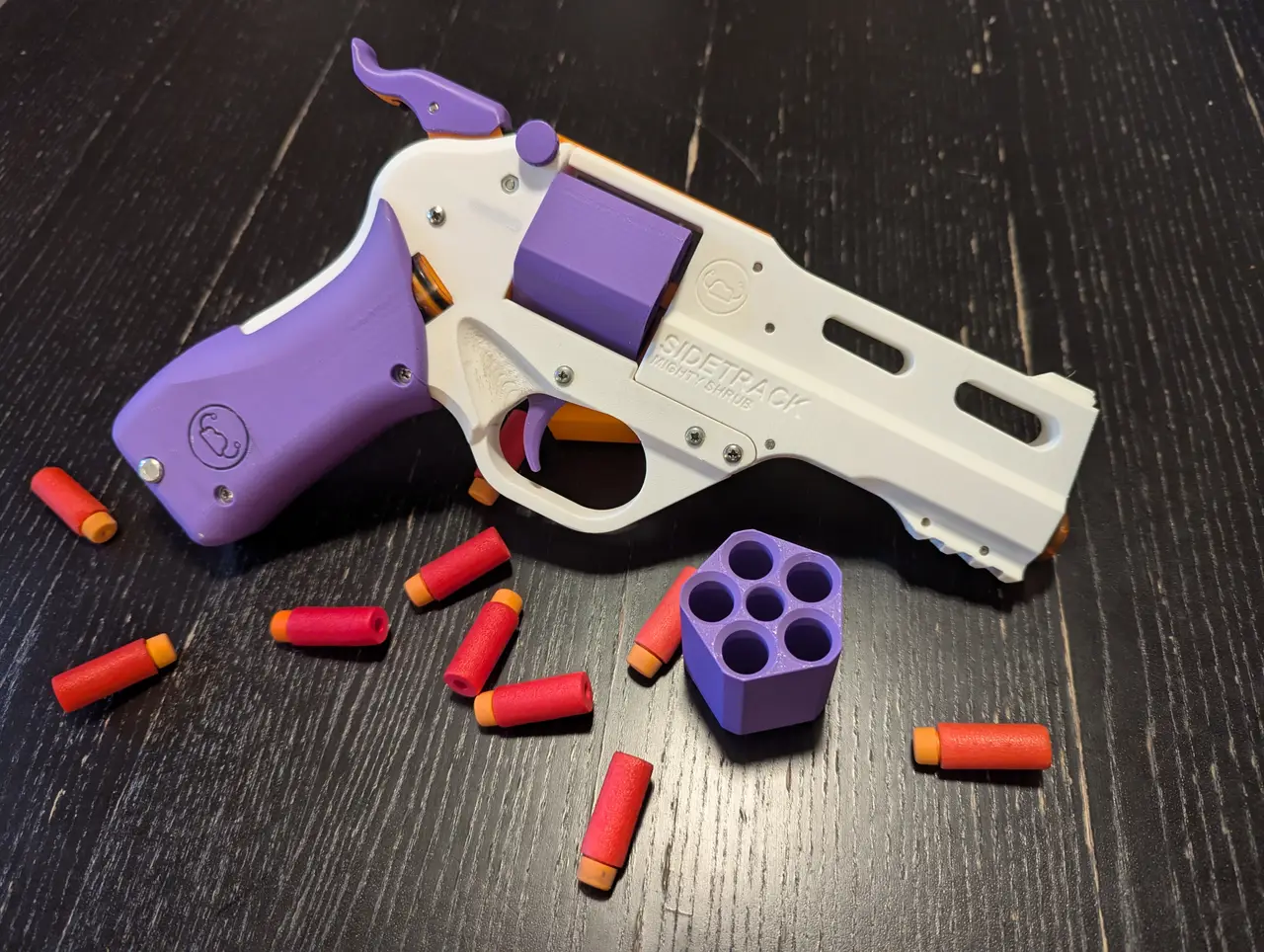

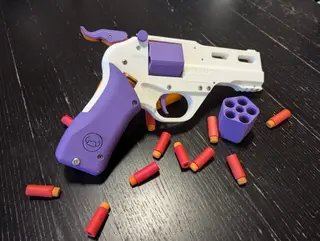

Mighty Shrub X Leedle Dynamics collaboration revolver blaster! A sleek break-action, hammer-prime nerf dart pistol!
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Mighty Shrub.
Archivos (33)
- Sidetrack Sliced Assembly - R1.1 - 20261026.3mf 3MF · 2,8 MB
- Sidetrack STEP Assembly - R1.1 - 20261026.step STEP · 13,3 MB
- Sidetrack_Breech_R1.0.stl STL · 3,0 MB
- Sidetrack_PlungerHead_R1.0.stl STL · 1,9 MB
- Sidetrack_SpringCap_R1.0.stl STL · 341 KB
- Sidetrack_Sear_R1.0.stl STL · 80 KB
- Sidetrack_Trigger_R1.1.stl STL · 387 KB
- Sidetrack_Rotator_R1.0.stl STL · 823 KB
- Sidetrack_HammerCover_R1.0.stl STL · 913 KB
- Sidetrack_HammerLeft_R1.0.stl STL · 305 KB
- Sidetrack_HammerRight_R1.0.stl STL · 483 KB
- Sidetrack_RotatorTransferPin_R1.0.stl STL · 89 KB
- Sidetrack_PrimeBar_R1.0.stl STL · 154 KB
- Sidetrack_Cylinder_R1.0.stl STL · 688 KB
- Sidetrack_LatchLever_R1.0.stl STL · 837 KB
- Sidetrack_L_LatchPeg_R1.0.stl STL · 846 KB
- Sidetrack_R_LatchPeg_R1.0.stl STL · 846 KB
- Sidetrack_Latch_R1.0.stl STL · 82 KB
- Sidetrack_LatchPin_R1.0.stl STL · 65 KB
- Sidetrack_Grip_R1.0.stl STL · 2,1 MB
- Sidetrack_TriggerGuard_R1.0.stl STL · 417 KB
- Sidetrack_FrameRight_R1.0.stl STL · 1,9 MB
- Sidetrack_FrameLeft_R1.0.stl STL · 1,5 MB
- Sidetrack_MuzzleCoreShort_R1.0.stl STL · 266 KB
- Sidetrack_MuzzleShort_R1.0.stl STL · 1,1 MB
- Sidetrack_MuzzleCoreLong_R1.0.stl STL · 232 KB
- Sidetrack_MuzzleLong_R1.0.stl STL · 1,1 MB
- Sidetrack_CylinderPost_R1.0.stl STL · 285 KB
- Sidetrack_BarrelSeal_R1.0.stl STL · 198 KB
- Sidetrack_13.3mmSpringSheath_R1.0.stl STL · 187 KB
- Sidetrack_11.5mmSpringSheath_R1.0.stl STL · 193 KB
- Sidetrack_SpringSpacer_R1.0.stl STL · 123 KB
- Sidetrack_PlungerTubeCutter_R1.0.stl STL · 165 KB
- Categoría
- Juguetes y juegos
- Formatos
- 3MF, STEP, STL
- Descargas
- 853
- Publicado
Sobre este modelo
BUILD GUIDE

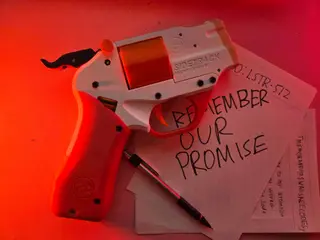

INTRO Remember your promise in a most rootin' tootin' fashion 🤠 Presenting Sidetrack, a break-action hammer-prime revolver! Heavily remixed from the Hammerhead by Leedle Dynamics, the Sidetrack achieves higher performance and consistency with conventional hardware. Also, it looks really cool!!
FEATURES - Hammer prime
- Break action
- Inspired by the Chiappa Rhino / Signalis Einhorn
- Snappy target pistol design
- Sealed barrel
- Cheap, simple hardware
- Toolless spring swapping, with spacers for adjustable performance!
- Reliable performance, tunable between 100-150fps!
- Compatible with Retaliator, Outlaw, and Worker springs!

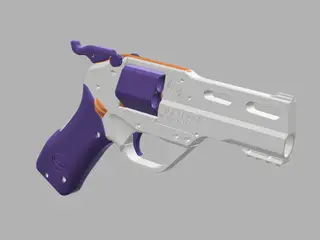

- Quick swap Muzzles
- [HAB KEINE ANGST]
HARDWARE - 55mm of Moose Mod Shop 31k plunger tube - Shipping tube, 1.211" ID, 0.018" wall - McMaster #2044T354
- ALT METRIC: 30.76mm ID, 0.4572mm wall - [I was able to find Cleartec PRT.012-1.215, which is 30.9mm ID and 0.3mm wall]
- 6cm/7cm standard barrel material - 16mm OD, .509" ID
- 6cm for short muzzle, 7cm for long muzzle
- Barrel ID should not be too tight!
- Retaliator Spring, Outlaw Spring, or cut down Worker spring - OD <18.5mm, ID >10mm
- Max length 105mm, min length 65mm
- Tunable with spacers
- 2x dash-913 O-Rings - 1.218" OD , 0.986" ID, 0.116" wall
- ALT METRIC: 31mm OD, 25mm ID, 3mm wall
- 1x dash-110 O-Ring - 9/16" OD, 3/8" ID, 3/32" wall
- ALT METRIC: 9.2mm ID, <2.62mm wall
- 8x M3 nuts
- 7x M3x25 button head screw
- 2x M3x20 screw
- 1x M3x45mm screw - (as long as you can get, it's for the spring cap)
- 4x M3x15 pins - (2x additional for long Muzzle)
Descripción original del autor, publicada en Printables.
