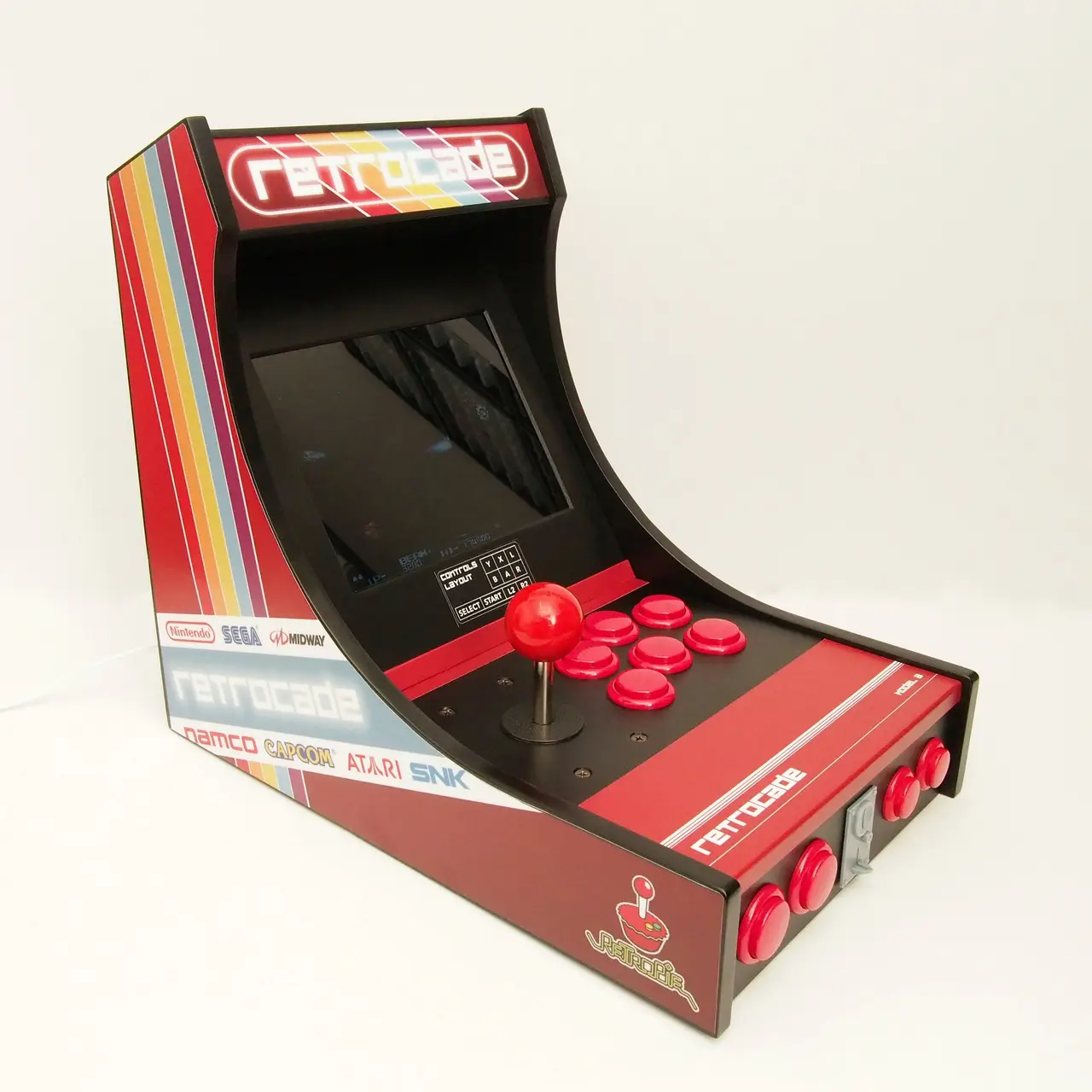

Retrocade - Desktop Arcade Machine + RetroPie
por Christopher Tan en Thingiverse
I grew up in the 80s during the golden age of arcade machines, so I have always wished I had an arcade machine with real arcade joystick + buttons. Now that I have a 3D printer, I thought I should put it to good use and make myself a desktop arcade machine. I used TinkerCAD to do all the 3D...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Christopher Tan.
Archivos (26)
- body_-_back_left.stl STL · 82 KB
- back_panel_-_handle.stl STL · 58 KB
- back_panel_-_powervolume.stl STL · 105 KB
- body_-_front_panel.stl STL · 117 KB
- back_panel_-_lock_key.stl STL · 174 KB
- body_-_top_left.stl STL · 88 KB
- body_-_front_left.stl STL · 127 KB
- body_-_controller_panel.stl STL · 455 KB
- body_-_front_right.stl STL · 130 KB
- body_-_top_right.stl STL · 89 KB
- controller_-_extra_support_x2.stl STL · 2 KB
- back_panel.stl STL · 379 KB
- back_panel_-_usb.stl STL · 31 KB
- display_-_screen_back.stl STL · 21 KB
- display_-_screen_panel.stl STL · 68 KB
- raspberry_pi_standoffs.stl STL · 34 KB
- marquee_-_led_panel_clip.stl STL · 3 KB
- display_-_under_display_fix.stl STL · 4 KB
- body_-_top_tip_x2.stl STL · 8 KB
- body_-_back_right.stl STL · 83 KB
- coin_slot.stl STL · 531 KB
- marquee_-_bottom.stl STL · 421 KB
- marquee_-_top.stl STL · 294 KB
- display_-_driver_board_standoffs.stl STL · 33 KB
- display_-_screen_lock.stl STL · 23 KB
- RetrocadeArtwork.pdf PDF · 3,9 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL, PDF
- Descargas
- 18,407
- Publicado
Sobre este modelo

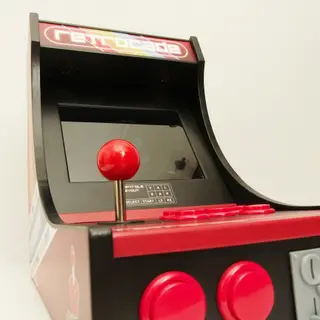

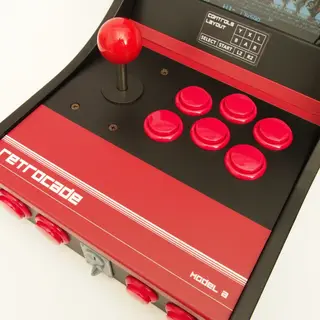

I grew up in the 80s during the golden age of arcade machines, so I have always wished I had an arcade machine with real arcade joystick + buttons. Now that I have a 3D printer, I thought I should put it to good use and make myself a desktop arcade machine. I used TinkerCAD to do all the 3D modelling. Also, I wanted my arcade machine to have a lot of detail, so I also created things like vintage design coin slot and also created artwork which I sent to a commercial printer to have them printed on vinyl sticker. This is not the first 3D printed arcade machine, there are already many around. However, there were certain things which I prefer it to be designed differently. Take for example the palm rest area. I did some testing and found that without sufficient space to rest your palm, you will get tired very quickly. Most of the existing designs I found had this issue, so I made sure my design had a big palm rest. I should note that I actually designed and printed these parts before receiving the actual parts like the LCD screen, controller, speaker, amplifier etc. 3D printing takes quite a lot of time and I didn't want to wait till everything I ordered has arrived in the mail before I started printing. So, some of the parts were designed with some flexibility in terms of how it would be laid out. Also, this was a learning process for me as I am still relatively new to 3D printing, so some parts have gone through many changes as I experimented with the design. I believe all the files I uploaded should be correct, but in case there are any mistakes, do let me know. Please understand that I am sharing these files AS IS. You do need to have a decent knowledge of 3D printing, Raspberry Pi, soldering, etc. in order to put it all together. More detail over here: https://hackaday.io/project/20093-desktop-arcade-machine-3d-printed-retropie
