RC Tank that Prints without Support, Assembles without Hardware and Wires without Soldering

https://www.youtube.com/watch?v=XKXZaKyjVCw - Prints without support! - Assembles without hardware! - Wires without soldering!

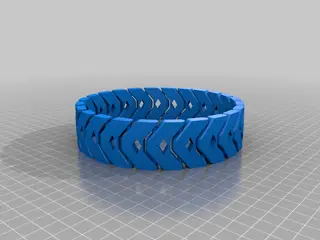

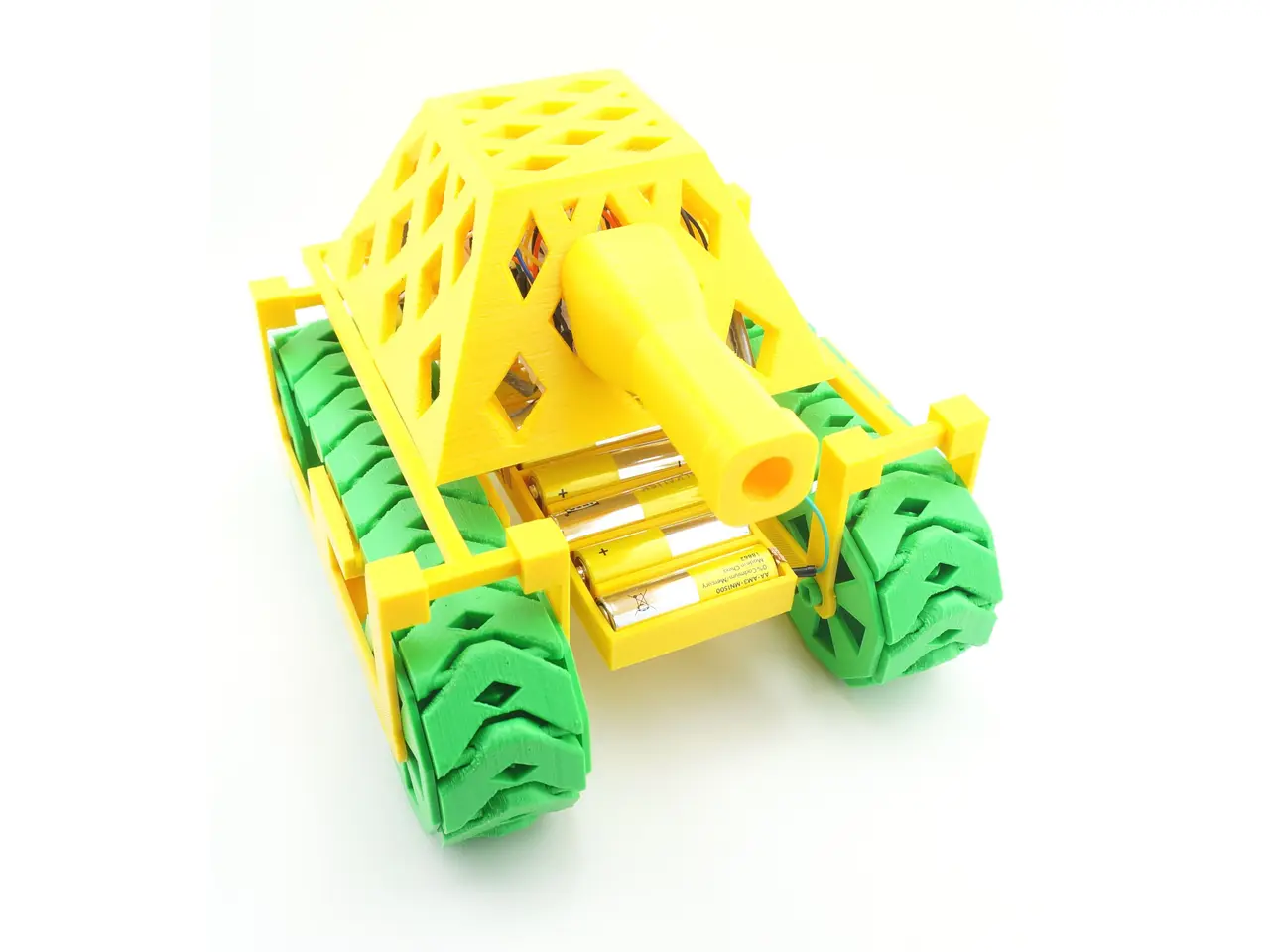

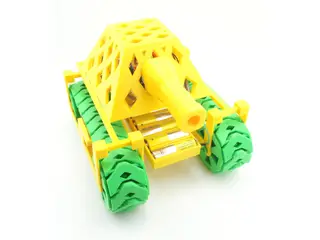

This tank does not require a single bolt or nut. You just print the parts, put them together, connect the motors and electronics, and it's ready for battle. It shows excellent off-road capabilities, and turns on a dime. Each of this tank's two tracks is printed in a single piece, thus eliminating the need for assembly hardware. The machine shown in the video below is powered with a Picaxe 20M2 microcontroller installed on a 300-hole mini-breadboard. There is also an H-bridge motor driver, an IR sensor, a couple of resistors and capacitors, and a whole bunch of jump cables. The entire set of electronic components used here can be bought on eBay for just a few dollars. The tank is operated with a regular Sony TV remote control. Parts: QtyFilenamePrint Time (min.)Total Print Time (min.) 2tank_tracks.stl204408 1tank_left_front_wheel.stl8686 1tank_left_back_wheel.stl7777 1tank_right_front_wheel.stl8686 1tank_right_back_wheel.stl7777 2tank_front_hubcap.stl1020 2tank_back_hubcap.stl1122 1tank_left_outer_rail.stl5151 1tank_left_inner_rail.stl4141 1tank_right_outer_rail.stl5151 1tank_right_inner_rail.stl4141 1tank_frame.stl105105 2tank_motorholder.stl4080 2tank_adapter.stl1020 1tank_batteryholder.stl9191 1tank_cover.stl166166 1tank_cannon.stl6161 Total printed parts: 22 Total print time (approx.): 1,483 min. (24 hours and 43 min.) For detailed and illustrated assembly instructions, please visit http://www.otvinta.com/download10.html. if you like our tank, you may also like our Rubik's Cube Solving Robot:

All our models including this one were designed with Blender 3D. We have created many video tutorials on designing gears and mechanisms in Blender. To see them, please visit our YouTube channel at https://www.youtube.com/c/otvinta3d.
