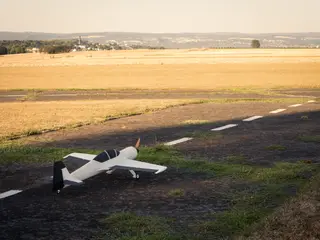

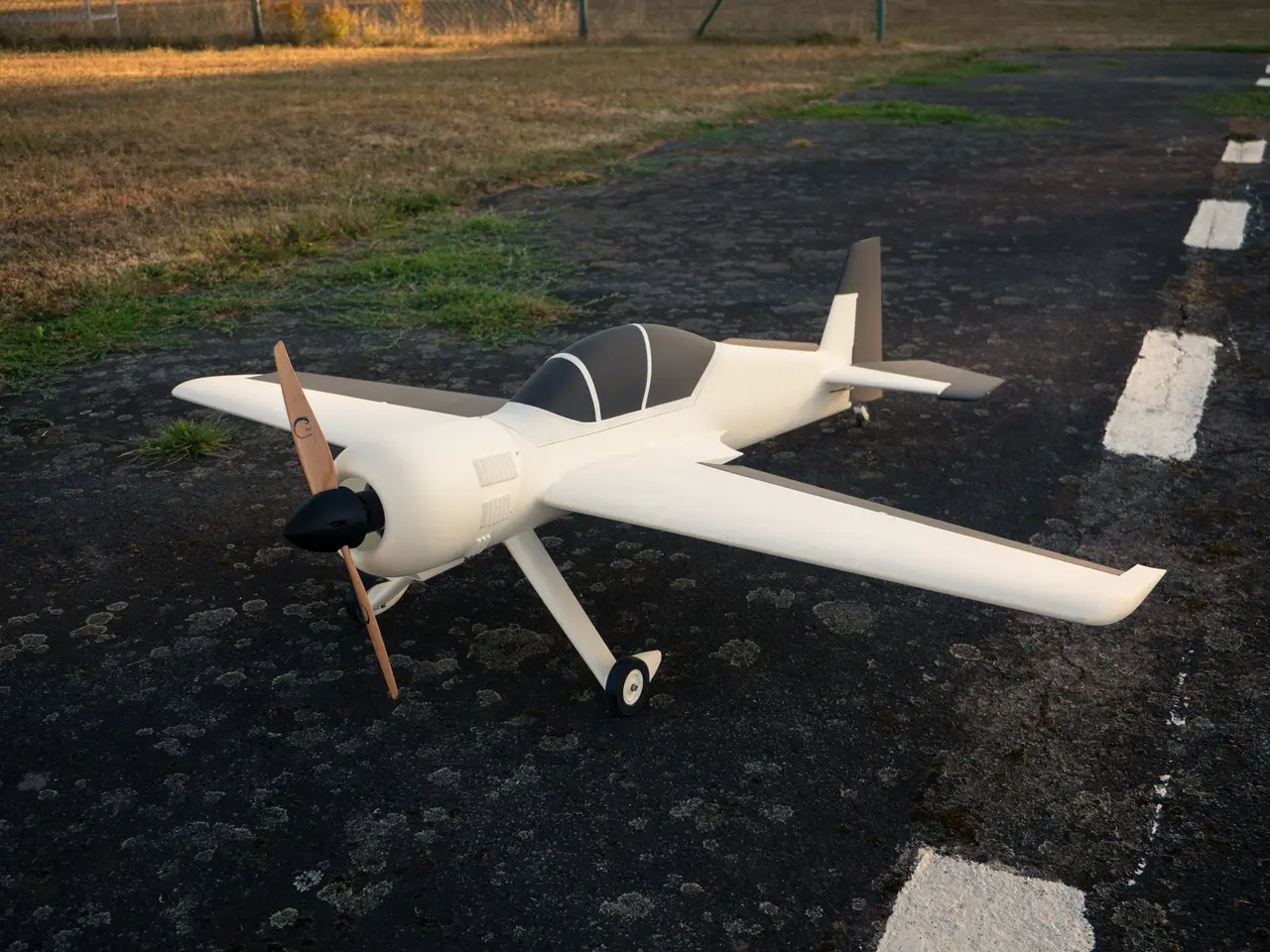

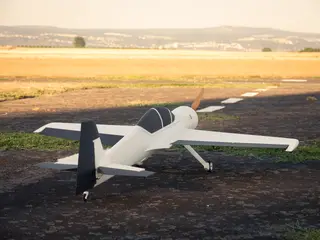

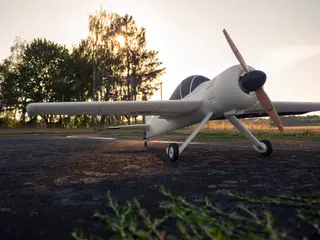

RC Plane – SU-29 1100mm

The SU-29 is perfect to learn 3D aerobatics without the fear of crashing an expensive model. It is a semi scale design with a vast fuselage side area, assuring a perfect knife-edge flight.

The wings are detachable for easy transportation in small cars or while your next vacation trip. Its low weight and wing loading makes it easy to fly in tight spaces.

The design is optimized for vase mode printing.

If you would like to support the project and help to make future projects possible, I would be happy about a donation on PayPal.

Build Video

https://youtu.be/nOp8FZTp3q4

Changelog

02.09.22 – Changed Fuse-2 of the MK3S Files because one of the ribs wouldn't connect properly to the outer shape.

31.08.22 – Added fuselage parts to fit Prusa MK3S Printers

30.08.22 – Added ailerons that fit printers with less than 210 mm Z-Height

22.08.22 – Added missing file Wing-RA2.stl

Settings

CG: 80 mm behind the leading edge of the root

Experienced pilots can shift the center of gravity up to 20 mm further back. It's recommended to use 80 mm for your first flight

Dual rate:

1. Experienced Pilots: 45 deg for vertical and horizontal stabilizers, 40 deg for ailerons

2. First flight/ Standard: 25 deg for vertical and horizontal stabilizers, 20 deg for ailerons, 25% expo

Filament

Fuselage, Wings: LW-PLA

Servo covers, Wheels, Spinner: PLA

Tires: TPU A95

Motor mount: PETG

Bill of Materials

M3 Nuts (6 pcs.)

M3 Washers (2 pcs.)

M3x10mm Hex Screw (4 pcs.)

M3x30mm Hex Screw (2 pcs.)

Collar for M3 Screws (2 pcs.)

Push rod Connector 2 mm (4 pcs.)

1.6x4mm Self tapping screw (10 pcs.)
