Ray Gun from Black Ops SOME CODE INCLUDED
por ChrisKrieg en Thingiverse
Ray Gun from Nazi Zombies in Call of Duty: Black Ops. Now ready to accept electronics to become a fully functional prop! I used some blueprints that I found online to scale the model. It feels quite comfortable in the hand. Supplies: - Epoxy - Two small magnets - Some wire - Clamps or some weights..
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a ChrisKrieg.
Archivos (15)
- Battery.stl STL · 46 KB
- Barrel.stl STL · 620 KB
- Chamber_L.stl STL · 161 KB
- Chamber_R.stl STL · 153 KB
- Chamber_Stop_L.stl STL · 8 KB
- Chamber_Stop_R.stl STL · 8 KB
- Grip_L_Cut.stl STL · 88 KB
- Grip_R_Cut.stl STL · 100 KB
- Power_L.stl STL · 944 KB
- Power_R.stl STL · 904 KB
- Emitter.stl STL · 172 KB
- Small_Parts.stl STL · 1,5 MB
- Pipe.stl STL · 193 KB
- Ray_Gun_Fire_2-18-16_Running.zip ZIP · 2 KB

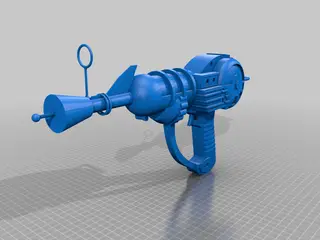

- Full_Assembly.stl STL · 1,3 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL, ZIP
- Descargas
- 29,456
- Publicado
Sobre este modelo

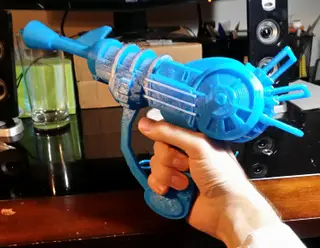

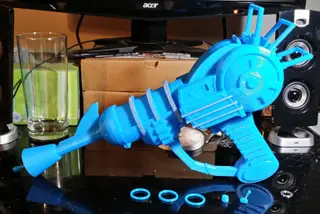

Ray Gun from Nazi Zombies in Call of Duty: Black Ops. Now ready to accept electronics to become a fully functional prop! I used some blueprints that I found online to scale the model. It feels quite comfortable in the hand. Supplies: - Epoxy - Two small magnets - Some wire - Clamps or some weights (cans of soda work too) - Wax paper - Flat surface
Hardware: - 4x M3x10mm Socket Head Cap Screws - 2x M3x16mm SHCS (for hinge and trigger) - 6x M3 Nuts - 6x M3 Washers - 1x M3 Threaded Insert Worth it to have 99 extra for other projects.
Electronics: - A 3.3V Microcontroller with at least 5 pins for data - A Battery Charge Circuit for your MCU - Adafruit Audio FX Mini Board - Adafruit Mono 2.5W Amp - Mini Metal Speaker - LiPo 1S Battery that will fit - 6 or more WS2812B LEDs on Individual Pads - Servo wire for those LEDs - 2 Small pushbuttons. - SPDT Switch - Rotary Encoder (aesthetic, optional) - Encoder Knob (aesthetic, optional) - Tiny extension spring (I found one in an old tapedeck at Goodwill) or small rubber bands.
Descripción original del autor, publicada en Thingiverse.
