Printed Barrels - 3 Variants - SIGNET v3 Blaster - Muzzle - Nerf

3D-printable barrels specifically for the SIGNET v3 Blaster.

🟪🟪🟪 3 Variants Available

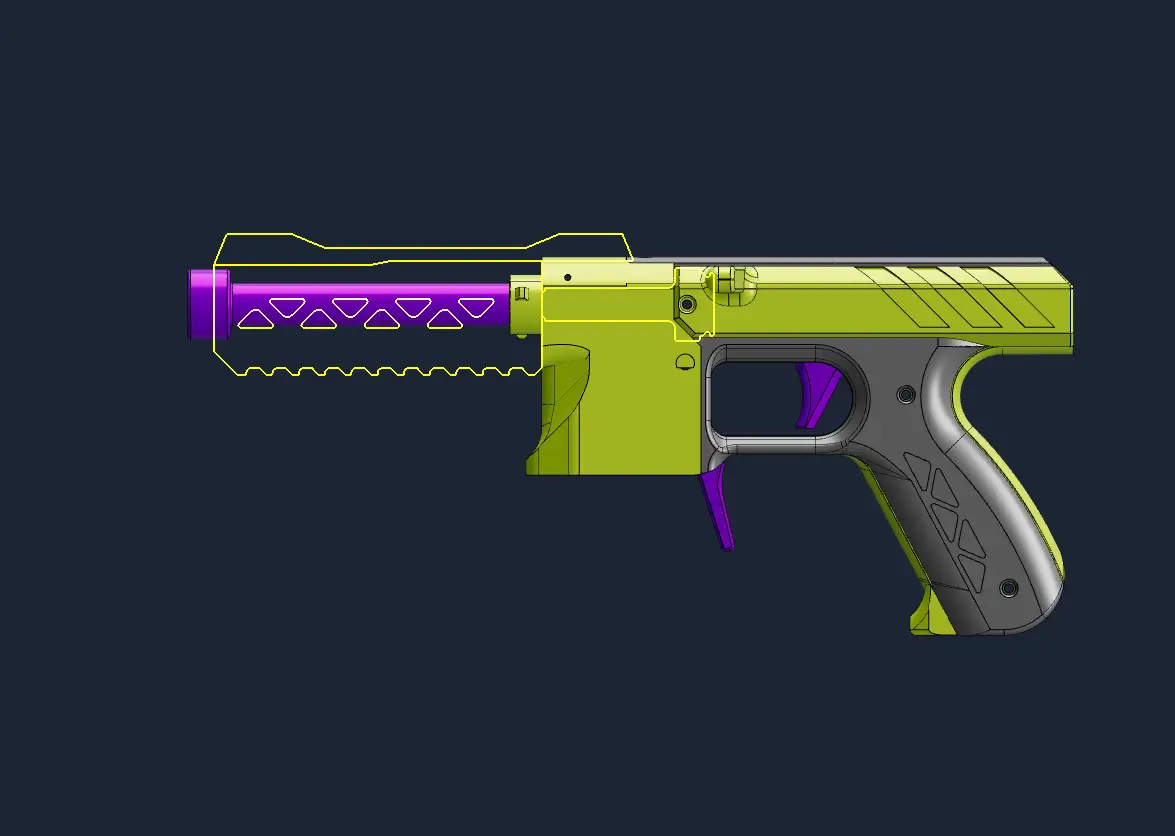

🟪 Extended 100+38mm Barrel + MUZZLE: The muzzle of the 100+38mm variant protrudes 10mm at the front of the handguard and can therefore be used as a coloured (e.g. orange) muzzle. 🔸 16mm outer diameter 🔸 100mm barrel segment with 13mm inner diameter 🔸 +38mm faux barrel segment with 13.6mm inner diameter

🟪 Extended 100+28mm Barrel: The 100+28mm variant ends flush with the front of the handguard for a clean look. 🔸 16mm outer diameter 🔸 100mm barrel segment with 13mm inner diameter 🔸 +28mm faux barrel segment with 13.6mm inner diameter.

🟪 Standard 100mm Barrel: 🔸 16mm outer diameter 🔸 100mm barrel with 13mm inner diameter

Lightly sand the inside of the printed barrel with a rolled-up piece of sandpaper.

----------------------------------------------------------------------------------------------------------------------------- The files are already pre-oriented. My print settings for PLA: 0.2 mm layer height 5 walls 20% gyroid or cubic infill 7 top and bottom shell layers Wall Generator: Arachne Scarf Seams

NO supports needed Use an outer brim if you have poor print bed adhesion! 🧩 Check out my SIGNET v3 Collection: Find all my matching mods for the SIGNET v3 in one place Thanks to Acorn Armaments for the files I could use to measure the dimensions. (This isn’t actually a remix, but I’ve labelled it as such so that it’s easier to find and also appears amongst the blaster files in the remix section)
