Print-in-Place Chess Set with Captive Pieces
por DaveMakesStuff en Thangs
This print-in-place chess set prints with board and all 32 pieces in a single print.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a DaveMakesStuff.
Archivos (8)
- Full Board with Pieces.stl STL · 23,7 MB
- Full Board No Pieces.stl STL · 7,8 MB
- Bishop on Pedestal.stl STL · 625 KB
- King on Pedestal.stl STL · 493 KB
- Knight on Pedestal.stl STL · 450 KB
- Pawn on Pedestal.stl STL · 677 KB
- Queen on Pedestal.stl STL · 530 KB
- Rook on Pedestal.stl STL · 302 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 410
- Publicado
Sobre este modelo

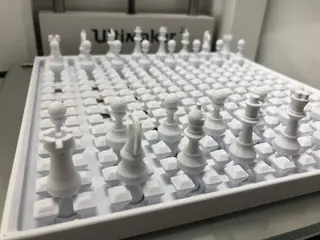

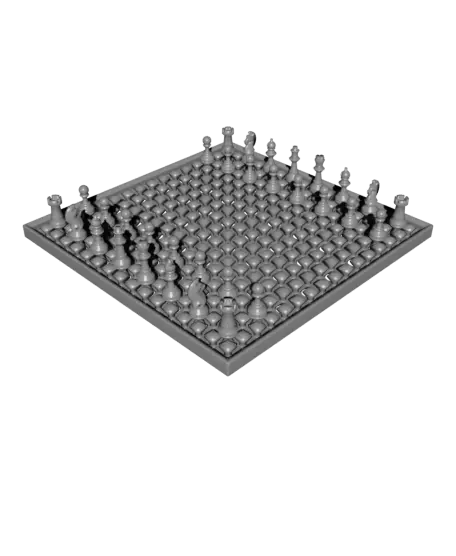

This print-in-place chess set prints with board and all 32 pieces in a single print.

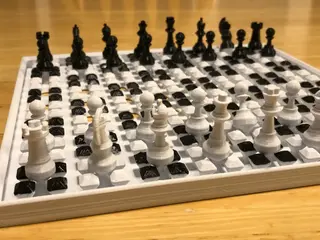

The pieces are separate objects but are held captive within the board and move along notches during game play. Because the pieces are held captive, the board could be used as a travel chess set.
Use paint to darken the appropriate square and pieces. The pieces can be removed and reinserted by pushing against the back of the board to splay the notches apart.

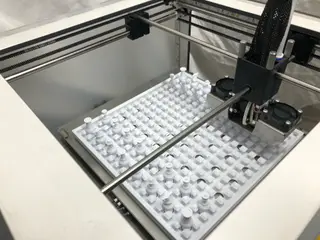

The board is 204.2 mm square. The bottom is thin to reduce material, so you’ll need to monitor the first layer closely and restart if there are any errors. The build plate needs to be perfectly level and calibrated.

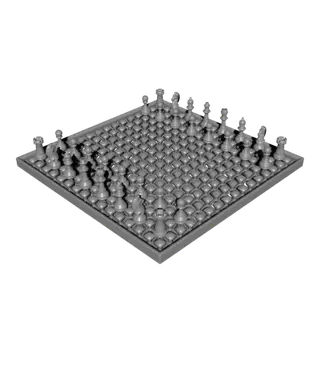

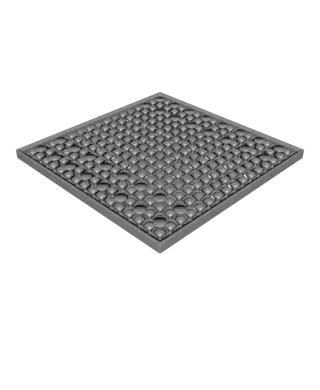

Files include the full board and pieces, separate pieces in case you need to replace any, and a board structure without pieces if you want to add your own.
Descripción original del autor, publicada en Thangs.
