Polyhedral Dice Set - D4, D6, D8, D12, D20 with Cut-In Numbers, No Supports (OpenSCAD) — modelo 3D

Polyhedral Dice Set - D4, D6, D8, D12, D20 with Cut-In Numbers, No Supports (OpenSCAD)

por Arthur Both en Printables

A tabletop dice set, D4 to D20, each printing on a face with the numbers cut into every side.

Descargar gratis Ver en Printables

Todos los archivos (3) en un ZIP

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Arthur Both.

Archivos (3)
Categoría
Juguetes y juegos
Formatos
STL, SCAD, 3MF
Descargas
3
Publicado

Sobre este modelo

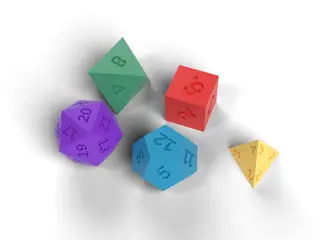

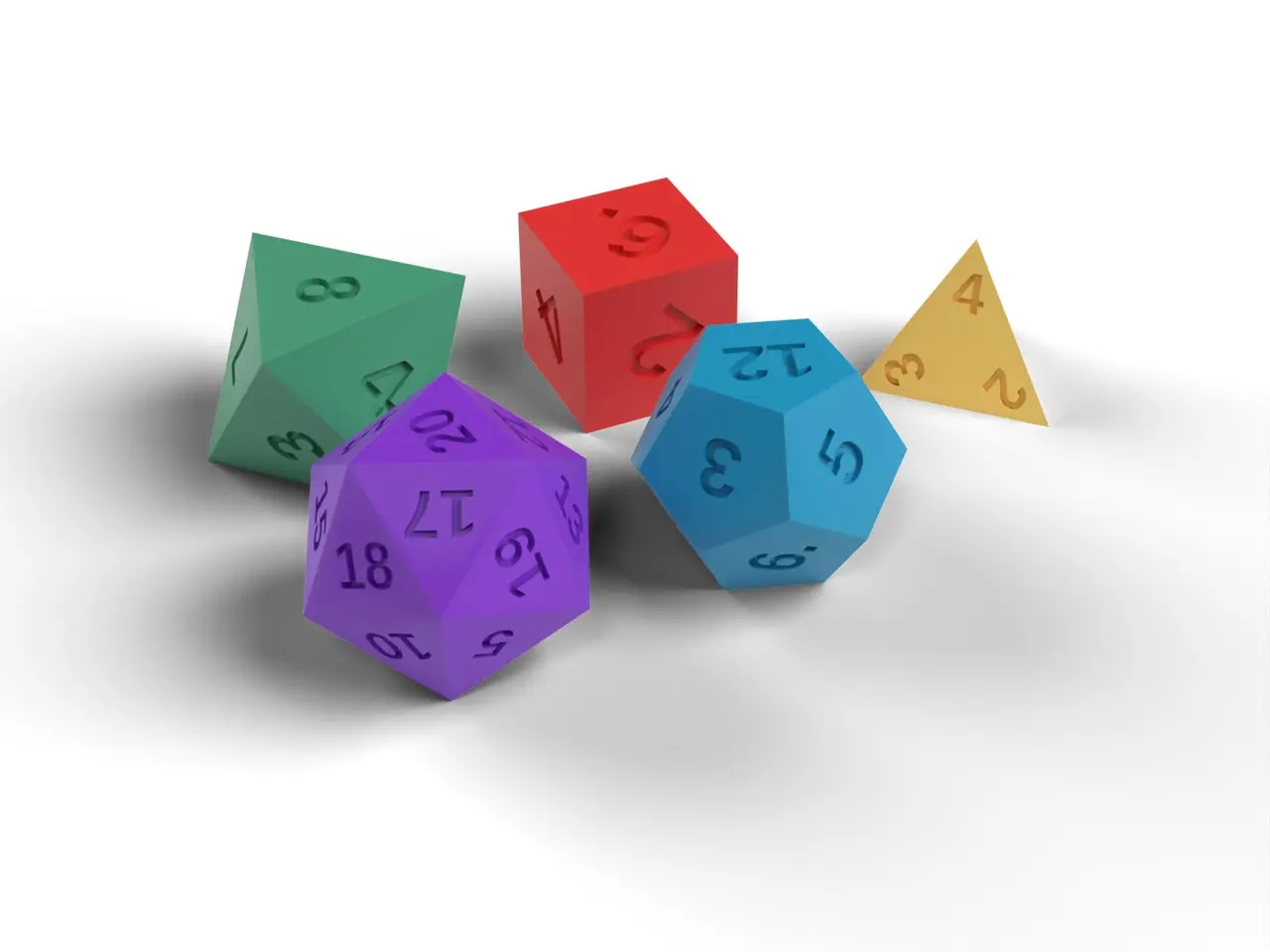

A set of five dice for tabletop games: D4, D6, D8, D12 and D20. The numbers are cut into every face, opposite faces add up to N+1 like real dice, and 6 and 9 have a dot. The D4 reads from the top corner. DETAILS • Sizes: D20 22 mm, D12 20 mm, D8 18 mm, D6 16 mm, D4 24 mm. No D10 in this set. • Each die prints lying on a face with no supports. The steepest overhang is the D20's lower faces at 48 degrees. On faces that print facing down, the numbers stand upright with a thin bridge through each digit so nothing hangs in the air. • Bambu Studio: 39 min, 11 g for the set. • Print with 100% infill so they roll fair, and paint or wax the numbers for contrast. CUSTOMIZE (OpenSCAD) Engraving depth and the size of the whole set. Designed with AI assistance (OpenSCAD). Rendered images; not printed or roll-tested yet.

Descripción original del autor, publicada en Printables.
