Open Chess - Smart Chess Board
Print. Click. Play.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Kevin C.
Archivos (23)
- Piece - King.3mf 3MF · 122 KB
- Piece - Knight.3mf 3MF · 185 KB
- Piece - Queen.3mf 3MF · 124 KB
- Piece - Bishop.3mf 3MF · 714 KB
- Piece - Rook.3mf 3MF · 153 KB
- Piece - Pawn.3mf 3MF · 435 KB

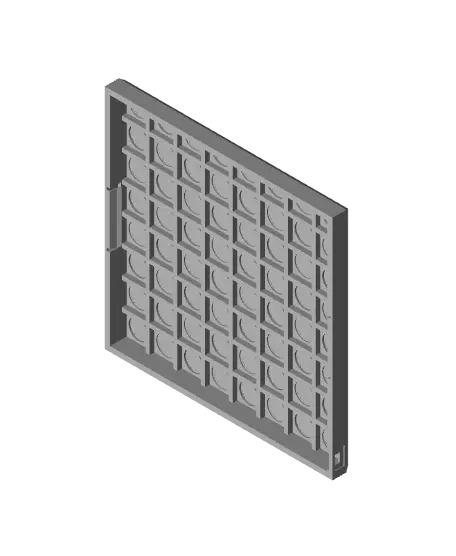

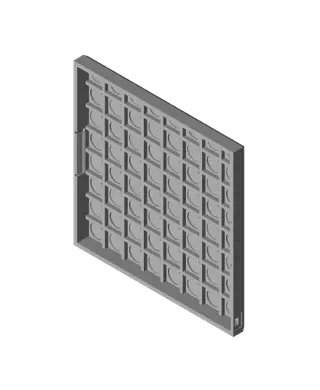

- Chess board - Chess Board.stl STL · 1,4 MB
- King-8x2.stl STL · 764 KB
- Knight-8x2.stl STL · 845 KB
- Bishop-8x2.stl STL · 608 KB
- Queen-8x2.stl STL · 1,0 MB
- Rook-8x2.stl STL · 857 KB
- Pawn-8x2.stl STL · 542 KB
- King-10x2.stl STL · 765 KB
- Queen-10x2.stl STL · 1,0 MB
- Knight-10x2.stl STL · 846 KB
- Bishop-10x2.stl STL · 609 KB
- Rook-10x2.stl STL · 856 KB
- Pawn-10x2.stl STL · 543 KB
- Chess board - Bottom (6).3mf 3MF · 27 KB
- Chess board - V2.3mf 3MF · 566 KB
- Chess board - Bottom V2.3mf 3MF · 28 KB
- Chess Board Build Manual.pdf PDF
- Categoría
- Juguetes y juegos
- Formatos
- 3MF, STL, PDF
- Descargas
- 940
- Publicado
Sobre este modelo

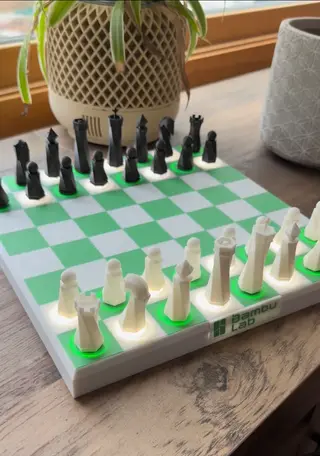

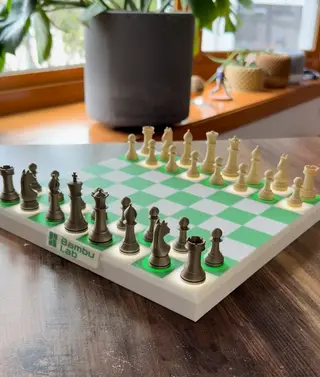

Print. Click. Play. OpenChess is a fully open source smart chessboard designed to make interactive, intelligent gameplay accessible to everyone. By combining low-cost electronics, 3D printing, and customizable software, OpenChess empowers makers, educators, and chess lovers to build their own connected chess experience — without the high price tag.
💡 Why OpenChess?
Most smart chessboards are expensive and closed-source. OpenChess changes that. It’s built from the ground up to be:
Affordable – Uses a custom PCB with embedded magnetic sensors and LEDs for real-time move detection and feedback.
DIY-Friendly – Print your own board, your own pieces, and assemble everything at home.
Programmable – Based on Arduino, you can customize behavior, create new game modes, or build learning tools and challenges.
Modular & Open – Everything is open source. Remix the board, design your own pieces, or upgrade the electronics however you want.
🔧 What You’ll Need:
OpenChess PCB – Detects pieces and lights up squares.
https://concept-bytes.com/products/openchess-pcb?variant=50601021833517
Or make your own! Gerbers are attached below! Just send them to JLCPCB!
Arduino Nano ESP32/RP2040/33IOT – Controls the logic and communication.
https://www.stemsolutionsmart.com/products/arduino-nano-rp2040-connect
3D Printed Board & Pieces – Print everything from scratch or customize it to your style.
Attached below or over at Maker world and Thangs!
https://makerworld.com/en/models/1256302-openchess-smart-chess-board#profileId-1279762
Whether you’re building a smart chessboard for your classroom, designing a game with custom rules, or just want a cool weekend project — OpenChess puts the power in your hands.
🎓 Print it. Click it. Play it. Welcome to the future of chess
