ONYX Pro - Official Chess Pieces
por Michalsky en Printables
Official chess pieces designed for the 40mm square board of the ONYX-Pro - Autonomous Chess Robot
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Michalsky.
Archivos (3)
- Categoría
- Juguetes y juegos
- Formatos
- 3MF
- Descargas
- 1
- Publicado
Sobre este modelo

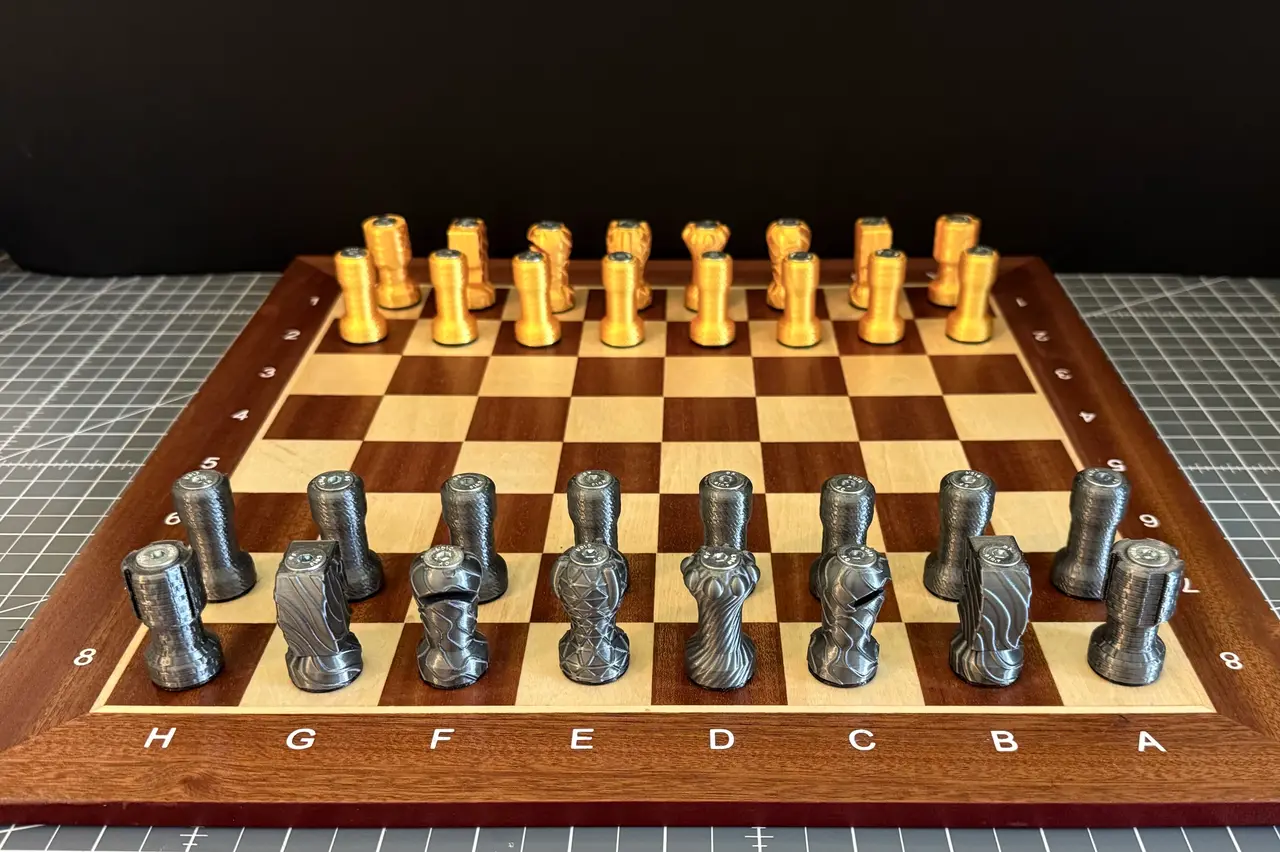

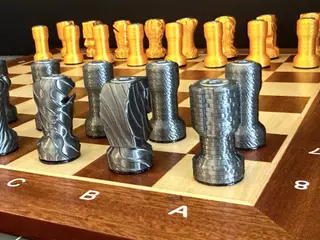

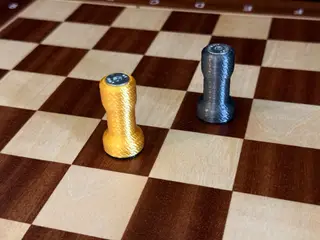

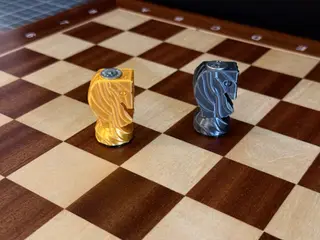

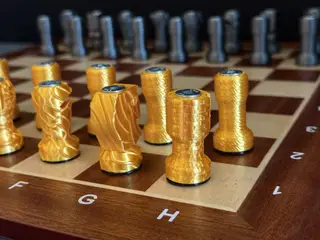

🤖♟ ONYX Pro - Official Chess Pieces Designed specifically to fit the ONYX-Pro Autonomous Chess Robot system for 40mm square size Board. The pieces are equipped with a TPU85 base to prevent damage to the chessboard and to keep the pieces from slipping. They are 3D printed in PLA Silk+. They feature a bottom recess designed for an 8mm diameter x 3mm height neodymium magnet, as well as a vertical hole along the axis for an M6x30 countersunk screw. ⚠ Note: The screw is not stainless steel (A2 or A4), but a magnetic carbon steel screw DIN 7991 or ISO 10642. ONYX-Pro is an ambitious, fully autonomous chess robot combining 3D printing, mechanical engineering, custom electronics, embedded programming, and AI.
Descripción original del autor, publicada en Printables.
