Nintendo Switch Arcade Cabinet
por Luke en Thingiverse

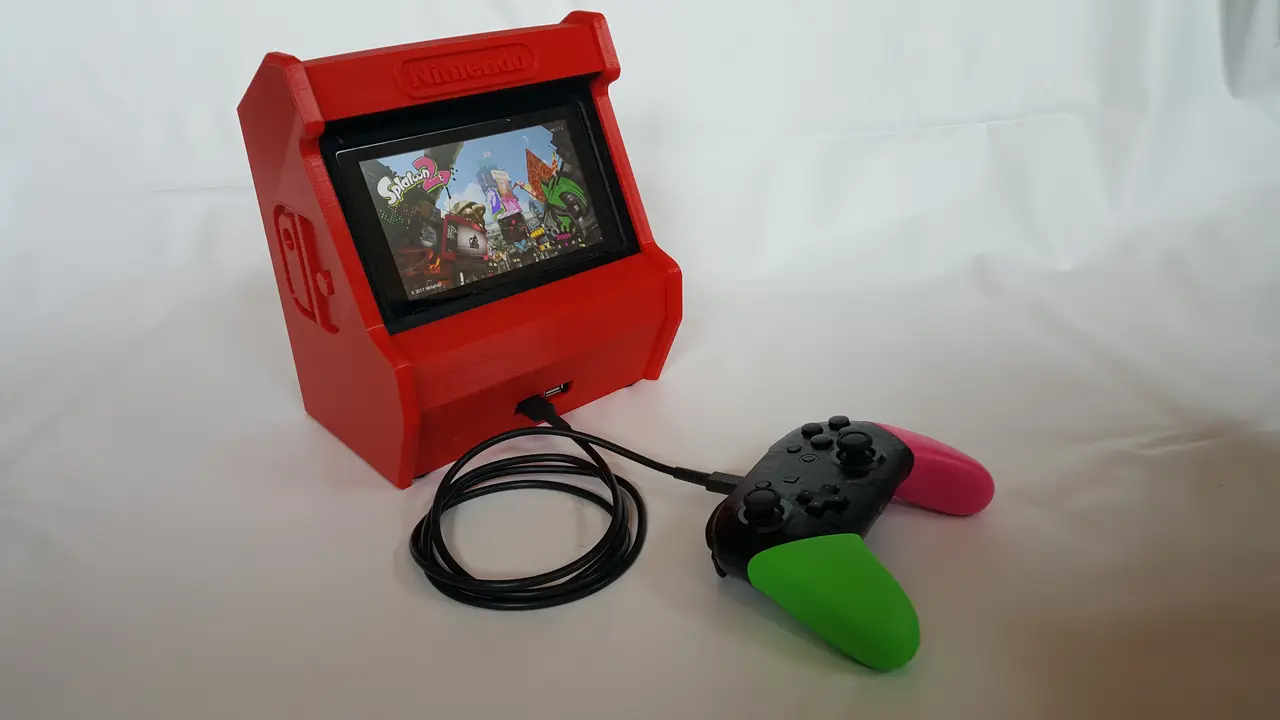

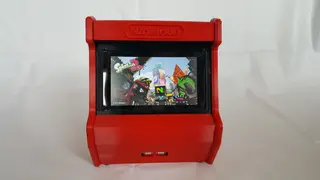

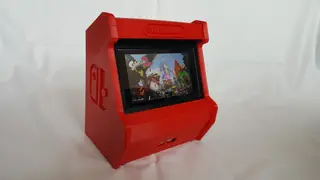

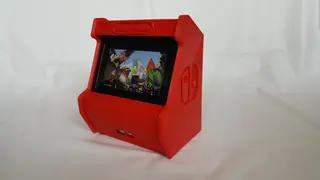

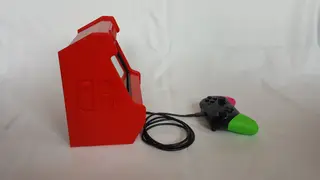

A stand for the Nintendo Switch in the form of a miniature arcade cabinet. Bond all components EXCEPT the Top. The Top is made to slide on/off in order to insert/remove the Nintendo Switch Console. For one cabinet, one of each of the following is required: -Top -Simple Bottom and Front -Simple...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Luke.
Archivos (16)
- FillerSwitch_Arcade_Cabinet.STL STL · 2 KB
- Right_SideSwitch_Arcade_Cabinet.STL STL · 348 KB
- Left_SideSwitch_Arcade_Cabinet.STL STL · 348 KB
- TopSwitch_Arcade_Cabinet.STL STL · 1,1 MB
- Simple_Bottom_and_FrontSwitch_Arcade_Cabinet.STL STL · 143 KB
- Simple_CradleSwitch_Arcade_Cabinet.STL STL · 137 KB
- Simple_BackSwitch_Arcade_Cabinet.STL STL · 3 KB
- Cut_Bottom_Left_SideSwitch_Arcade_Cabinet.STL STL · 255 KB
- Cut_Bottom_Right_SideSwitch_Arcade_Cabinet.STL STL · 265 KB
- Cut_Top_Left_SideSwitch_Arcade_Cabinet.STL STL · 481 KB
- Cut_Top_Right_SideSwitch_Arcade_Cabinet.STL STL · 480 KB
- Elbow_RetainerSwitch_Arcade_Cabinet.STL STL · 5 KB
- Bottom_and_FrontSwitch_Arcade_Cabinet.STL STL · 156 KB
- CradleSwitch_Arcade_Cabinet.STL STL · 263 KB
- BackSwitch_Arcade_Cabinet.STL STL · 427 KB
- Fan_DuctSwitch_Arcade_Cabinet.STL STL · 406 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 38,791
- Publicado
Sobre este modelo
A stand for the Nintendo Switch in the form of a miniature arcade cabinet. Bond all components EXCEPT the Top. The Top is made to slide on/off in order to insert/remove the Nintendo Switch Console. For one cabinet, one of each of the following is required: -Top -Simple Bottom and Front -Simple Cradle -Simple Back -Left Side -Right Side -Filler I have received feedback that for some versions of the Switch firmware, the hub components did not work as intended, but I have also seen comments stating that as of ver. 7.0.0, there is not a problem. Some have voiced their concerns about third-party devices bricking Switch consoles, though I have not heard of that happening with this system. Use the hub components at your own discretion For one cabinet with electronic components for charging, one of each of the following is required: -Top -Bottom and Front -Cradle -Back -Left Side -Right Side -Filler -Elbow Retainer -Fan Duct (optional) The electronic components used: -USB C Male to Female Adapter, Right & Left Angled 90 Degree -Seadream Panel Mount Dual USB 2.0 Extension Cable -AC Infinity 80mm USB Fan -LENTION 4-in-1 USB-C Hub -Panel Mount USB-C Extension Cable
Descripción original del autor, publicada en Thingiverse.
