Planetary Gear Fidget – Print-in-Place
por GiantBrain en Printables
Print-in-place planetary gear fidget in three designs. No supports or assembly: print, release the gears and spin.
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a GiantBrain.
Archivos (4)
- Categoría
- Juguetes y juegos
- Formatos
- STL, GCODE
- Descargas
- 9,763
- Publicado
Sobre este modelo
Print. Release. Spin. A print-in-place planetary gear fidget with visible moving gears and a sculpted outer ring. Choose from three designs, gently free the gears after printing and start spinning. - Print in place: no assembly or extra hardware.
- No supports: print the complete mechanism together.
- Three designs: solid gears, a center hole or holes throughout.
Choose your version
- Plain: solid center and planet gears. File: Plane Design.
- Center Hole: an opening through the center gear. File: Middle Hole Design.
- Holes All Over: openings through the center and all six planet gears. File: Holes All Over Design.

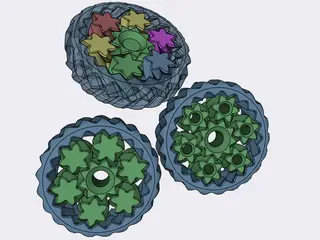

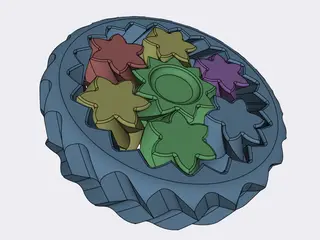

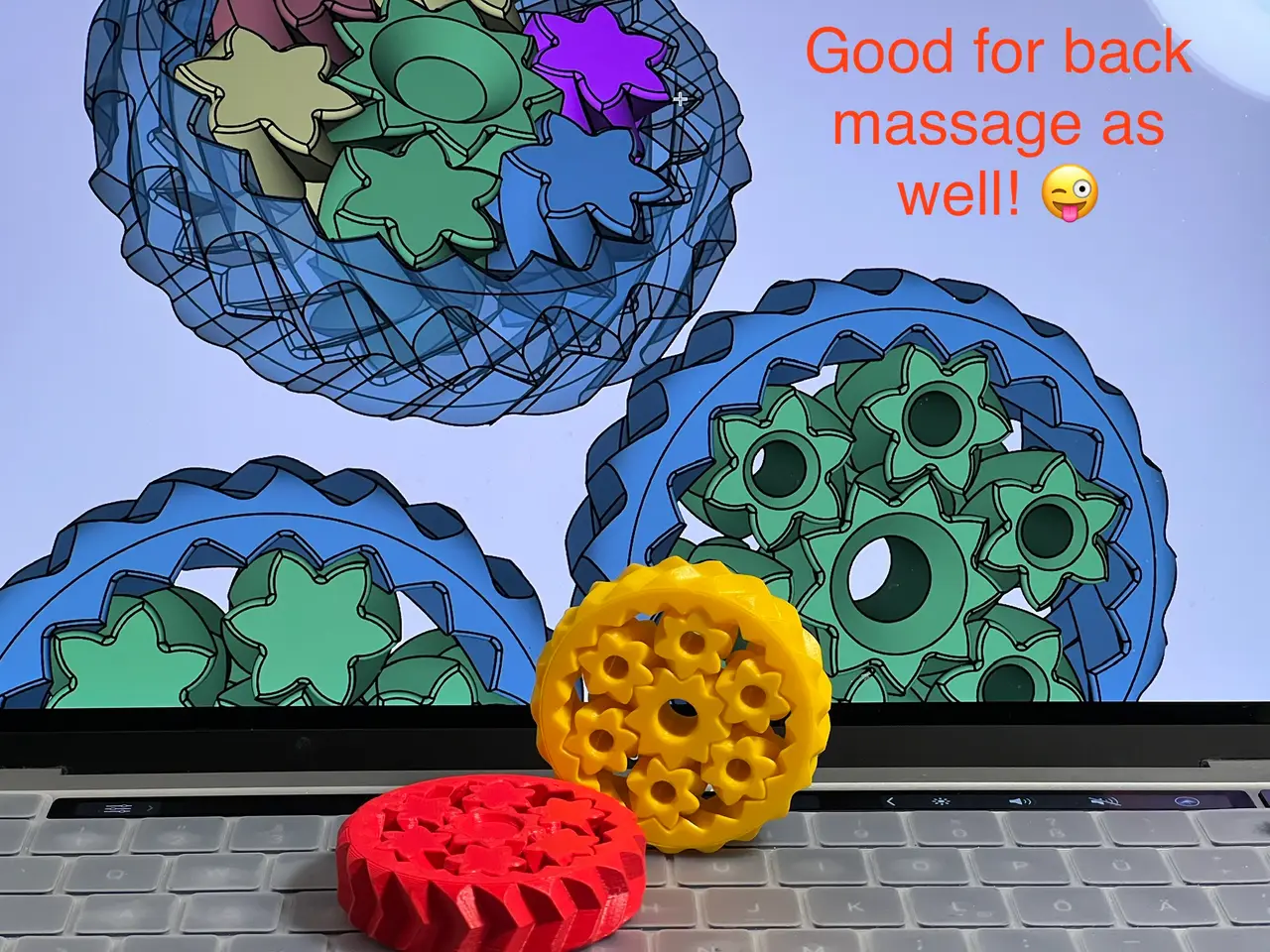

The title photo shows Holes All Over. The comparison uses CAD views; the colors and transparent ring illustrate the geometry. Printing - Layer height: 0.20 mm
- Infill: 15%
- Supports: none
- Material: PLA or PETG, as used for the original model.
The supplied G-code is for Plain, Prusa MK3S, PLA and a 0.4 mm nozzle, with 2 perimeters. Its estimate is 2 h 24 min / 18.9 g. For other printers, materials or variants, slice the STL with your own profile. First spin - Print: let the print cool and remove it from the bed.
- Release: gently move the gears back and forth with your fingers until they loosen. Initial resistance is normal; do not force them.
- Spin: turn the gears and enjoy the motion.
Deutsche Kurzanleitung Ein Print-in-Place-Zahnrad-Fidget ohne Montage und zusätzliche Bauteile. Plain hat geschlossene Zahnräder, Center Hole eine Öffnung im mittleren Zahnrad und Holes All Over Öffnungen in allen sieben Zahnrädern. Die Dateien heißen entsprechend Plane Design, Middle Hole Design und Holes All Over Design. Druck: 0,20 mm Schichthöhe, 15 % Infill, keine Stützen; PLA oder PETG. Der vorhandene G-Code gilt für Plain auf dem Prusa MK3S mit PLA, 0,4-mm-Düse und 2 Perimetern (Schätzung: 2 h 24 min / 18,9 g). Für andere Drucker, Materialien oder Varianten die STL selbst slicen. Benutzung: abkühlen lassen, vom Druckbett lösen und die Zahnräder vorsichtig mit den Fingern hin- und herbewegen, bis sie frei laufen. Anfänglicher Widerstand ist normal; nicht mit Gewalt drehen. Design notes Independently modeled by GiantBrain, inspired by the Herringbone Planetary Gear by Prusa Research. Printed one? Share a Make and show your color choice! GiantBrain · CC BY-NC-ND 4.0
