Mr. Rockboto: the Benchmark Bot
These files are for Personal Use Only. If you would like a Commercial License to sell prints made from these designs, please join me on Patreon: https://www.patreon.com/kazitoad
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a Kazi T.
Archivos (1)
- Mr_Rockboto_KaziToad.stl STL · 15,6 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 307
- Publicado
Sobre este modelo
These files are for Personal Use Only. If you would like a Commercial License to sell prints made from these designs, please join me on Patreon: https://www.patreon.com/kazitoad

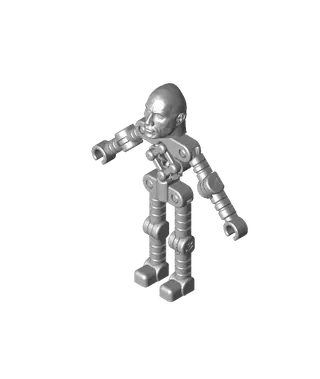

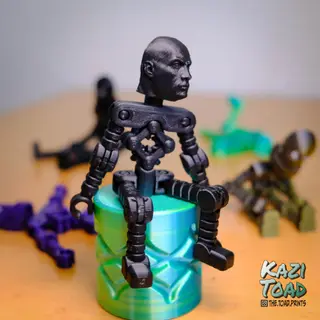

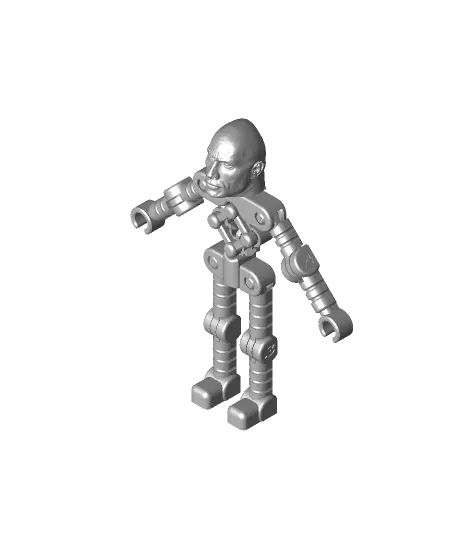

Mr. Rockboto is not only a fun print-in-place figure but it is also a very useful calibration tool.
He has 14 functional joints with different orientations, couplings, and tolerances. The tolerances range from 0.2 - 0.5mm and allow you to test the minimum clearances your printer can produce and still achieve print-in-place movement.
Each limb is labeled with the tolerances of their joints and all other joints have a 0.3mm tolerance. It might take a little (just a little) bit of force to break them free any more and you risk breaking the robot.
Link to the original Benchmark Bot: https://thangs.com/Kazi%20Toad/Benchmark%20Bot-55105
Print Settings:
No support! No brim!
The point of the Benchmark Bot is to find the best parameters to make it function, therefore it is difficult to recommend any settings.
That being said, I used the following parameters: 0.4mm nozzle, 0.2mm layer height, PLA, 3 walls, 4 top/bottom layers, 10% infill.
Descripción original del autor, publicada en Thangs.
