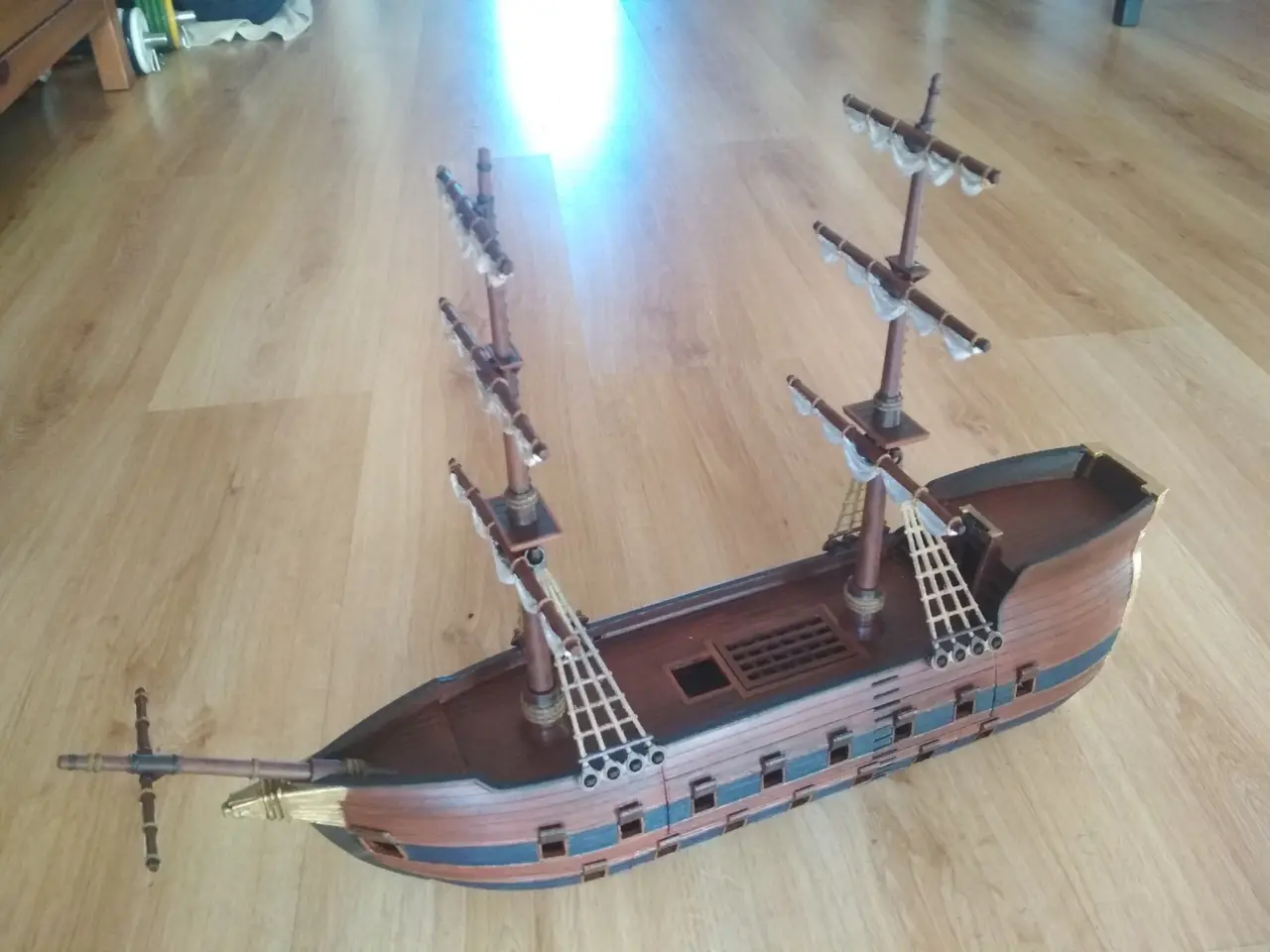

Modular Warship XVII - DnD
por Raul Obis en Thingiverse
This is a XVII-XVIII inspired warship that I modeled for one "pirate/sailor" dungeons and dragons games that I just started. The ship has also some 40k imperium related art, but its well integrated with the ship line. It is a modular ship that allow some kind of different ship configurations, so...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Raul Obis.
Archivos (43)
- BARCO_GRANDE_REJA_BODEGA.stl STL · 25 KB
- BARCO_GRANDE_CASTILLO_PROA_1.stl STL · 1,6 MB
- BARCO_GRANDE_CUBIERTA_PROA_EAGLE.stl STL · 19,9 MB
- BARCO_GRANDE_BASE_CENTRAL.stl STL · 864 KB
- BARCO_GRANDE_BATERIA.stl STL · 597 KB
- BARCO_GRANDE_CASTILLO_POPA_1.stl STL · 1,3 MB
- BARCO_GRANDE_CASTILLO_POPA_SUPERIOR.stl STL · 2,1 MB
- EAGLE_HEAD.stl STL · 3,2 MB
- BARCO_GRANDE_CUBIERTA_POPA.stl STL · 1,1 MB
- BARCO_GRANDE_CUBIERTA_Principal.stl STL · 21,8 MB
- BARCO_GRANDE_BASE_PROA.stl STL · 1,9 MB
- BARCO_GRANDE_BASE_POPA.stl STL · 1,3 MB
- MAIN_MAST_TOP.stl STL · 6,5 MB
- SAIL_MAST_Medium_A.stl STL · 15,4 MB
- SAIL_MAST_Medium_B.stl STL · 16,6 MB
- SAIL_MAST_Large_B.stl STL · 17,5 MB
- ROPES_LEFT_FRONT.stl STL · 63,7 MB
- SAIL_MAST_Large_A.stl STL · 17,0 MB
- ROPES_RIGHT_FRONT.stl STL · 63,7 MB
- ROPES_LEFT.stl STL · 64,1 MB
- SAIL_MAST_Small_B.stl STL · 17,1 MB
- ROPES_RIGHT.stl STL · 64,1 MB
- FRONT_MAST.stl STL · 7,7 MB
- MAIN_MAST.stl STL · 7,1 MB
- SAIL_MAST_Small_A.stl STL · 16,2 MB
- SAIL_MAST_Large_V2.stl STL · 98 KB
- SAIL_MAST_Small__V2.stl STL · 102 KB
- SAIL_MAST_Medium__V2.stl STL · 93 KB
- CannonAssembled.stl STL · 1,3 MB
- Cannon_1_G.stl STL · 742 KB
- Cannon_2_G.stl STL · 596 KB
- BARCO_GRANDE_CASTILLO_POPA_SUPERIOR_V2.stl STL · 1,3 MB
- BARCO_GRANDE_BASE_PROA_GRID_MAGNET.stl STL · 2,0 MB
- BARCO_GRANDE_CASTILLO_POPA_1_GRID.stl STL · 1,4 MB
- BARCO_GRANDE_BATERIA_GRID.stl STL · 660 KB
- BARCO_GRANDE_CASTILLO_POPA_SUPERIOR_GRID.stl STL · 2,1 MB
- BARCO_GRANDE_CASTILLO_PROA_1_GRID.stl STL · 1,7 MB
- BARCO_GRANDE_BASE_CENTRAL_GRID_MAGNET.stl STL · 919 KB
- BARCO_GRANDE_CASTILLO_POPA_SUPERIOR_V2_GRID.stl STL · 1,3 MB
- BARCO_GRANDE_CUBIERTA_POPA_GRID.stl STL · 1,2 MB
- BARCO_GRANDE_BASE_POPA_GRID_MAGNET.stl STL · 1,4 MB
- BARCO_GRANDE_CUBIERTA_Principal_GRID.stl STL · 21,9 MB
- BARCO_GRANDE_CUBIERTA_PROA_EAGLE_GRID.stl STL · 20,0 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 85,995
- Publicado
Sobre este modelo

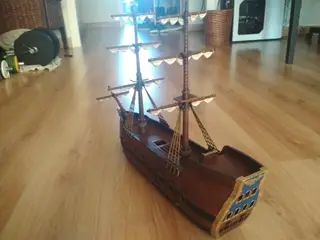

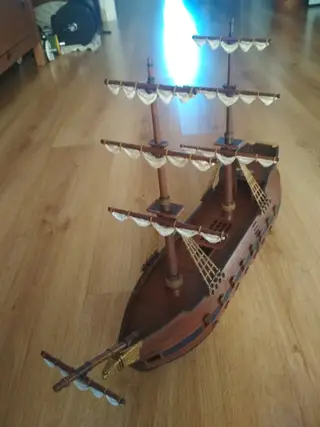

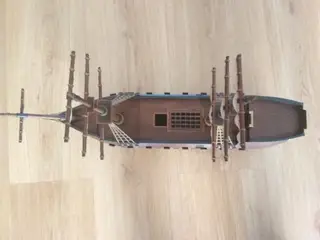

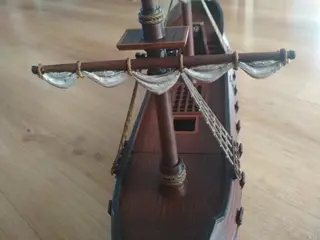

This is a XVII-XVIII inspired warship that I modeled for one "pirate/sailor" dungeons and dragons games that I just started. The ship has also some 40k imperium related art, but its well integrated with the ship line. It is a modular ship that allow some kind of different ship configurations, so not all ship battles/encounters would be the same. Pictures of the printed ship are very welcome. This project is printable and usable as it is. It is "finished" but if anyone has a suggestion, please post a comment, I may consider doing modifications or additions. UPDATE 15/02/2020 -Version of the ship body and decks with grids have been added (_GRID). -Base with grid can now be assembled with magnets (5 mm diameter, 2 to 4 mm length). -If files are not available when downloading you can get them in this remix: https://www.thingiverse.com/thing:4172687 UPDATE 29/12/2019 -Alternative flat stern deck has been added (BARCO GRANDE CASTILLO POPA SUPERIOR V2) UPDATE 20/12/2019 -Cannons have been added -Sail masts without sails have been added. UPDATE 02/09/2019 -Masts, sails masts and ropes have been added. Once I paint it I will add some new pictures. Printing advice: - Print at 110%-120% for better scale match with 28 mm figures. - No supports needed for any part - It took almost a full 1kg pla spool (95%) to print everything at: · 0.4 mm nozzle · 0.8 mm shell /1.2 mm top and bottom shells · 24% infill · 60ºC heated bed · 0.2 mm layer height - Beware, some warping may appear on the larger parts (increasing heated bed from 50 to 55 almost solved it in my case, so I advise 60ºC). The use of an enclosure is recommended.
- Main mast, Main top mast and front mast are printed vertically. Main mast and front mast need a raft. I printed them at 0.15 mm layer, low speed.
- Sail masts are printed split in two parts and glued together. I printed them at 0.1 mm.
Instructions: - The 3 base parts can be joined by using 6 M3 bolts or just glued one to each other. - If you decide to use the magnet version, you will need 12 magnets of 5 mm diameter and thickness between 2 and 4 mm. Glue them in the holes. Ensure you glue them with the proper orientation. - Other parts just fit on top. - For the mast you may need to sand the end that goes inside other parts. - The sail masts need to be glued together.
