LUCKY 13 Printable Jointed Figure

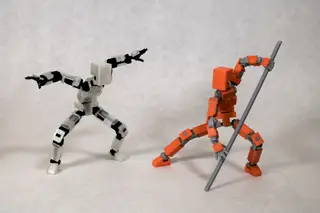

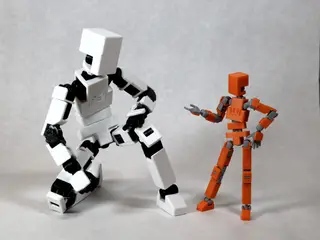

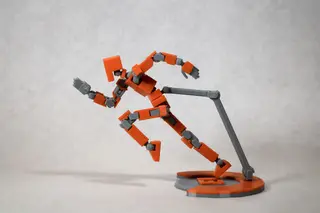

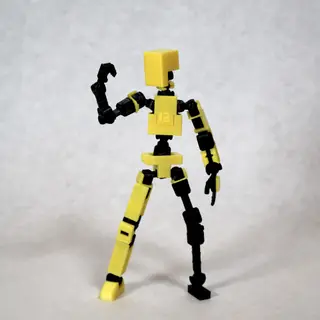

Lucky 13 is now on a CC BY 4.0 license! This means that you are free to share these files however you like, including selling prints, provided that you give proper attribution. You can give proper attribution by including this notice on your product page: LUCKY 13 Printable Jointed Figure © 2022 by Lucky 13 Toys is licensed under CC BY 4.0 Please help me build my identity as a creator by referring to this design by its original name. Don't pass off my work as your own product. If this free model brought you joy (or profit), consider making a donation: PayPal | Stripe | Buy Me a Coffee -- Did you know there's a whole Lucky 13 family? And that the other models are probably easier to print and assemble than this one? :) -- Lucky 13 is a fully 3D printable, highly poseable, snap-together, modular, customizable, jointed figure. This starter set features everything you need to start printing, playing, and making it your own. The included STL files give you access to: - A core armature with lifelike articulation! - A basic skin that easily snap-fits for customization! - A set of accessories for extra inspiration! - A display base to show off your figure in extra-dynamic poses!

Make sure you grab the PDF manual from the files! I hope you’ll have as much fun with Lucky 13 as I have! Print details: - Material: PETG - Layer height: 0.15mm - Supports: no - Infill: 15%

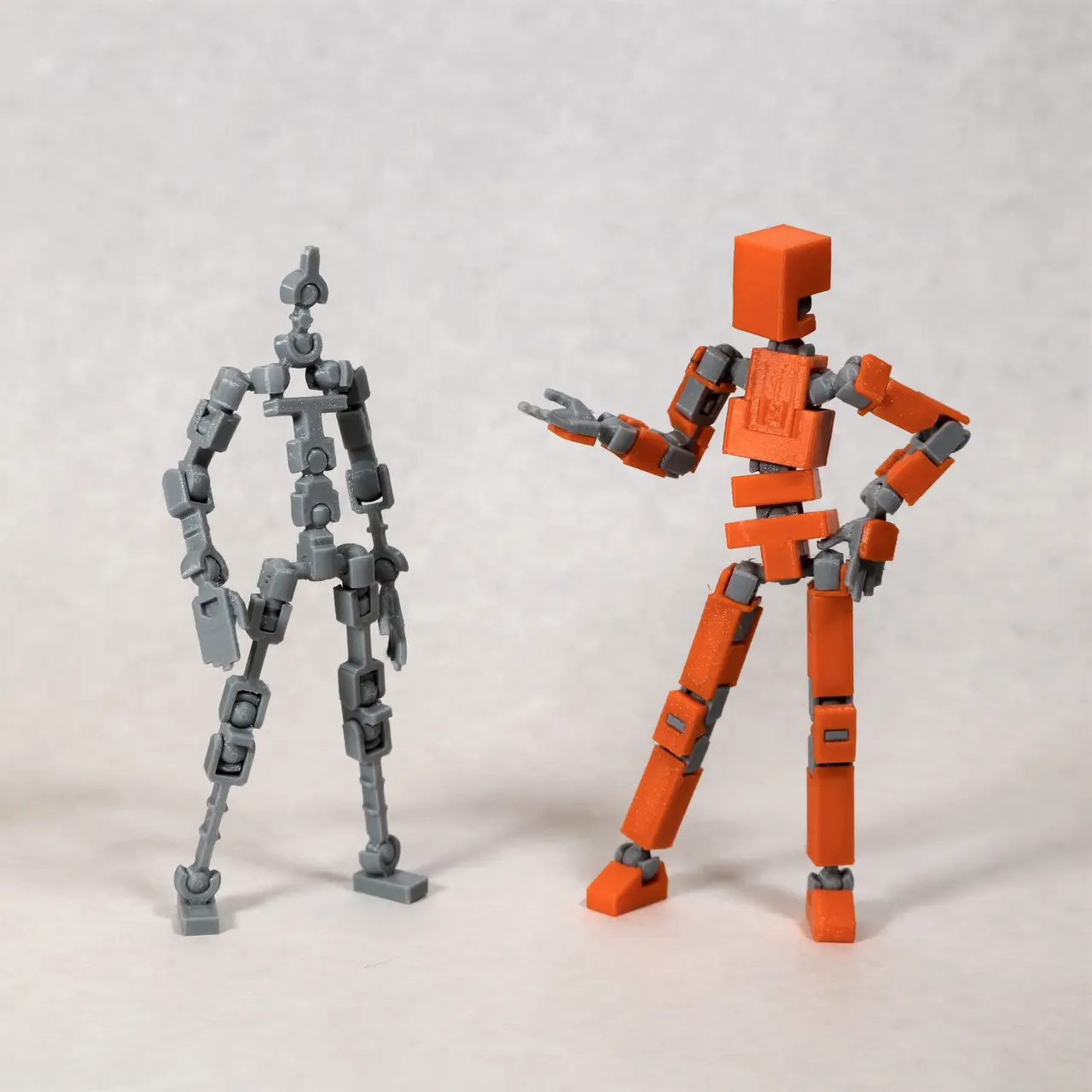

All sample images are printed on a Prusa MK3S and/or Prusa MINI. Note 1: Some file names were changed slightly in the upload, but you should still be able to follow the manual. When I say “armature parts,” I mean parts that say “armature” in their filename, and so on. Note 2: I've added one pre-sliced gcode file to be able to display print time estimates. However, I strongly recommend that you your own slicing. You're not allowed to get mad at me if you just stick that file on an SD card and it doesn't work perfectly. Note 3: The “A16” parts are only needed if you want to assemble just the armature without the skin, like in the first picture. They attach to the foot joints. The next release will have that called out in the manual. If you like this print, consider sending me a tip to support developing the next version :)

Change log: 10 Mar 2022: Fixed some manifold errors, updated file organization for better clarity. 11 Mar 2022: Uploaded new versions of parts 00A08 and 00A11 with added chamfer for ease of assembly. Uploaded new versions of parts 00B08L/R, 00B12, 00B13, 00B15, 00B16 with increased tolerances. Updated plated part files to match new individual part versions. 1 Apr 2022: Added a gcode file to display print time estimates. However, I still strongly recommend that you do your own slicing. 27 Feb 2024: Changed to CC BY 4.0 license
