Lightning McQueen Kit Card (Disney Pixar Cars Movie)

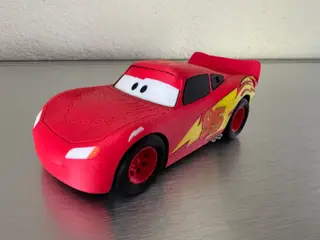

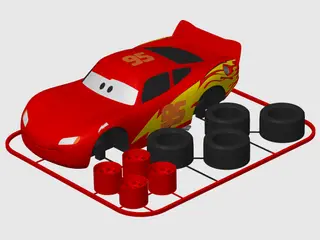

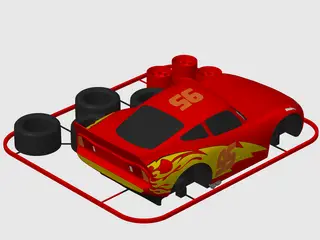

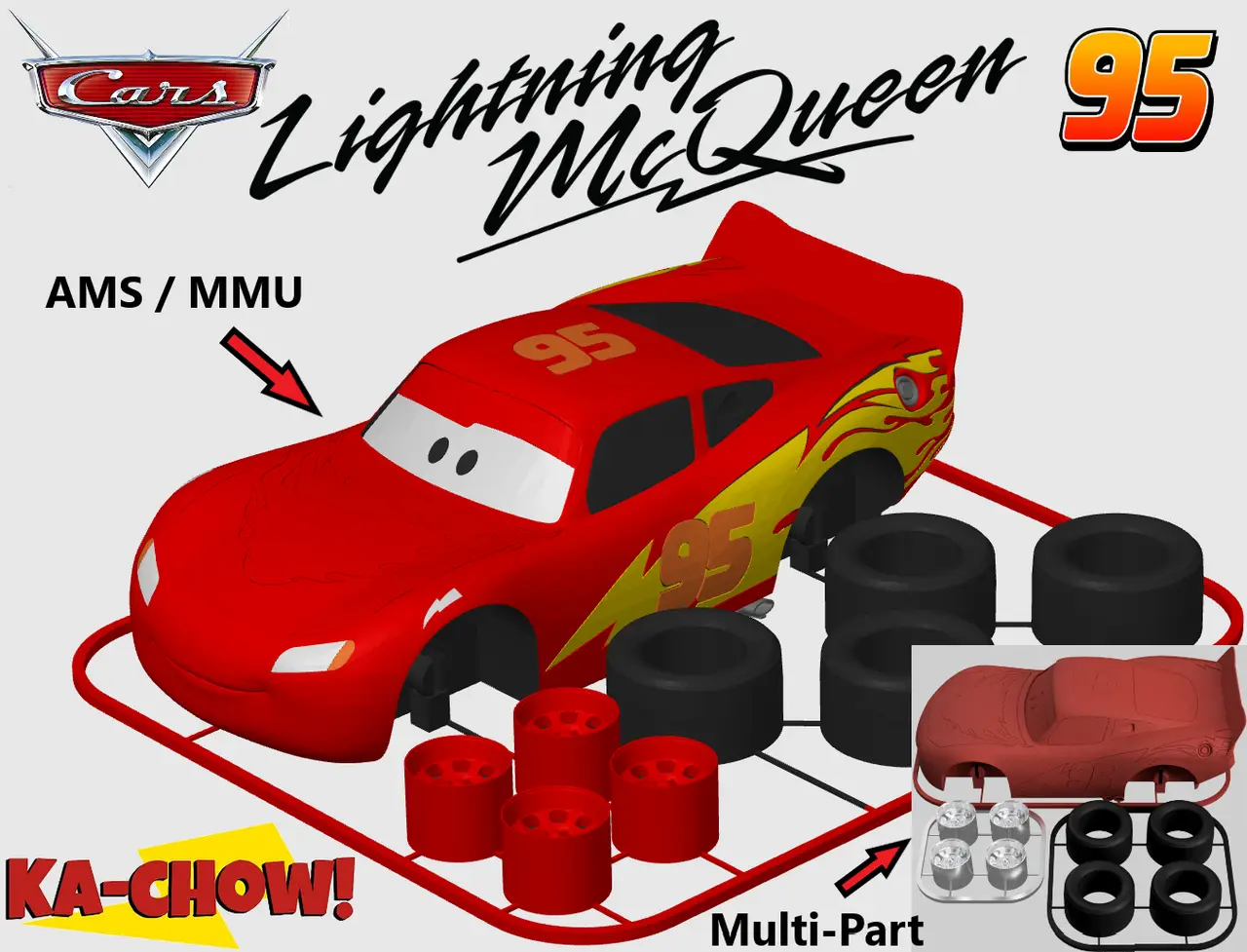

Update 01.06.2024: The wall generation in the current slicer version makes the eyebrows rough. I have adjusted the color so that it is not noticeable (new version V3). Summary This is a model of Lightning McQueen in a kit card style. Some characteristic details can be discovered. After printing, the model can be assembled with the help of integrated connectors. The wheels can be turned, but the car will not roll. Versions The complete set is available in a STL file for a one-color print. There is a 3MF-file with predefined colors intended for users of AMS or MMU. Otherwise, the chassis, rims and the tires must be printed separately. Print Print with 0.15 layer hight or lower to bring up the details. No supports are needed. Use 3 perimeters and 10% infill. Post processing The small struts can be removed really quickly and cleanly using a side cutter. Please remove the predesigned supports under the axles and under the exhausts. Assembly The kit is easy to assemble. All parts fit together very well. Use some grease for the hole in the rim so that the wheel turns more easily. If a part should be loose, superglue can be used. Dimensions at 100% scale The fully assembled model has the following dimensions Height: 50mm Depth: 150.3mm Width: 74.3mm The complete kit card has the following dimensions when printed Height: 44mm Depth: 163mm Width: 138.5mm Scaling will work in a low range due to the tolerances. Other models I will also try to publish other car models. Stay tuned! I hope you had as much fun printing and assembling it as I did :-) Get more information about this amazing “car” here.
