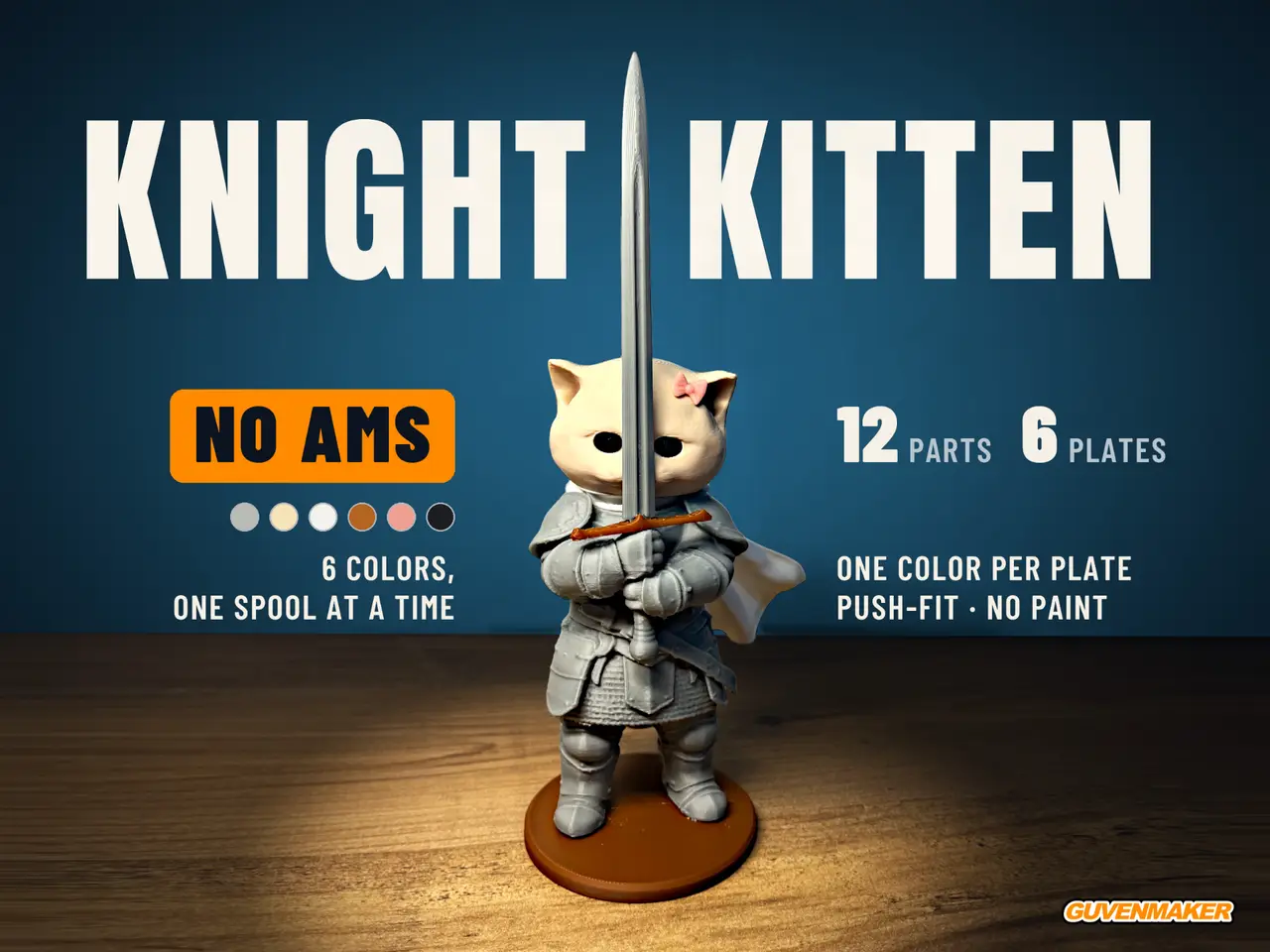

Knight Kitten - No AMS Multicolor Kit

Knight Kitten: a tiny armored kitten holding a sword taller than itself, as a 12-part kit you can print in full color without an AMS. Every part is a single color and every plate is one filament. Print the six plates one after another, swap the spool in between, and push the parts together. WHAT YOU GET - 12 parts on 6 plates, one color per plate - Every part sits on the bed with a flat face: clean first layers, little support - Push-fit joints: round pins, plus a rectangular key for the tail and a rectangular tang for the sword so they cannot rotate - Round base with two pins for the boots - Assembled size: 91 x 81 x 183 mm (the kitten itself is about 118 mm to the ear tips) PLATES AND COLORS 1. Armor + Blade: Body, Sword blade (Bambu PLA Basic Silver) 2. Fur: Head, Tail, Tail key, Neck pin (Bambu PLA Matte Latte Brown) 3. Cape: Cape (Bambu PLA Matte Bone White) 4. Crossguard: Crossguard (Bambu PLA Matte Caramel) 5. Bow: Bow (Bambu PLA Matte Sakura Pink) 6. Base + Eyes: Base, 2 eyes (Bambu PLA Basic Black) Any colors work. The belts and the pommel are part of the body and print in the armor color. The print in the photos has a brown base; in the profile the base shares the black plate with the eyes. PRINT SETTINGS (included profile) - Bambu Lab P2S, 0.4 mm nozzle, 0.20 mm layers - 15% infill, 2 walls - Tree supports, on build plate only. The body needs them, the cape and the head a little; the three small plates print without support

1. Press both boots onto the base pins. 2. Push the key into the tail, then into the slot under the skirt. 3. Push the cape's pin into the neck socket of the body. 4. Put the neck pin into the cape and the head onto the pin. 5. Press the eyes into their sockets. They are not identical, so test fit first. 6. Glue the bow onto the flat pad on the head. 7. Slide the crossguard onto the blade's tang and push the tang into the fists.
