High Speed Propeller Launcher
por Lukas Hannert en MakerWorld
High Speed Propeller Launcher. Three stage herringbone planetary gear box with a 1:64 gear ratio.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Lukas Hannert.
Archivos (6)
- Complete Set STL - Propeller Launcher.zip ZIP · 180,3 MB
- Complete Set STL - Small Propeller Launcher.zip ZIP · 185,8 MB
- Mod STL - Extended Adapter.zip ZIP · 6,6 MB
- Propeller STL - Oversized Propellers.zip ZIP · 7,8 MB
- Propeller STL - The plane that works differently.zip ZIP · 3,5 MB
- Propeller Blank.step STEP · 263 KB
- Categoría
- Juguetes y juegos
- Formatos
- ZIP, STEP
- Descargas
- 55,622
- Publicado
Sobre este modelo

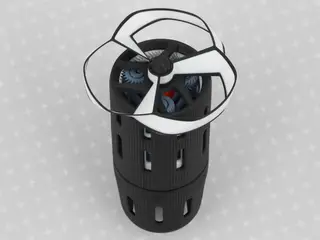

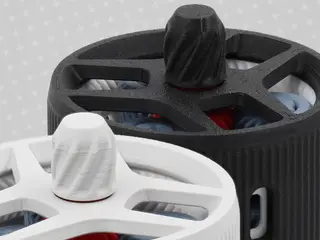

High Speed Propeller Launcher

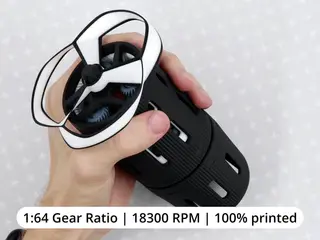

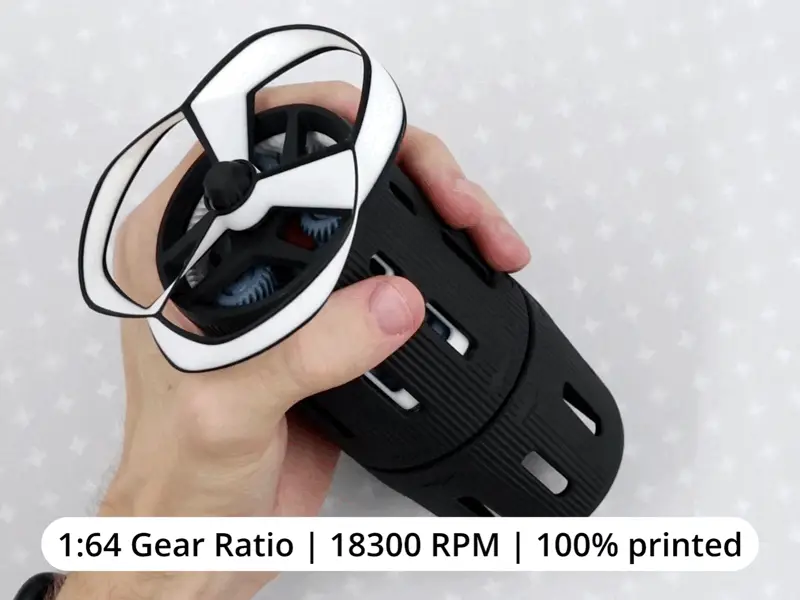

- Three stage herringbone planetary gear box with a 1:64 gear ratio.

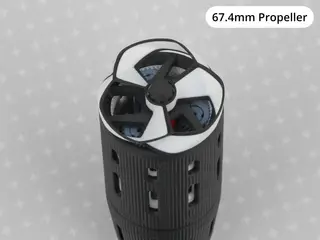

- Up to 18300 RPM with the 67.4mm propeller.
- No tools required for assembly - everything is a press fit (to fully disassemble you just need a 2-3mm pin punch).

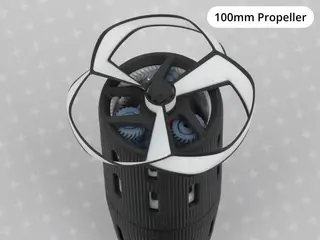

- Customizable propellers - download the “Propeller Blank” file and use CAD to model your own propeller design!
Assembly
Tip: A few drops of oil will make the gears run smoother.
FAQ
- What can I do if it doesn't turn smoothly even though I added lubricant? First check if all Gear Axles and Planetary Carriers are inserted all the way vertically. Sometimes it requires a lot of force to push them all the way in. If the issue still persists, check the teeth of the gears for any print imperfections and remove them. You can also use a power drill to spin the output shaft for a couple minutes to smoothen the flanges.
- Can I sell prints of it online? Yes! Subscribe to the commercial license Patreon tier or scroll further up on this page and join to be a member on MakerWorld and you're good to go :)
- What are the three spinning pins at the bottom side for? It's just for the optical design and has no further functional use.
- Can I post videos about the launcher online? Yes, absolutely! Please just make sure to leave credit.
- Where can I find all STL files if I don't have Bambu Studio or the STEP file for the propeller blank? Select Download STL/CAD Files from the dropdown menu of the green button. Look for the .zip files if you need STLs.
- Is there any need for support material on any parts? No, but if using custom slicer settings I recommend to not exceed a layer height of half your nozzle diameter. This is for better overhang capabilities.
- I'm having too much fun playing with this even though I'm not a kid anymore. Is everything ok with me? Nah, see therapist.
Changelog Update 24/12/24: Affected Profiles:
- Complete Set | Small Propeller Launcher
- A1 Mini Complete Set | Small Propeller Launcher
- Complete Set | Propeller Launcher
- A1 Mini Complete Set | Propeller Launcher
Changes:
- Improved optical design of the Upper and Lower Housing. The function is not affected.
Update 16/11/24: Affected Profiles:
- Complete Set | Small Propeller Launcher
- A1 Mini Complete Set | Small Propeller Launcher
Changes:
- Improved clearances on Stage 1 Planetary Carrier, Planetary Carrier Top Cap and Planetary Gears.
Update 08/11/24: Affected Profiles:
- Complete Set | Small Propeller Launcher
- A1 Mini Complete Set | Small Propeller Launcher
