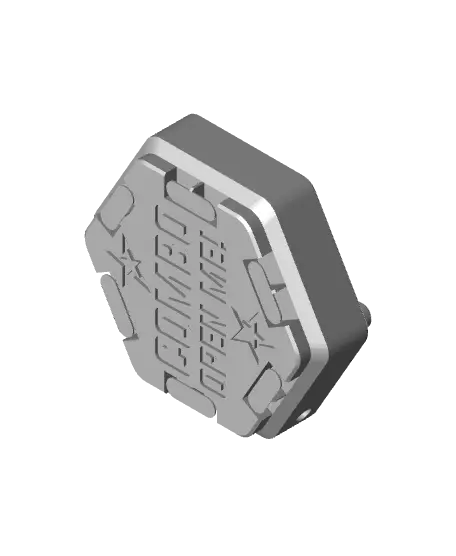

Hextraction Double Lane Tiles
A modular folding combo set with 100+ combinations.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a NoStep.
Archivos (18)
- Double Lane Asterisk.STL STL · 438 KB
- Double Lane Blank (DO NOT PRINT).STL STL · 267 KB
- Double Lane DC Trap.STL STL · 510 KB
- Double Lane DC.STL STL · 396 KB
- Double Lane DI.STL STL · 396 KB
- Double Lane DWC.STL STL · 645 KB
- Double Lane IC.STL STL · 396 KB
- Double Lane IH.STL STL · 402 KB
- Double Lane Kite.STL STL · 515 KB
- Double Lane Newtons.STL STL · 464 KB
- Double Lane Randomizer.STL STL · 609 KB
- Double Lane Reroute.STL STL · 494 KB
- Double Lane Vf.STL STL · 485 KB
- Double Lane W.STL STL · 448 KB
- Double Lane X.STL STL · 546 KB
- Double Lane yf.STL STL · 505 KB
- Double Lane yV.STL STL · 485 KB
- Link Double Lane.STL STL · 17 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 327
- Publicado
Sobre este modelo
A modular folding combo set with 100+ combinations.

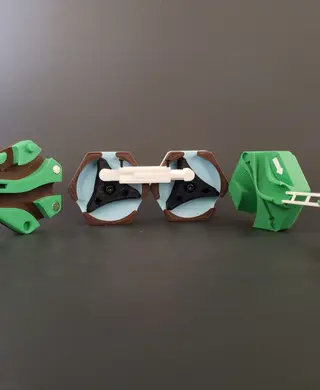

Each half has 2 paths connected to one edge. Mix and match all 16 halves and design your own set. If you end up not liking a pairing, print more or swap the halves for a new configuration! All halves have been fully tested but not all pairs.
Assembly Instructions 1. Don't cut the indexing tabs yet. 2. Insert a link in the hinge slot, jam a snippet of filament into the hinge axis, then loosely cut the filament. Repeat for the second half, joining the two. 3. Close the combo and precisely flush-cut the filament. Play-test a ball through both double openings. 4. Decide which indexing tabs to cut, matching them with their counterparts. Recommended tile design suggests not connecting top edge openings to other top edges. Cut a few or cut them all; it's your set after all! 5. Cross-reference previously assembled Double Lanes for magnet polarity. If it's the first assembly, glue in two 6x2mm magnets with one reversed. Reference these magnets for all future Double Lanes. This way you can swap one-half with any other later if you want to reconfigure. Allow for glue dry time before closing the Combo.
Community Remixes - Riptide (https://thangs.com/designer/cadeluca/3d-model/Hextraction%20Riptide%20Tile-1130359) - World Serpent (https://thangs.com/designer/cadeluca/3d-model/Hextraction%20World%20Serpent%20Tile-1154466)

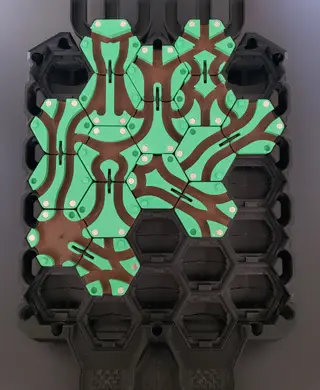

Remixing Tips I provided a blank Double Lane tile for other makers to create with. Double Lane openings are 8mm from "center of tile" to "center of double path's". In testing, I found isolated paths led to the most unique game-play, but feel free to experiment!
This tile is part of my _Connections Pack_. Check the others out. - Double Lane https://than.gs/m/1061128 - Folding Latch https://than.gs/m/1333371 - Gear Train https://than.gs/m/1333372 - Mechanical Link https://than.gs/m/1061125 - Roadblock Wall https://than.gs/m/1093407 - Skyrail https://than.gs/m/1061124 - Snek https://than.gs/m/1349731 - Triple Lane https://than.gs/m/1333373
Descripción original del autor, publicada en Thangs.
