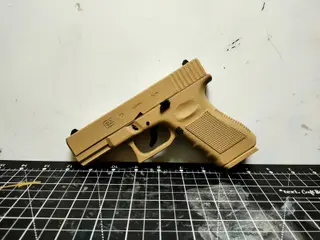

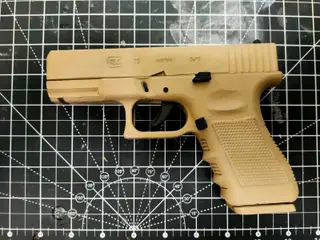

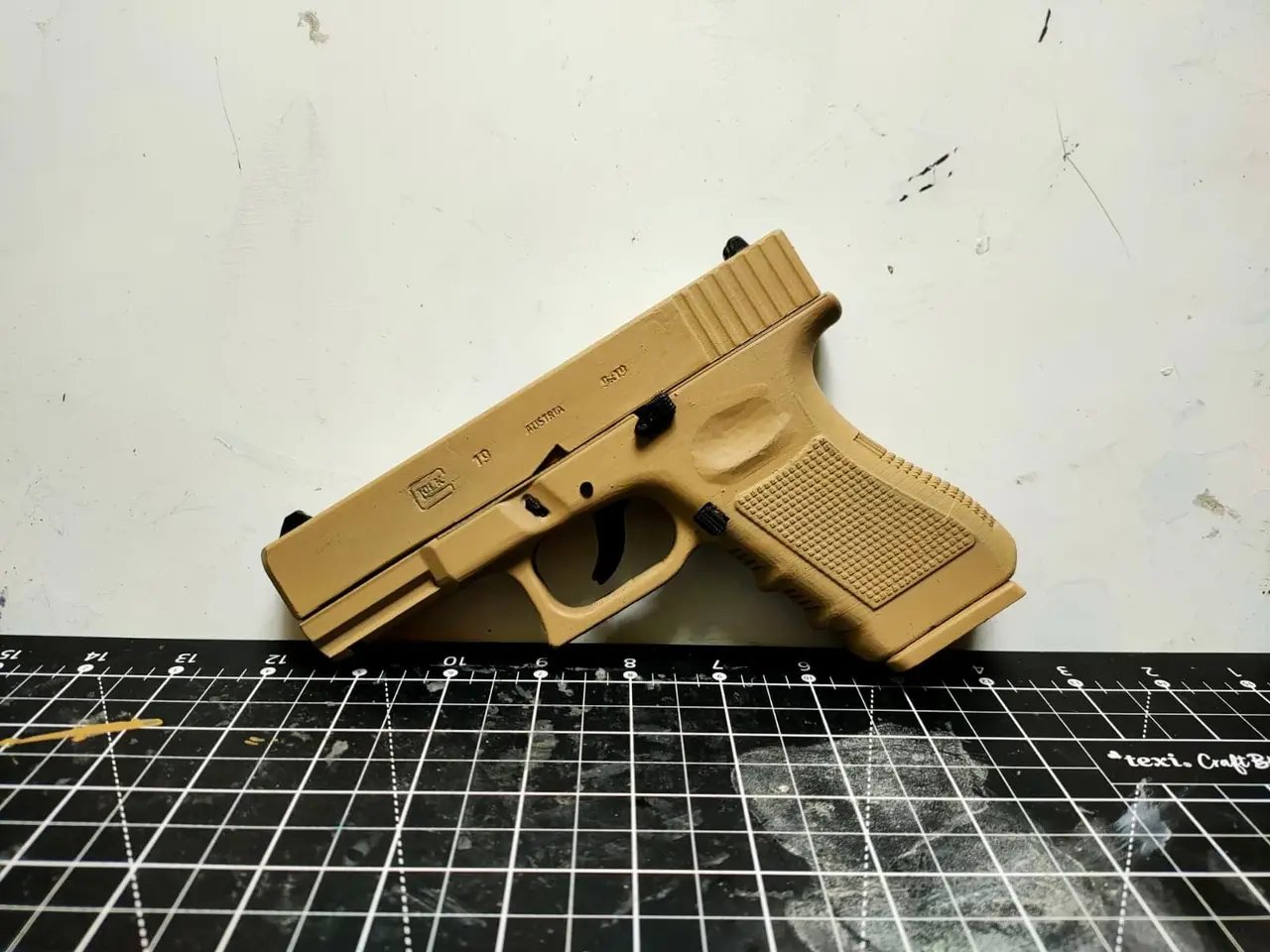

Glolk 19 and 19x | Moving gun toy prop / training gun
por Michał Januszewski en Thingiverse
Whatsup guys, Im back with another Glolk iteration, this time it`s Glolk 19 and 19x, because they are almost the same so I included 2, so watch which parts you are downloading :D (The model on the cover is the old version, before I made HUGE improvement of the slide catch and the trigger) I will do.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Michał Januszewski.
Archivos (24)
- Glock_19x_slide.stl STL · 761 KB
- Glock_19x_backplate.stl STL · 36 KB
- Glock_19x_barrel.stl STL · 196 KB
- Glock_19x_guide_rod.stl STL · 82 KB
- Glock_19x_trigger.stl STL · 354 KB
- Glock_19x_trigger_safety_lever.stl STL · 10 KB
- Glock_19x_trigger_safety_lever_pin.stl STL · 29 KB
- Glock_19x_Body.stl STL · 2,7 MB
- Glock_19x_mag_catch.stl STL · 65 KB
- Glock_19x_bullet.stl STL · 36 KB
- Glock_19x_shell.stl STL · 17 KB
- Glock_19x_magazine.stl STL · 614 KB
- Glock_19_slide.stl STL · 731 KB
- Glock_19_barrel.stl STL · 196 KB
- Glock_19_guide_rod.stl STL · 82 KB
- Glock_19_slide_catch.stl STL · 437 KB
- Glock_19_trigger.stl STL · 354 KB
- Glock_19_trigger_safety_lever.stl STL · 10 KB
- Glock_19_trigger_safety_lever_pin.stl STL · 29 KB
- Glock_19_body.stl STL · 2,6 MB
- Glock_19_mag_catch.stl STL · 65 KB
- Glock_19_bullet.stl STL · 36 KB
- Glock_19_shell.stl STL · 17 KB
- Glock_19_magazine.stl STL · 634 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 1,023
- Publicado
Sobre este modelo

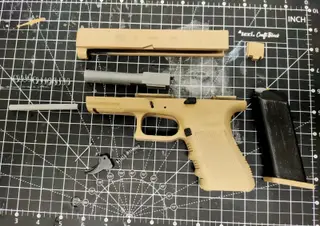

Whatsup guys, Im back with another Glolk iteration, this time it`s Glolk 19 and 19x, because they are almost the same so I included 2, so watch which parts you are downloading :D (The model on the cover is the old version, before I made HUGE improvement of the slide catch and the trigger) I will do assembly video if someone needs one, because it is very simple to put together, heres a list of needed materials: Trigger spring: ~18mm lenght and 5.75mm inside, Trigger safety: take the trigger safety lever and slide it from the back of the trigger, match the hole to the trigger hole (the bottom one) and push the little pin through, it might need some sandind if you have uncalibrated printer, then just position the trigger into the frame match the holes (trigger - slide catch - body) and drive the nail through them, Slide catch: nail (or wire) 2mm / 0.08 In diameter and ~28mm / 1.10 In long Magazine Catch: ~6cm / 2.36 In wire, you put it from the top (with the mag catch already in place) and guide it to enter the hole at the bottom, make sure it sits tightly in theree, then bend the wire to the right with something long (screwdriver for example) while pressing the mag catch to the left Slide recoil: you can use 6cm / 2.36 In spring or few short ones if you dont have one long spring, and put them on the guide rod (which goes under the barrel) when you do that install the barrel, you simply push the barrel into the 2 horizontal holes on the top of the body, then slide the slide on, check if it slides freely, if not just use sandpaper and smooth things out, then put the backplate at the back of the slide. And youre done, if you have any problems text me I`ll help :D P.S all parts are in the correct orientation, changing it might worsen the aesthetics And remember, make sure that this replica complies with your local regulations, and never, never point it at ANYONE, and always treat it as if it were loaded gun
