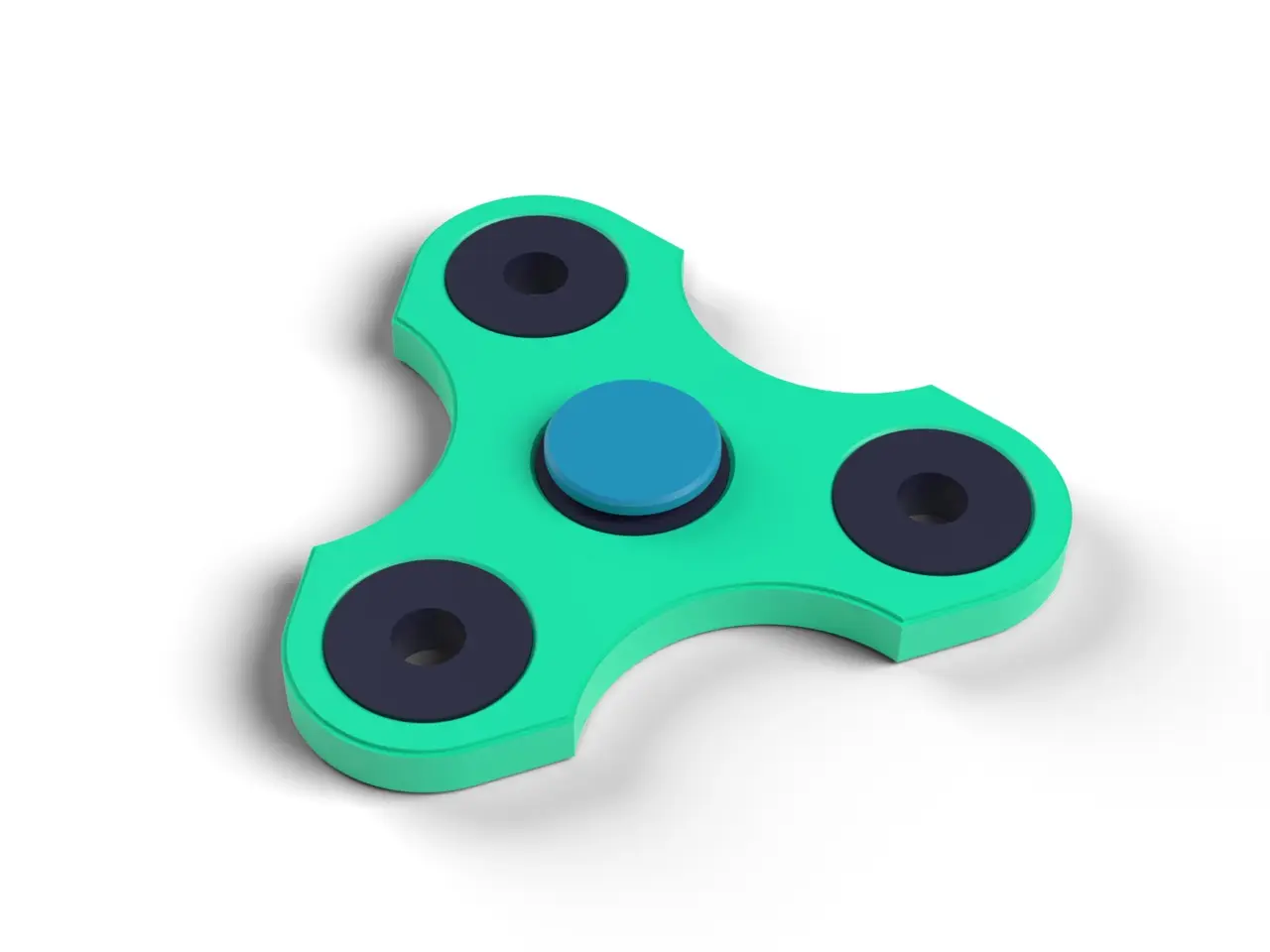

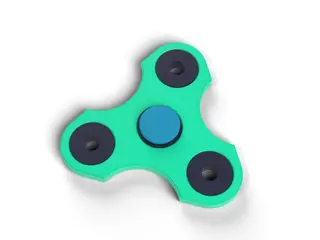

Fidget Spinner for 608 Bearings - Classic Tri Spinner with Caps, Fast Print (OpenSCAD)
por Arthur Both en Printables
A classic tri fidget spinner for 608 skateboard bearings, with press-in caps. 31 minutes to print.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Arthur Both.
Archivos (3)
- Categoría
- Juguetes y juegos
- Formatos
- STL, 3MF, SCAD
- Descargas
- 0
- Publicado
Sobre este modelo
The classic tri-spinner. Press a 608 skateboard bearing into the middle and, for a longer spin, three more into the lobes (or print the solid version). Two caps press into the centre bearing for your finger and thumb; they only touch the bearing's inner race, so the body spins freely. DETAILS • 90 mm across, 7 mm thick. Bearing holes 22.15 mm for a press fit: adjust if yours are loose or tight. • Prints flat with no supports. Bambu Studio: 31 min, 13 g. • Bearings not included (608 is the standard skateboard size). Clean the grease out of the bearing for a longer spin. CUSTOMIZE (OpenSCAD) Bearing fit, bearing or solid lobes, and thickness. Designed with AI assistance (OpenSCAD). Rendered images; not printed yet.
Descripción original del autor, publicada en Printables.
