Fidget Gear Ring

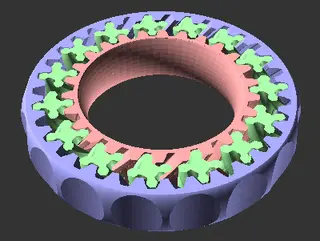

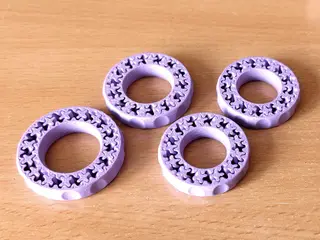

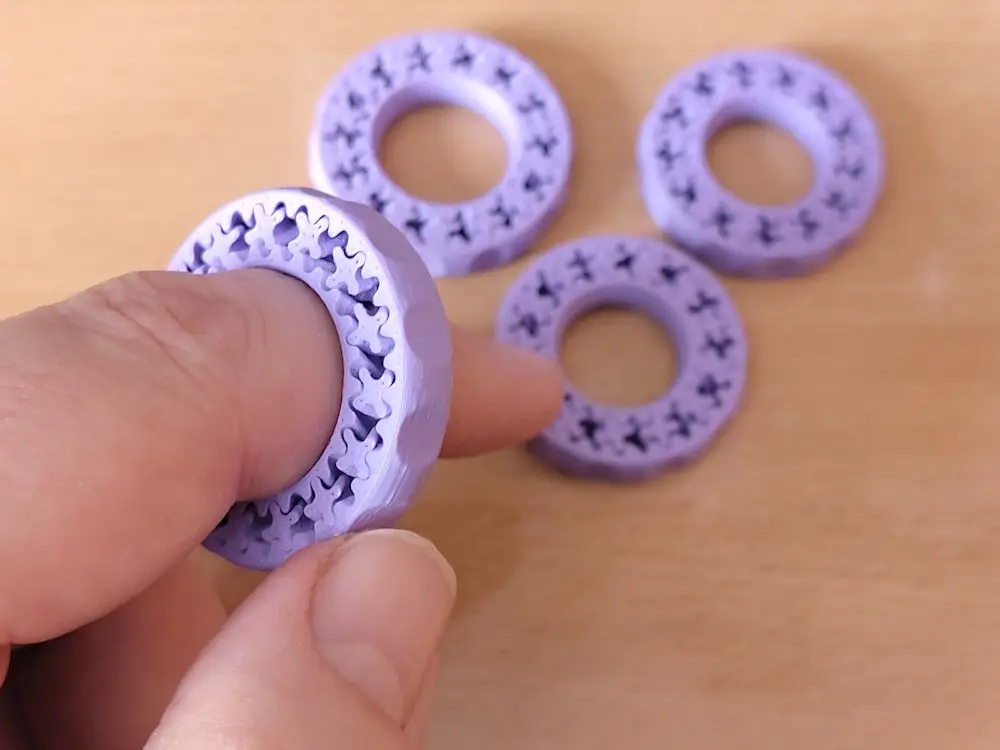

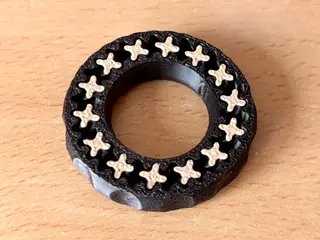

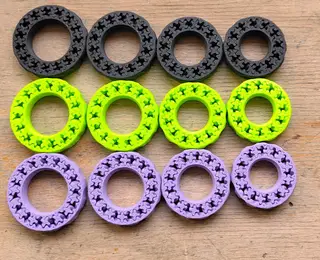

This is probably my best fidget toy! I printed dozens of them because people wanted them. Edit: Meanwhile I have a bunch of different fidget gear ring designs. EDIT: I reuploaded these as 3mf with parts for easy coloring; changing color of only parts 3 and 4 requires only 4 color swaps, allowing manual filament swaps or reducing waste for pooping single nozzle filament changers. Parts: 1: sun gear — 2: planet gears inner part — 3: planet top 2 layers — 4: planet bottom 2 layers — 5 ring gear. I also added a turn tool ans matching turn tool slots inside the ring, which makes it easier to break it loose , and to break it in with a power tool. And I added a set with a slightly wider tolerance for those who have difficulties breaking the rings free or run smoothly. It's a small, but satisfying fidget toy. You'll probably not want to wear it all the day due to it's size, but it's unobtrusive enough so you can still do a lot of things while wearing it. But while wearing it, you have a fidget thing right at hand for some quick fidgeting. (I'm wearing one as I type, and fidgeting with it when I'm thinking about what to type next.) Also the little planet gears look like plus signs - for some positive influence :) and they look quite a bit mesmerizing when moving in perfect unison. I uploaded 5 sizes, 14mm, 16mm, 18mm, 20mm and 22mm. If you need another size, ask in the comments and there's a good chance I'll make that. Printing: - 0.4mm nozzle (or lower?), - random seam placement, - I use 0.17mm layer height. - Tolerances are tight; requires a well tuned printer.

You might need to use a bit of force to break the gear loose at first, but after a bit of breaking in it is supposed to run quite smoothly. If you can't get it free, try: - a different filament, some work better than others. Silk seems to be prone to fuse. - reducing the extrusion multiplier (flow ratio) a bit - or use a slightly negative value for XY size compensation (PrusaSlicer), e.g. -0.02mm (Orca: contour -0.02, hole +0.02).

Happy fidgeting!
