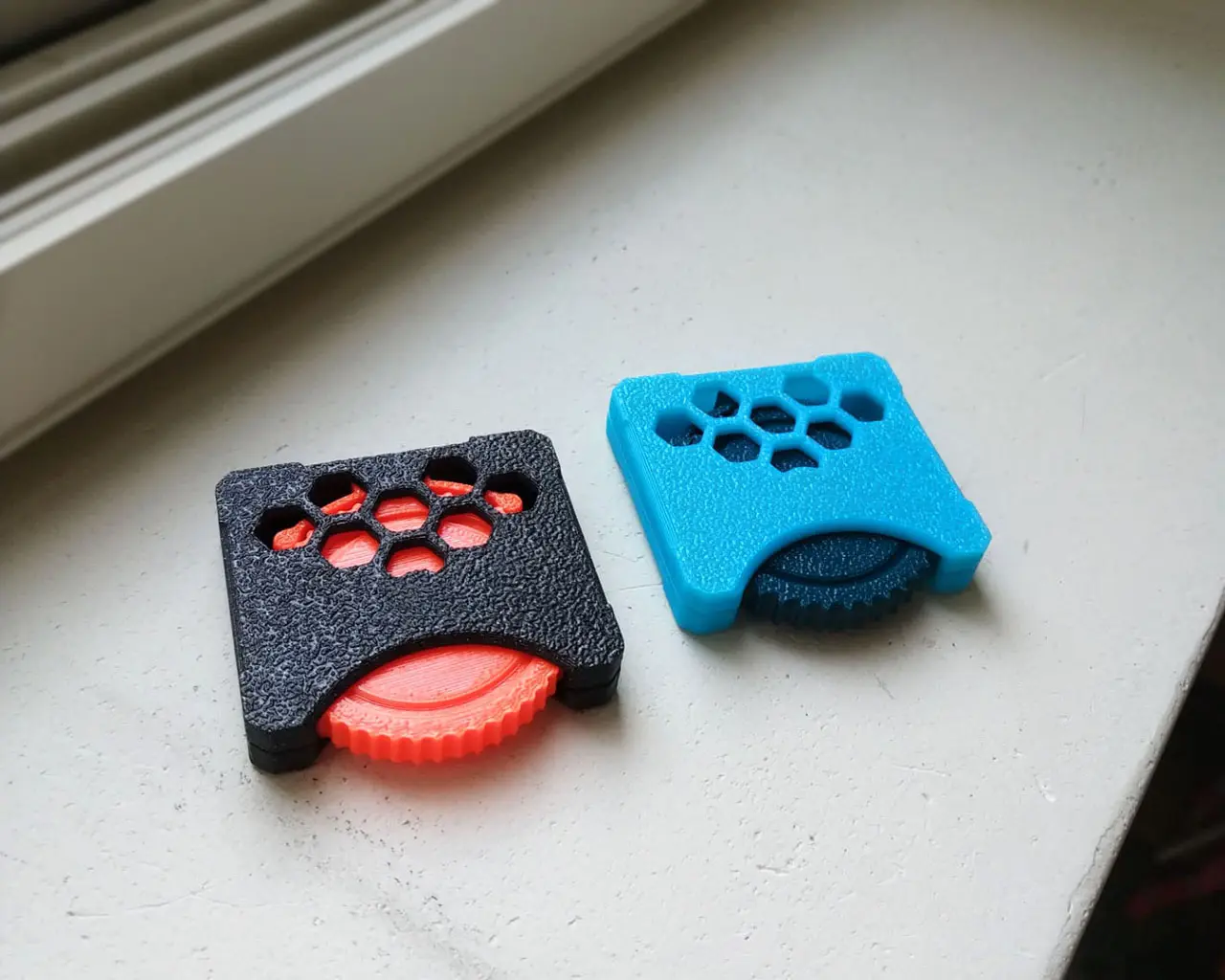

Fidget Clicking Wheel 2.0
por BaGooN en Printables
This fidget toy that can be rotated with one hand unconsciously.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a BaGooN.
Archivos (10)
- Wheel_40T.stl STL · 184 KB
- Wheel_28T.stl STL · 156 KB
- Wheel_20T.stl STL · 141 KB
- Spring_Normal.stl STL · 28 KB
- Spring_Hard.stl STL · 25 KB
- Case_A_v5.stl STL · 1001 KB
- Case_B_v5.stl STL · 556 KB
- FidgetWheel2_v78.step STEP · 1,7 MB
- Case_A_v3_0.15mm_PETG_MK3S_1h14m.gcode GCODE · 2,6 MB
- Case_B_v4_0.15mm_PETG_MK3S_1h11m.gcode GCODE · 2,3 MB
- Categoría
- Juguetes y juegos
- Formatos
- STL, STEP, GCODE
- Descargas
- 44,799
- Publicado
Sobre este modelo

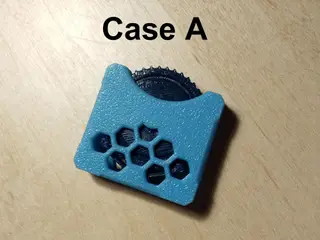

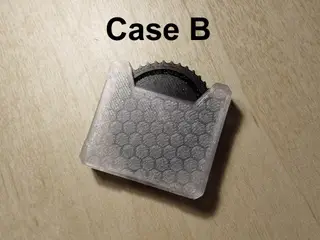

This toy is designed you get a click feeling sensation when you rotate the wheel. Slim body for cool appearance and good click feel! What is Fidget toy?: A fidget toy is typically a small object used for pleasant but purposeless activity with the hands. Customizable click feeling and case design you can choose from: - Two types of springs - Hard or Normal - Three types of gear wheels - 40T, 28T or 20T (20T has half the click interval of 40T) - Two types of case design - A or B - My recommended choices are normal spring with 40T gear wheel.
Print Settings: - Material: PLA, PETG - Layer height: 0.15 - 0.20mm (For your information, I tested it at 0.30mm and it was quite tight due to the tolerance.) - Supports: no - Perimeters: 2
Assembly: Before assembling, fit each wheel into its respective casing and ensure smooth rotation. If the rotation feels stiff, use a file to trim it as necessary. Finally, set the spring and make sure the wheel is engaged, then attach the opposite side of the case. My Other Fidget Toys: https://www.printables.com/@BaGooN/collections/1156349
Descripción original del autor, publicada en Printables.
