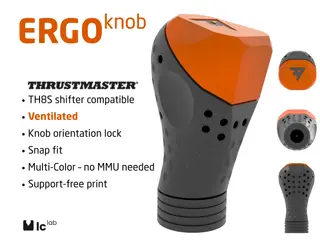

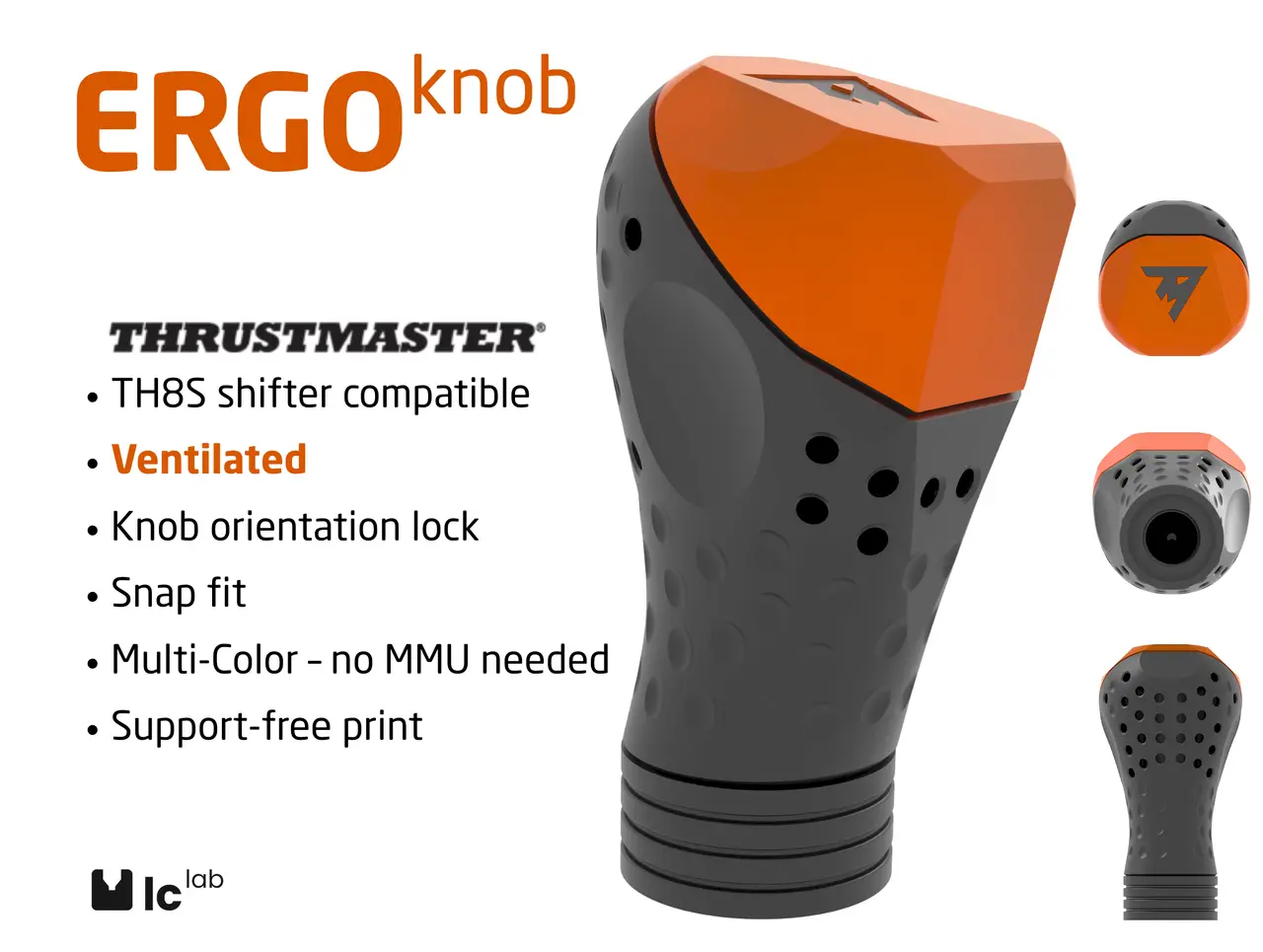

Ventilated Knob for THRUSTMASTER TH8S Shifter

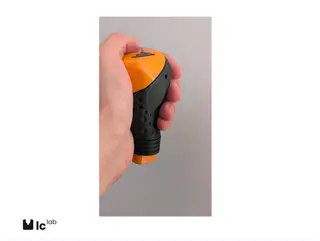

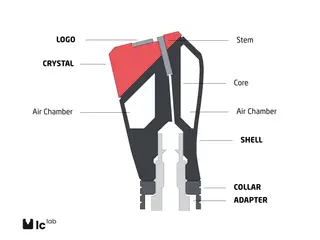

An ergonomic, ventilated knob for the THRUSTMASTER® TH8S shifter. Ergonomic: The body is shaped to sit in your palm, with a rest on each side for your thumb and fingers. Ventilated: 30% of the shell’s indentations are holes that lead into a air chamber inside the shell. An inner core with six ribs keeps the shell stiff. Multicolor / multimaterial: The knob is made of separate parts, so any single-material printer can produce a multicolor / multimaterial result. Easy assembly: The crystal slides onto the shell, and the logo presses in to hold it there. No screws, no glue. Orientation lock: The collar keeps the knob from rotating on the adapter and covers the adapter's flange Please don't scale the parts: the thread and the fits are sized for the THRUSTMASTER® adapter. Have fun! Elements - Logo: Sits recessed in the crystal, its stem locking the crystal to the shell.

- Crystal: Faceted top of the knob, slides onto two keys on the shell.

- Shell: Main body with adapter thread, ventilation holes, grip indentations, side rests and keys.

- Collar: Lock nut with three grooves that fixes the knob's direction and hides the flange.

You also need the official THRUSTMASTER® knob adapter. Recommended Materials Part Material

Logo PETG

Crystal PLA or PLA+ (matte or translucent)

Shell PLA or PLA+ (matte)

Collar PLA or PLA+ (matte)

Print Settings Setting Value

Layer height Logo, crystal & shell: 0.15 mm (balanced) Collar: 0.20 mm (balanced)

Perimeters Shell & collar: 2-3 mm

Supports None

Infill Logo & crystal: 15 % (> 90 % if translucent) Shell & collar: 25%

Print Orientation Part Orientation on the bed

Logo Face down, stem pointing up

Crystal Standing on its rear facet, joint face sloping upward

Shell Upright, on its bottom face

Collar Upside down, skirt pointing up

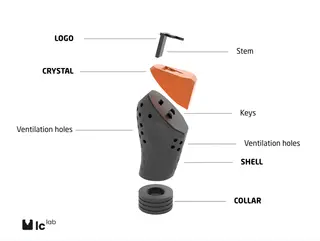

Assembly The exploded view shows the four parts from top to bottom: logo, crystal, shell and collar. Assembling the knob - Set the crystal on the sloped top face of the shell, about 1 cm further above its final position.

- Slide the crystal down the slope until its edges line up with those of the shell.

- Push the logo's stem firmly and evenly through the crystal into the shell.

Mounting it on the shifter - Fit the adapter to the shifter as described in the THRUSTMASTER® instructions.

- Screw the collar onto the adapter, wide opening (skirt) facing down.

- Screw the knob onto the adapter.

- Turn the collar up against the knob and tighten it by hand. The knob can no longer turn.
