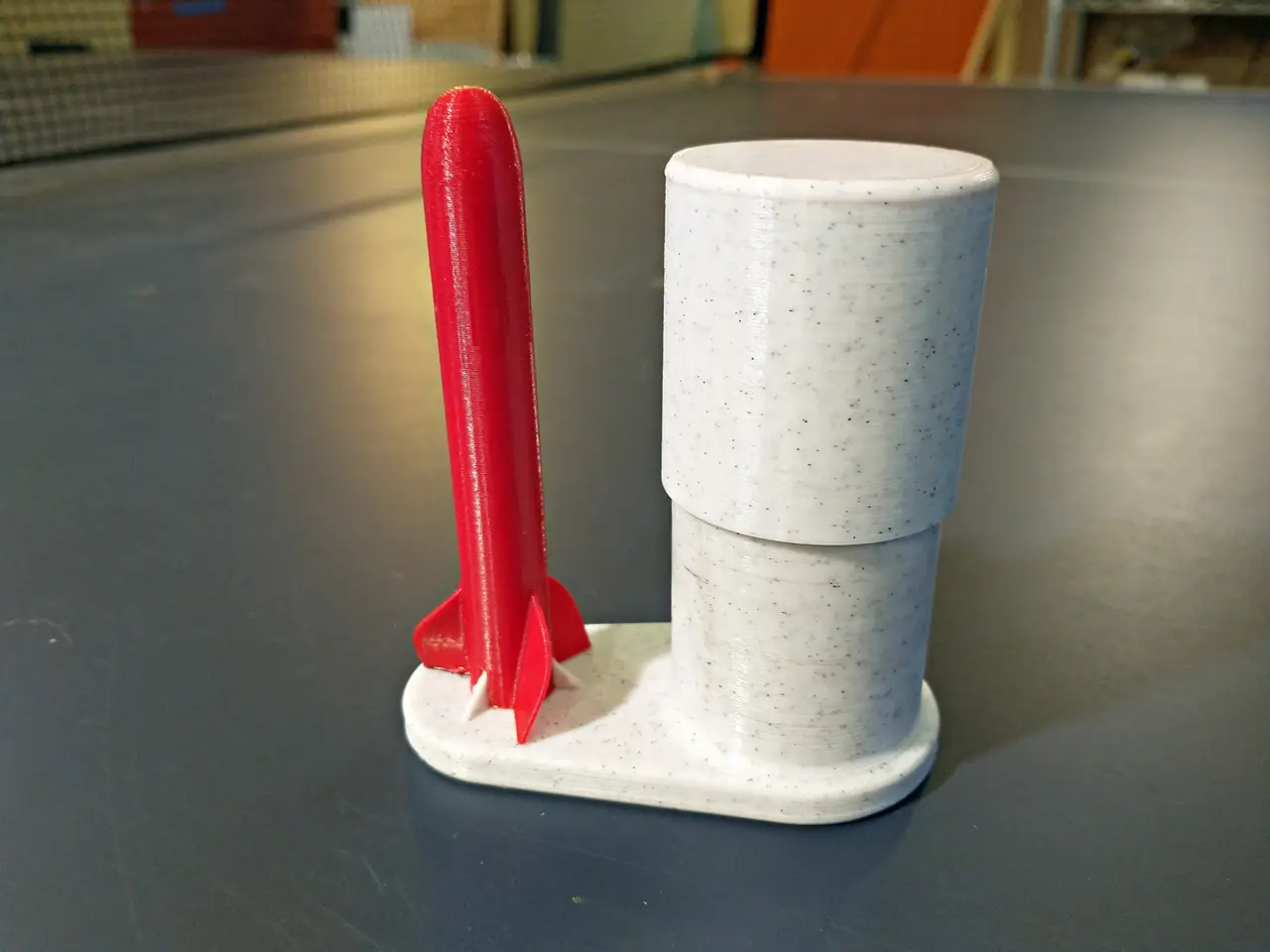

Desktop Whomp Rocket — modelo 3D

Desktop Whomp Rocket

por LoboCNC en Printables

Fun, quick-printing desktop toy.

Descargar gratis Ver en Printables

Todos los archivos (3) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a LoboCNC.

Archivos (3)
Categoría
Juguetes y juegos
Formatos
STL
Descargas
12,264
Publicado

Sobre este modelo

I first posted this on Thingiverse on 1/23/2022. A couple of copies were posted here as original work (without attribution) and were taken down, so I've decided to also post my original design here. Print using 0.4mm line width and no supports. You may need to sand the launch tube smooth (and this inside of the rocket, too, if you have a round file) to eliminate any friction. You want a close, but relatively friction-free fit. Watch it go: CAUTION- HIGH SPEED PROJECTILE: Do not shoot yourself in the face, anyone else in the face, or anywhere else, for that matter. Notes on scaling: If you want to scale this up, you need to scale the rocket and plunger by slightly different amounts from the launcher to maintain tight clearances. You can use the following formulas: LS = desired launcher scale factor (say 1.5) RS = rocket scale factor PS = plunger scale factor PS = 1.01444 x LS - 0.01444 RS = 0.95633 x LS + 0.04367 Or, just use one of these sets of percentage scalings: Launcher scale: 125%, Plunger scale: 125.4%, Rocket scale: 123.9% Launcher scale: 150%, Plunger scale: 150.7%, Rocket scale: 147.8% Launcher scale: 200%, Plunger scale: 201.4%, Rocket scale: 195.6% Launcher scale: 250%, Plunger scale: 252.2%, Rocket scale: 243.4% Launcher scale: 300%, Plunger scale: 302.9%, Rocket scale: 291.3%

Descripción original del autor, publicada en Printables.
