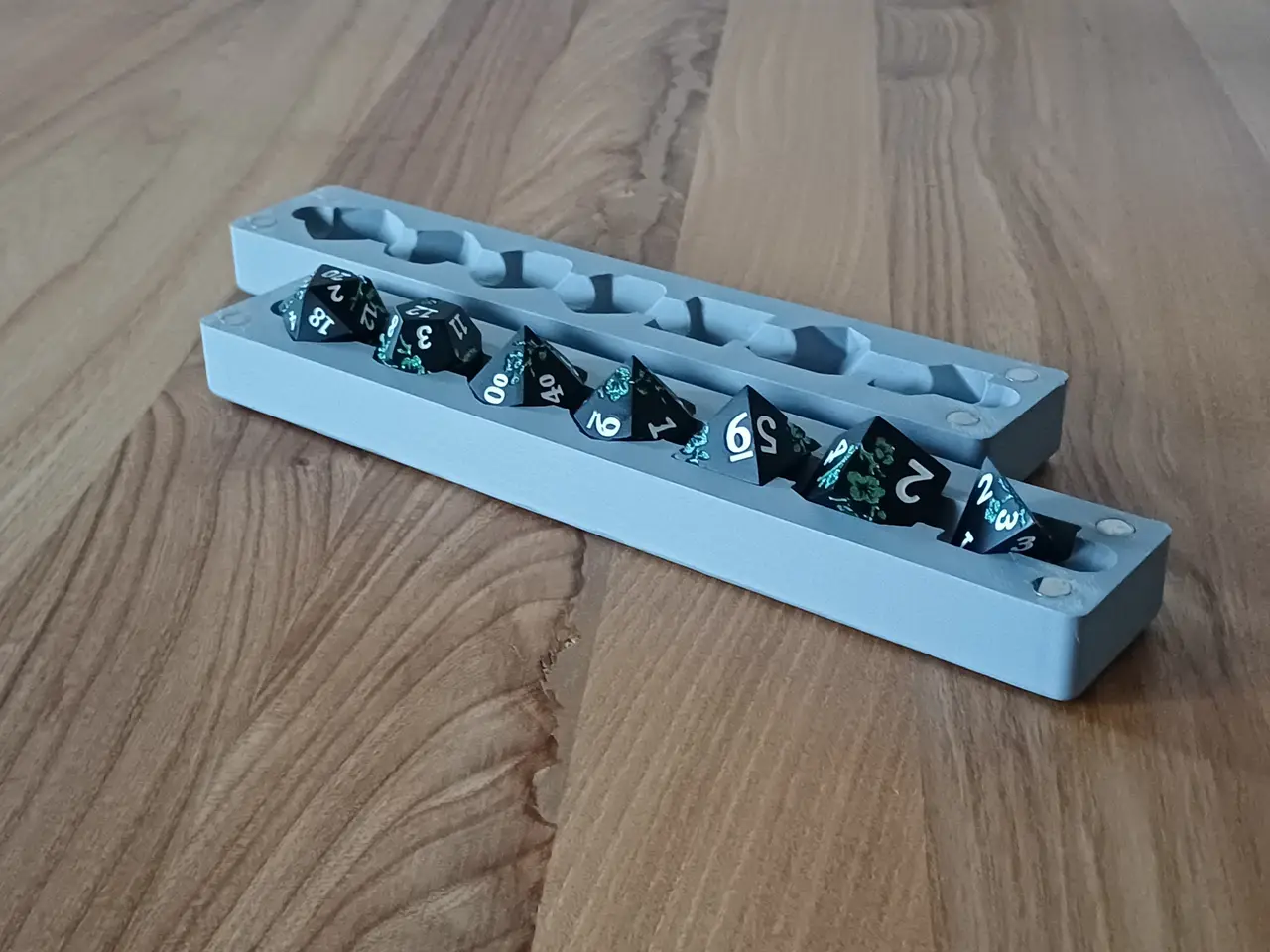

Customizable Dice Box

This is a parametric OpenSCAD script to generate a fitting dice box for your dice. Need to know - The script generates one half of the box. To get a full box, you need to print two halves. - The script only works with standard regular polyhedral dice (except for the d10).

Parameters: ParameterDescriptionDefault dice_listThis is where you specify which dice should be included and what order.d4, d6, d8, d10, d10, d12, d20 spacingThe spacing for the dice. [mm]25 wallThickness of the wall. [mm]3 thumb_hole_radiusRadius of the Capsule negative to make it easier to pick up your dice. [mm]5 dice_oversizeOversize factor for the negatives of the dice. 1.02 overhang_angleMax angle of the bottom fillet of the box. [deg]45 edge_length_d4Edge length of the d4. [mm]24 edge_length_d6Edge length of the d6. [mm]16 edge_length_d8Edge length of the d8. [mm]19 edge_length_d12Edge length of the d12. [mm]8 edge_length_d20Edge length of the d20. [mm]13 d10_heightHeight of the d10 (tip to tip). [mm]24 d10_acrossDistance of opposite faces of the d10. [mm]16 magnet_radiusThe radius of your magnets. [mm]3 magnet_heightThe height of your magnets. [mm]2 magnet_oversizeOversize factor for the negatives of the magnets.1.03
