catan-style boardgame 2.0 (magnetic & multicolor)

UPDATE: I published all my designs from tinkercad and added the links on the bottom of the description. This should help you if you want to make some individual changes to the models. Feel free to change them to your liking :-) OTHER 2.0 EXPANSIONS: - City & knights: https://www.thingiverse.com/thing:2865138 - Seafarers: https://www.thingiverse.com/thing:3072272

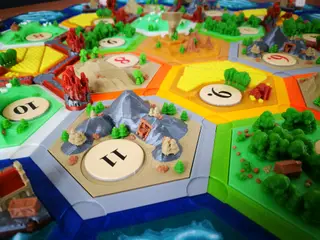

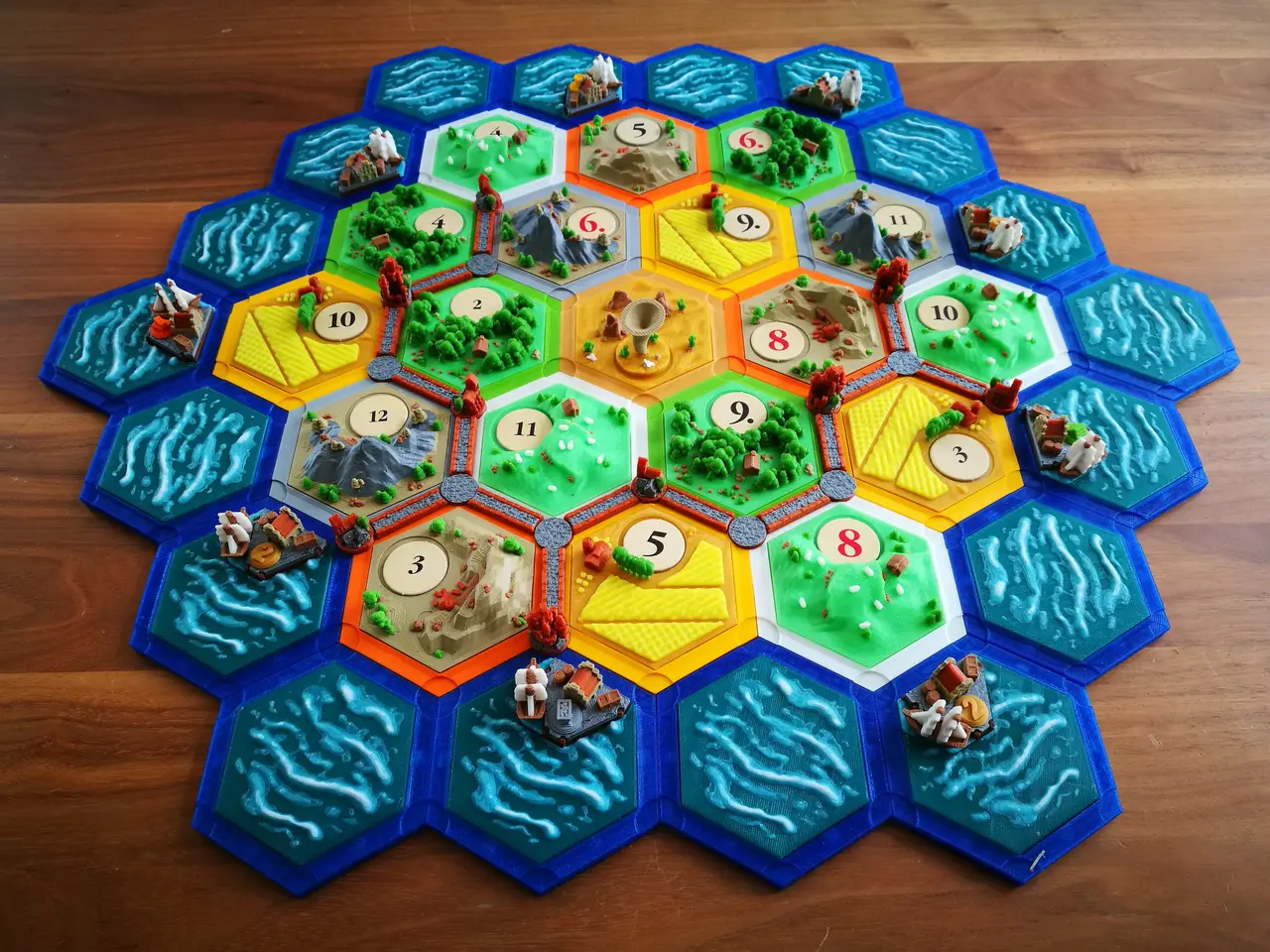

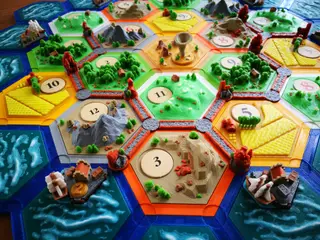

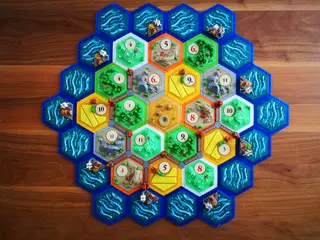

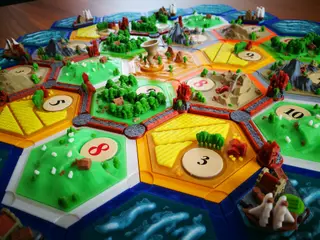

This is my new low-poly settlers of catan-style boardgame. Especially made for multicolor printers like the prusa mk2 multimaterial upgrade ore the palette from mosaic. Here are some of the new features compared to my first design (https://www.thingiverse.com/thing:1238980): - new style and parts with more details - additional multicolor-printable parts (If you have such a printer) - easier assembling also for inserting the magnets (they can't fall out) - less magnets needed - less material needed for printing the landscapes - less problems with warped tiles

DON'T POSSESS A MULTIMATERIAL-CAPABLE PRINTER? NO PROB... You can just print out the files you find here under the thing-files. Those are for a single color printer and you then have the pleasure to paint them the way you like :-). Just print the following parts: - Tiles (landscapes): 4 x wood, 4 x wool, 4 x wheat, 3 x brick, 3 x ore, 1 x desert, 9 x water, 9 x water with harbor - Harbors: 9 x harbor base, 4 x harbor top 3:1, 5 x harbor top (one of each resource) - Bases: 37 x bases - Thief: 1 x sandstorm - For each player: 15 x roads, 4 x cities, 5 x settlements, 10 x crossings (optional)

FOR THOSE WHO POSSESS A MUTLIMATERIAL-CAPABLE PRINTER CHECK OUT THOSE FILES HERE: (used colors: https://cdn.thingiverse.com/assets/bc/c9/93/e8/46/Color-composition.pdf) - Number tokens: https://www.thingiverse.com/thing:2525369 - Settlements: https://www.thingiverse.com/thing:2525194 - Cities: https://www.thingiverse.com/thing:2525205 - Roads: https://www.thingiverse.com/thing:2525208 - Crossings: https://www.thingiverse.com/thing:2525216 - Landscape ore: https://www.thingiverse.com/thing:2525061 - Landscape wheet: https://www.thingiverse.com/thing:2525064 - Landscape brick: https://www.thingiverse.com/thing:2525052 - Landscape wood: https://www.thingiverse.com/thing:2525067 - Landscape wool: https://www.thingiverse.com/thing:2525059 - Landscape desert: https://www.thingiverse.com/thing:2525164 - Landscape water: https://www.thingiverse.com/thing:2525072 - Landscape harbor water: https://www.thingiverse.com/thing:2525082 - Harbors resources: https://www.thingiverse.com/thing:2525180 - Harbor base: https://www.thingiverse.com/thing:2525098 - Harbor top: https://www.thingiverse.com/thing:2525169 - Sandstorm (robber): https://www.thingiverse.com/thing:2525085 - Landscape-bases: https://www.thingiverse.com/thing:2525182

Concerning the roules for the base game check out this link: http://www.catan.com/service/game-rules RANDOM SETUP OF THE GAME BOARD: If you would like to set up a random arrangement of the game board, this can be a tricky challenge with 3d-printed tiles  Here are two options you can use: - the first brilliant option is an app from smhexum which has developed this especially for catan: https://play.google.com/store/apps/details?id=com.smhexum.snack27d6a43606db407ab3446aceb4a792c6&hl=en_US&gl=US

- the second option is to use some of your cards from the game:

Take from the resource-cards the same amount of resources for each tile you want to place on the board. For the main game (for 4 players), this would be the following cards: • 4 cards of wood • 4 cards of wool • 3 cards of bricks • 3 cards of ore • 4 cards of wheat • 1 knight card that represents the desert Then shuffle the cards and start with the centerpiece. Draw the top card and place the corresponding tile in the middle. Let’s say you draw a card with bricks. Then take a brick-tile and place it in the center. Then define (clock or counter-clock-wise) the next tile you want to place and draw another card to determine which tile it’s going to be. For the harbors, you can use a similar approach. You take some knight-cards for the “pure” water-tiles and some of the corresponding resource-cards for the harbors and shuffle them. Then go around the already built up board and place the corresponding tiles / harbors according to the cards you drew. Alternative bases: - For 6mm x 4mm magnets (from Bash-T): https://www.thingiverse.com/thing:2818766 - interlocking bases (no magnets needed) by klayus: https://www.thingiverse.com/thing:3355285 - interlocking bases (no magnets needed) by MikeJacobi: https://www.thingiverse.com/thing:3700300 - For 3mm Neodyn magnetic balls (by heckenpflanze): https://www.thingiverse.com/thing:4751901

ASSEMBLING: Video: https://www.youtube.com/watch?v=MGI3H2Inp4E - MAGNETS: That the different landscapes hold together during playing the game, you need to insert magnets into the bases. You need a total of 222 magnets with a diameter of 3mm and a length of 6mm. You can either use axial (parallel to height) magnetised ones ore diametrical (poles on curved faces) magnetised ones. The assembling with the diametrical ones is easier because their orientation doesn't matter.

Here are two websites where you can order the magnets: - Cylindrical magnets: https://themagnetbaron.com/products/50pcs-3mm-x-6mm-1-8-x-1-4-cylinder-magnets

- Diametrical (poles on curved faces) magnets: https://www.aliexpress.com/item/500-pcs-NdFeB-Thin-Magnet-Rod-Dia-3x6-mm-Diametrically-Precision-Magnet-Neodymium-Magnets-Sensor-Rare/32770059462.html

- Axial (parallel to height) magnets: https://www.supermagnete.ch/eng/rod-magnets-neodymium/rod-magnet-diameter-3mm-height-6mm-neodymium-n48-nickel-plated_S-03-06-N

FOR AXIAL MANETS: To assemble the bases correctly proceed like this: Start with one of the bases and go around by putting the magnets into the cavities and cover them with the tiny parts printed together with the bases. Make sure that all the magnets point in the same direction (clockwise ore counterclockwise)! If not the bases won’t attract to each other. When you inserted all the magnets in one base and covered them, use some glue to combine the base with one of the landscapes on top. Now everything should hold together and the magnets should not be able to fall out or turn inside the base. Proceed like described for all other bases. After you have equipped 6 bases with their magnets everything gets more easy. Just place the next base you would like to insert the magnets in the middle of the six already prepared bases. Put in the magnets and now they should stay in there places because of the bases surrounding them. FOR DIAMETRICAL MAGNETS: The assembling is quiet easy. Just enter the magnets inside the cavities and cover them with the tiny parts included in the models for the bases. Just make sure the magnets are capable of rotating inside the cavities and don't glue them in. DOWNWARD COMPATIBLE: If you want to use those new tiles together with my first magnetic settler game (https://www.thingiverse.com/thing:1238980) or my interlocking version (https://www.thingiverse.com/thing:2035221), you find the adapters for the bases here: https://www.thingiverse.com/thing:2562026 STORAGE: - for laser-cuttering: https://www.thingiverse.com/thing:2734977 - for 3D-printing: https://www.thingiverse.com/make:583010 made by morphius713 - for multicolor printing for 5-6 player: https://www.thingiverse.com/thing:3877657 made by Swantu

I hope you have fun with this new, colored version :-) Open designs in Tinkercad: - ore: https://www.tinkercad.com/things/fygdBeuoDM5 - brick: https://www.tinkercad.com/things/ajZtVS0nHnR - wool: https://www.tinkercad.com/things/ezfS5yvEwjk - wood: https://www.tinkercad.com/things/iwrTjAQhuKA - wheet: https://www.tinkercad.com/things/jDQtlsfHi6c - desert: https://www.tinkercad.com/things/d5LxIRDaMLr - water: https://www.tinkercad.com/things/7Z68N4Scpyw - water harbor: https://www.tinkercad.com/things/iOxT84fe8II - base: https://www.tinkercad.com/things/jZZPQKN7Y18 - sandstorm: https://www.tinkercad.com/things/gy9Qi8OuxWF - crossing: https://www.tinkercad.com/things/1iDZZcWO8S6 - road: https://www.tinkercad.com/things/kn4b65qNCFY - settlement: https://www.tinkercad.com/things/llvqIihsHGN - city: https://www.tinkercad.com/things/aAXm4IsifWD - harbor base: https://www.tinkercad.com/things/aEP7P8vkgrG - harbor top 3:1: https://www.tinkercad.com/things/g3LDdLxraoY - harbor top ore: https://www.tinkercad.com/things/blm0iASTj30 - harbor top brick: https://www.tinkercad.com/things/bfMS2GtQYAC - harbor top wood: https://www.tinkercad.com/things/4wrpDbfwC4S - harbor top wool: https://www.tinkercad.com/things/kj40Kq6NWBd - harbor top wheet: https://www.tinkercad.com/things/h6yWPmQ5vLS

Additional parts from other designers: - Piece-holder (from Flinke-Flasche): https://www.thingiverse.com/thing:4262373
