Cat Phone Holder
por Grzegorz K en Thangs
Easy to print model of a small Cat to hold your smartphone
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a Grzegorz K.
Archivos (23)
- CatPhone_0.stl STL · 818 KB
- CatPhone_08mm.stl STL · 814 KB
- CatPhone_09mm.stl STL · 808 KB
- CatPhone_10mm.stl STL · 809 KB
- CatPhone_11mm.stl STL · 805 KB
- CatPhone_12mm.stl STL · 806 KB
- CatPhone_13mm.stl STL · 803 KB
- CatPhone_14mm.stl STL · 799 KB
- CatPhone_Keyring_0.stl STL · 846 KB
- CatPhone_Keyring_08mm.stl STL · 842 KB
- CatPhone_Keyring_09mm.stl STL · 837 KB
- CatPhone_Keyring_10mm.stl STL · 837 KB
- CatPhone_Keyring_11mm.stl STL · 834 KB
- CatPhone_Keyring_12mm.stl STL · 834 KB
- CatPhone_Keyring_13mm.stl STL · 831 KB
- CatPhone_MULTI_Eyes-Inner.stl STL · 21 KB
- CatPhone_MULTI_Eyes-Outer.stl STL · 19 KB
- CatPhone_MULTI_Eyes-Sparkle.stl STL · 46 KB
- CatPhone_MULTI_Nose.stl STL · 15 KB
- CatPhone_MULTI_Paddings.stl STL · 86 KB
- CatPhone_MULTI_Smile.stl STL · 35 KB
- CatPhone_MULTI_Whiskers.stl STL · 53 KB
- CatPhone_Keyring_14mm.stl STL · 827 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 3
- Publicado
Sobre este modelo
Easy to print model of a small Cat to hold your smartphone
Also as a: - full model , without place for a phone - keyring
There are files for a multicolor print (Body, Nose, Eyes-Inner, Eyes-Outer, Eyes-Sparkle, Smile, Whiskers, Padings) but you can also paint the base model if you like or print it in one color
---
If you want to sell prints of this models you can join my Commercial Membership with all of my models on Thangs or write to me, I will prepare a commercial licensed version (for life)
---
Number in file names is a space for a phone in milimeters For a phone thickness of 8-14mm - numbers will also be on the bottom of printed models
To resize the models use the equasion: 'Needed space (in milimeters)' divided by 'model number' multiplied by 100% = 'Needed model size in percent' For example if you need more stable 16mm you can take 10mm version resized to: 16 / 10 * 100% = 160%

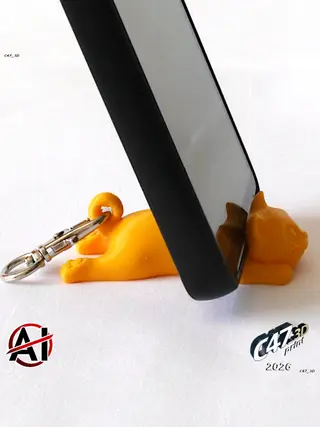

Suitable with a phone set horizontally and vertically (tested with a 12mm thick phone) The smaller the gap between the print and a phone the more stable the phone stand is You can resize smaller version to the bigger size for more stabbility
The gap for a phone is cut with 12dgr angle
---
MULTICOLOR Select base file (ex. CatPhone_Keyring_12mm) and all of MULTI files and drop them in the slicer. Then click 'yes' if asked to merge the models (if there is no notification you will need to merge it by yourself - use right click menu)
Model is prepared for 5 colors - but can be printed on 4 colors printer Set Eyes-Sparkle color to the same as Nose and Smile, then add a pause after nose is finished and change pink/red filament to white one OR just print with 4 colors (Eyes-Outer as white instead of light yellow/light green)
Color suggestions: Eyes-Inner - black Eyes-Outer - light yellow/green/blue or gold Eyes-Sparkle - white Nose - red / pink Paddings - black / dark brown / pink Smile - red / pink Whiskers - black
Multicolor files are with a 'frame' that will not be printed It's to help setting moedls in the right place Ignore model 'errors' and do not try to 'fix' the model
---
Printing tips Printed with 0.16 and 0.2mm (multicolor) layer height 2-3 walls NO supports needed Some infill may be usefull (~10%)
Descripción original del autor, publicada en Thangs.
