CARD BOY – GAME BOY INSPIRED MICRO SD HOLDER (5 CARDS PER CARTRIDGE)

💾 Card Boy is a Game Boy-inspired Micro SD card holder with swappable cartridges with clickable buttons. Storing microSD cards has never been as fun as it is with this fidgeting station.

Made for retro gamers, photographers, drone pilots, videographers and anyone who loves a good fidget.

If you’re the type of person who likes to keep your cards in style, be sure to check out other designs on my profile. 💾SD Card Organizer – Retro Floppy Disk (Holds 10 Cards) (https://than.gs/m/1585497) 💾Retro Floppy Disk Nintendo Switch Game Organizer – Holds 10 Games (Switch 1 & Switch 2) (https://than.gs/m/1593249) 🥫Jurassic Park Cryocan – Nintendo Switch 1 & 2 Game Organizer (Up to 27 Cartridges, No Supports) (https://than.gs/m/1585780) 🥫Jurassic Park Cryocan SD Cards Organizer (https://than.gs/m/1636586) 🎮Nintendo Switch 2 / Switch 1 Game Organizer (https://than.gs/m/1586860)

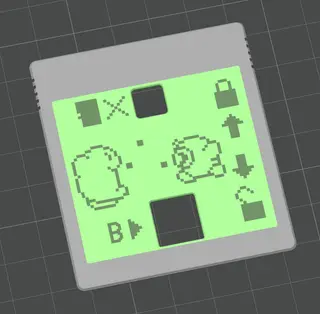

🖥️ You have 4 different screens to choose from, so you can select the style you like best. 💾 Each cartridge holds 5 Micro SD cards: print as many as you need with the color you wish. 🔄 Selector wheel to choose which card comes out. 🔘 One working button ejects the selected card. 🕹️ The other buttons and the D-pad are fidget buttons. 🎨 Multicolor version + mono-color version with engraved lettering. 🎬 Assembly video included. Assembly video (https://youtube.com/shorts/8udYjXaInog) ✔️ Fits Micro SD cards. Full-size SD cards and adapters don't fit.

Important: As a safety measure to prevent the loss of your microSD cards, you can only access the card storage area when the Card Boy is powered on. You may only remove the cartridge once you have closed the mechanism and powered off the Card Boy.

---------------------------------------------

📋 TECHNICAL SHEET

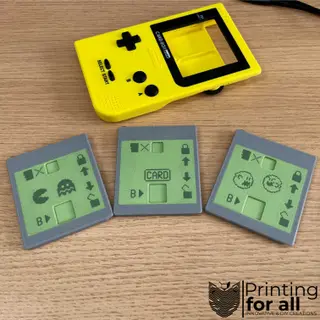

🎨 Card Boy.3mf: multicolor Card Boy + Cartridge (lettering in contrasting color). 🖤 Card Boy_Single_Color_Version.3mf: mono-color Card Boy + Cartridge (just the parts that need engraved lettering). 💾 Card_Boy_Assembled.3mf: Pre-assembled version for your joy.

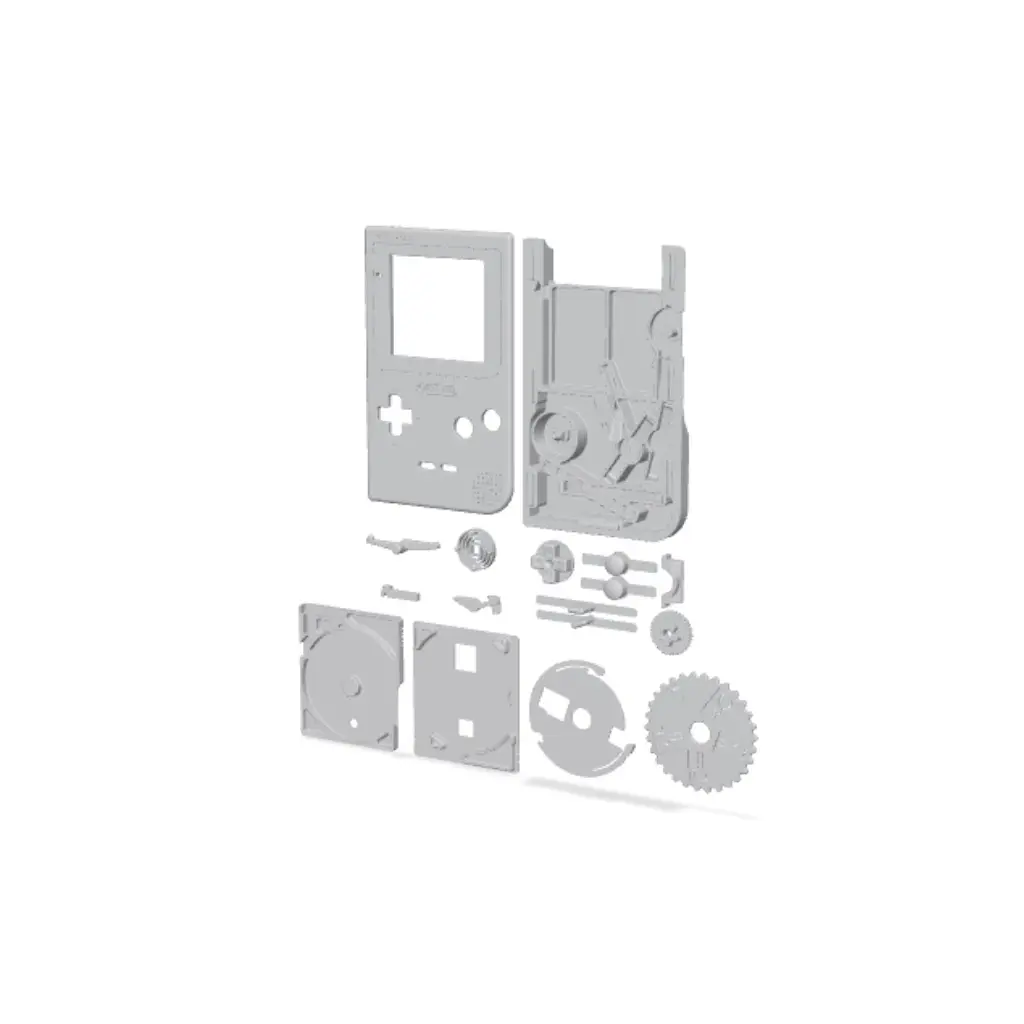

📏 Assembled size: 77.6x128x16.4mm 🧩 Parts: 17 ⚖️ Filament: 68 g 🛏️ Minimum bed size: 150mm

---------------------------------------------

🎨 MULTICOLOR

🎨 Multicolor version: 3 colors printed at once (AMS or similar). 🖨️ Mono-color version: prints on any single-extruder printer. ➕ No extra hardware needed: no springs, magnets, screws or glue.

💾 More retro storage organizers on my profile: grab the rest of the collection for your desk.

---------------------------------------------

🛠️ PRINTING TIPS

⚠️ Although the design has been extensively tested with a 0.4mm nozzle, I recommend using a 0.2mm nozzle to preserve details, especially in areas containing text. The main body case can be printed with a 0.4mm nozzle without any issues. 📐 Don't scale it: the clearances of the wheel, ejector and buttons are tuned at 100%. ✨ Ironing is optional, only for a cleaner top surface.

---------------------------------------------

🖨️ 3D PRINTING SETTINGS - Printer & slicer: Bambu H2C + Bambu Studio - Filament: Sunlu PLA+ - Nozzle: 0.4mm for the body box and 0.2mm for the rest - Nozzle temp: 220 C - Bed temp: 55 C - Layer height: 0.12 mm on the body box (0.4mm nozzle) and 0.1 on the rest (0.2mm nozzle) - Infill: Cubic 15% - Walls: 3 with 0.4mm nozzle and 4 with 0.2mm nozzle - Brim / Raft / Skirt: No - Supports: Not needed 🚫 - Ironing: Optional, up to you

---------------------------------------------

⚠️ For personal use only. This purchase does not include the right to sell prints or share the files, even for free. Want to sell prints? Send me a message to get a commercial license. ⚠️ Keep away from small children and pets: small parts may detach and pose a choking hazard.

⚠️ *This is a 100% original mechanical design. It contains no geometry, images, videos, or mechanisms that have been copied or generated using AI. It has been designed from scratch and is not based on mechanisms created by other designers. Please keep in mind the significant effort that went into its design and prototyping; a design like this represents months of work.*
