Breakable Pots and Rupees for Zelda Ocarina of Time 40th Anniversary

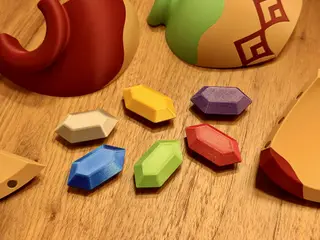

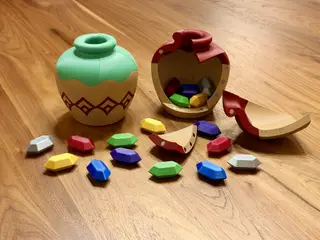

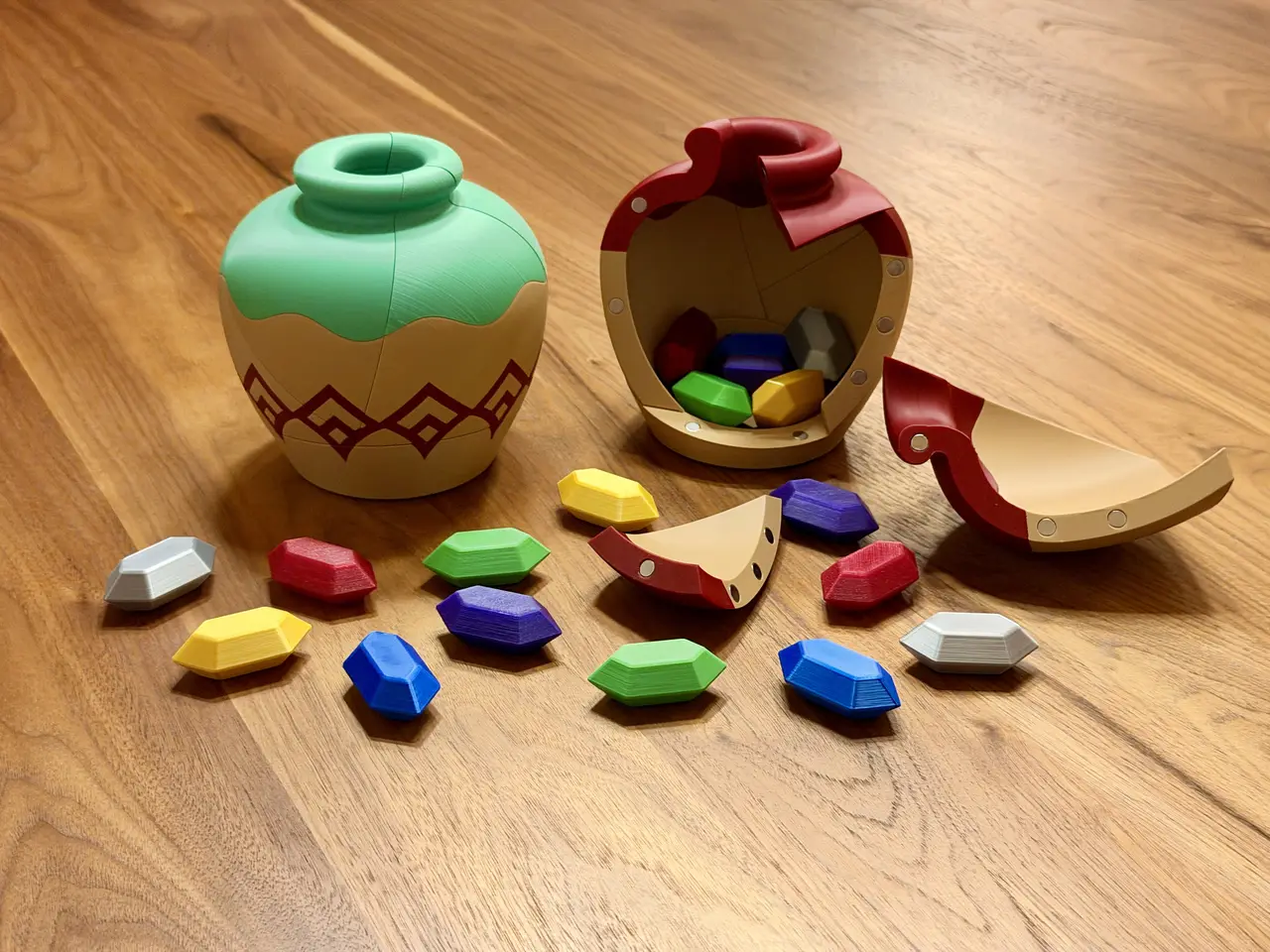

I've created two (simple and patterned) versions of the breakable pot inspired by pot designs in The Legend of Zelda: Ocarina of Time for Nintendo Switch 2 and one (retro) version inspired by the pot design in The Legend of Zelda: Ocarina of Time for Nintendo 64. Just like the game, break apart the (magnetically attached) pot to reveal rupees! Use the magnetic version of the rupees to display artwork on your fridge. Parts - Each pot uses 40 6x2mm magnets

- If you decide to print the magnet version of the rupee, it uses 2 6x2mm magnets

- The magnets that I used were purchased from https://a.co/d/04ZLyCPx on the US Amazon store

- After cleaning out the magnet holes with a small flathead screwdriver, add one small drop of CA / super glue per magnet (ensure the nearby parts have compatible polarity—double check before gluing; as for magnets in the 2 close holes of the rupee, use alternating polarity for maximum strength)

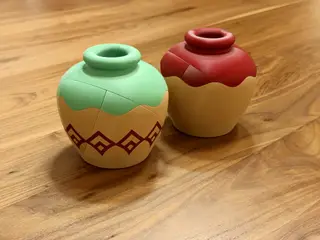

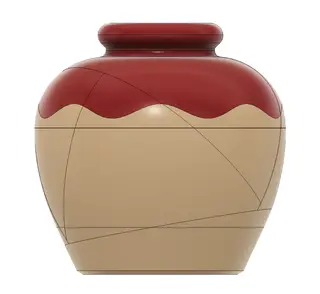

Breakable Pots Use the part orientations in the provided 3mf files for highest chance of success. This can be a tricky print because PETG doesn't bond to PLA but that's part of the intention so the supports just slide right off. If the PETG interface layers don't rest well on the PLA supports, you might get some rough surfaces so I recommend printing the pot fragments one at a time. Printer: Multi-tool printer like the Prusa Core ONE+ Gen 2 with INDX Rafts: No Supports: Generate support material: Yes Auto generated supports: Yes (the 3mf files have support blockers where appropriate) Overhang threshold: 55° Top contact Z distance: 0mm (soluble) Pattern spacing: 3mm Top interface layers: 5 layers Interface pattern spacing: 0mm Support on build plate only: On (use the part orientations in my 3mf files) Multiple Extruders (so you can use a smooth PEI sheet without risking PETG touching the sheet and maximizing the support structure since PLA and PETG do not adhere well): Support material/raft/skirt extruder: one of your PLA tools Support material/raft interface extruder: PETG tool Resolution: 10% Gyroid Colors Filament for the Simple Pot (requires 3 tools) - 1 = PLA Inland Light Brown

- 2 = PLA Prusament Blood Red

- 3 = PETG Prusament Urban Gray (or any color)

Filament for the Patterned Pot (requires 4 tools) - 1 = PLA Inland Light Brown

- 2 = PLA Polymaker PolyLite Green

- 3 = PLA Prusament Blood Red

- 4 = PETG Prusament Urban Gray (or any color)

Filament for the Retro Pot (requires 4 tools) - 1 = PLA Inland Light Brown

- 2 = PLA Prusament Vanilla White

- 3 = PLA Inland Brown

- 4 = PETG Prusament Urban Gray (or any color)

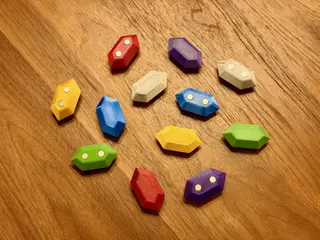

Rupees (with or without magnets) Printer: Any Rafts: No Supports: No (if your printer can't handle the overhangs, try slowing your print speed down) Resolution: 10% Gyroid Single perimeter on top surfaces: All top surfaces Only one perimeter on first layer: Yes Colors - PLA Prusament Simply Green

- PLA Prusament Royal Blue

- PLA Prusament Galaxy Red

- PLA Prusament Galaxy Purple

- PLA Prusament My Silverness

- PLA Prusament Oh My Gold

These models are not affiliated, associated, authorized, endorsed by, nor in any way officially connected with Nintendo. Their names, related names, marks, emblems, and images are registered trademarks of their respective owners.
