Bike Chain Fidget
Print these super easy to assemble and even more fun to play with fidget bike spinners
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a kris s.
Archivos (7)
- Chain_Fidget_larger.3mf 3MF · 731 KB
- DEMO_DO_NOT_PRINT.stl STL · 1,8 MB
- Inside_x2 larger.stl STL · 54 KB

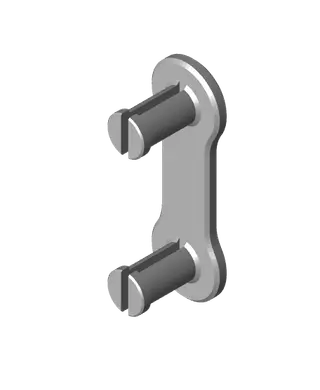

- Joint Pin_double_larger.stl STL · 100 KB
- Joint Pin_single_larger.stl STL · 142 KB
- Outside_x2.stl STL · 133 KB

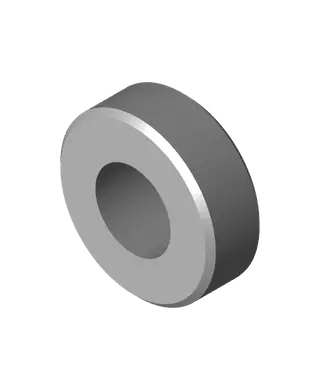

- tpu ring_larger.stl STL · 972 KB
- Categoría
- Juguetes y juegos
- Formatos
- 3MF, STL
- Descargas
- 83
- Publicado
Sobre este modelo
Print these super easy to assemble and even more fun to play with fidget bike spinners

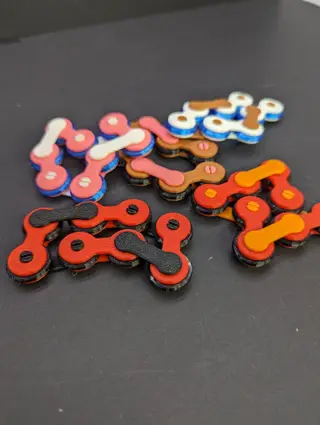

Mix and match colors as much or as little as you wish and have fun with them!
Designed and printed on Bambu Machines using BL PLA and TPU
they occasionally break during assembly but dont get discouraged with the right filament and process you actually get the assembly process.
I like to reverse my Pins every set and even mix colors for a super unique look, you can even add more to a chain and make them as big/small as you wish
3D PRINTING SETTINGS Tolerance and Proper filament calibration is highly required if you find that your pins are not connecting right or breaking its probably the filaments.
Silks ARE NOT recommended as they can be more brittle so if you choose to use them scale the base pieces 0.5-1% for the little extra clearance.
Prints are designed around a 0.25mm Tolerance so that is an important part to keep them snug yet loose
PLA 0.2mm layers 3-4 walls 4-5 Top/Bottom layers
TPU 0.2mm (0.12mm recommended) 3 walls
Descripción original del autor, publicada en Thangs.
