B2EMO RC Toy
This little BEE can move around, open up its wheel and extend its body.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Box L.
Archivos (63)
- Base.stl STL · 3,2 MB
- Battery Lid.stl STL · 119 KB
- Boot Base Alt.stl STL · 79 KB
- Boot Base Flip.stl STL · 1,0 MB
- Boot Base.stl STL · 1,0 MB
- Boot Cover Alt.stl STL · 477 KB
- Boot Cover Flip.stl STL · 291 KB
- Boot Cover.stl STL · 291 KB
- Boot Mount Lower Flip.stl STL · 933 KB
- Boot Mount Lower.stl STL · 933 KB
- Boot Mount Upper Flip.stl STL · 934 KB
- Boot Mount Upper.stl STL · 934 KB
- Chest.stl STL · 1,5 MB
- DC Gear.stl STL · 80 KB
- Driveshaft A.stl STL · 122 KB
- Driveshaft B.stl STL · 60 KB
- Driveshaft Cover.stl STL · 171 KB
- Driveshaft Servo Cover.stl STL · 55 KB
- Driveshaft Servo Gear.stl STL · 264 KB
- Ext 1st.stl STL · 55 KB
- Ext 2nd.stl STL · 448 KB
- Ext 3rd.stl STL · 184 KB
- Ext Arm Short.stl STL · 31 KB
- Ext Arm Spacer.stl STL · 13 KB
- Ext Arm.stl STL · 33 KB
- Ext Gear Spiral.stl STL · 2,3 MB
- Ext Gear Spur.stl STL · 162 KB
- Ext Mount.stl STL · 104 KB
- Ext Servo Gear.stl STL · 665 KB
- Ext Servo Mount.stl STL · 73 KB
- Ext Wire Guide L.stl STL · 327 KB
- Ext Wire Guide U.stl STL · 231 KB
- Eye Cover.stl STL · 800 KB
- Eyes Cap.stl STL · 32 KB
- Eyes.stl STL · 860 KB
- Face Gear.stl STL · 217 KB
- Face Mount Clamp.stl STL · 128 KB
- Face Mount.stl STL · 695 KB
- Face Power.stl STL · 32 KB
- Face Servo Gear.stl STL · 64 KB
- Face USB.stl STL · 23 KB
- Face.stl STL · 2,0 MB
- Guide Lower.stl STL · 130 KB
- Guide Upper.stl STL · 105 KB
- Guts Lower.stl STL · 220 KB
- Guts Upper.stl STL · 587 KB
- Neck Servo Gear.stl STL · 56 KB
- Omni Clamp.stl STL · 55 KB
- Omni Hub Flip.stl STL · 494 KB
- Omni Hub.stl STL · 495 KB
- Pupil.stl STL · 228 KB

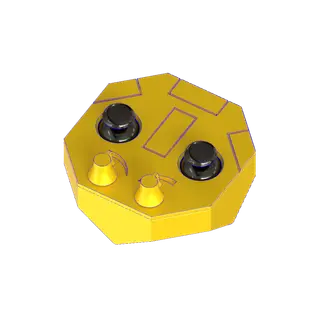

- Remote_Base.stl STL · 349 KB
- Remote_Dial.stl STL · 200 KB
- Remote_Lid.stl STL · 7,1 MB
- Roller A.stl STL · 277 KB
- Roller B.stl STL · 261 KB
- Roller Mount.stl STL · 38 KB
- Shoulders.stl STL · 1,0 MB
- Tub.stl STL · 573 KB
- Wire Cover.stl STL · 123 KB
- Categoría
- Juguetes y juegos
- Formatos
- STL, ZIP, PDF
- Descargas
- 295
- Publicado
Sobre este modelo

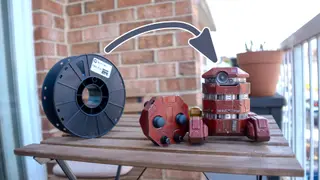

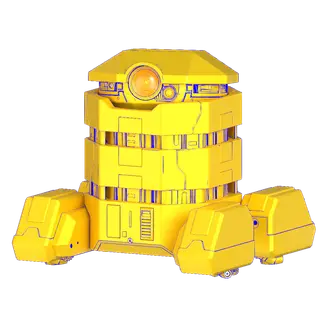

This little BEE can move around, open up its wheel and extend its body. The eye will light up and the head is fully articulated. The bot runs on 4 AAA batteries with a chargable LiPo battery. A pdf guide is included with detailed instructions and useful information.
Video guide to build the B2EMO by Box and Loop: https://youtu.be/zxGkoxTTtmM
PDF contains: Code, Wiring, BOM
Enjoy your build!
Links for parts: Servo ES08MA II https://amzn.to/3V5k1Zn DC Motor https://amzn.to/49Rbj4U Adafruit DC Motor FeatherWing https://amzn.to/3wxRt05 USB C Module https://amzn.to/49BsuaY Adafruit Feather M0 RFM95 LoRa Radio https://amzn.to/3ToFHwT LiPo Battery - 400mAh https://amzn.to/3wBISJU LiPo Battery - 1200mAh https://amzn.to/3Tjyi3l LED 5mm https://amzn.to/3ThLN3l 2xAAA Battey Holder https://amzn.to/49TImVV Push Button - 12mm https://amzn.to/3UUTqxZ Thumb Joystick https://amzn.to/49Y7k6N Potentiometer https://amzn.to/3wz3UJc Bearing 8x12x3.5 https://amzn.to/3T0hBs1 Bearing 5x2x2.3 https://amzn.to/3IjSNGx Bearing 3x7x3 https://amzn.to/3Ihj6xl Bearing 15x10x4 https://amzn.to/3Thl3jk Thrust Bearing 8x19x2 https://amzn.to/3UYSnNy Thrust Bearing 3x8x3.6 https://amzn.to/3P37LEL Rods - 2mm https://amzn.to/3VhRMXx Slide Switch - 3pin https://amzn.to/3TheI7H m3 Heat Inserts https://amzn.to/49xzF3L Ball Bearings - 4mm https://amzn.to/4bQZOwl JST kit 1.5mm https://amzn.to/42VTSOt Zipties - Small Kit https://amzn.to/3uSMwhY
Descripción original del autor, publicada en Thangs.
