Articulated finger extensions

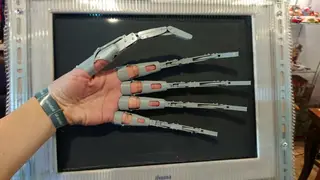

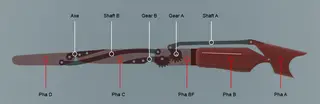

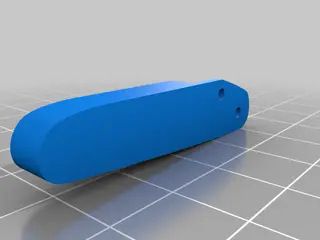

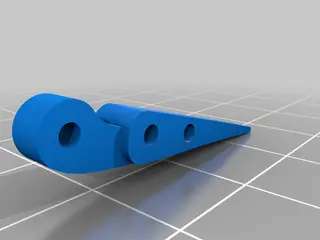

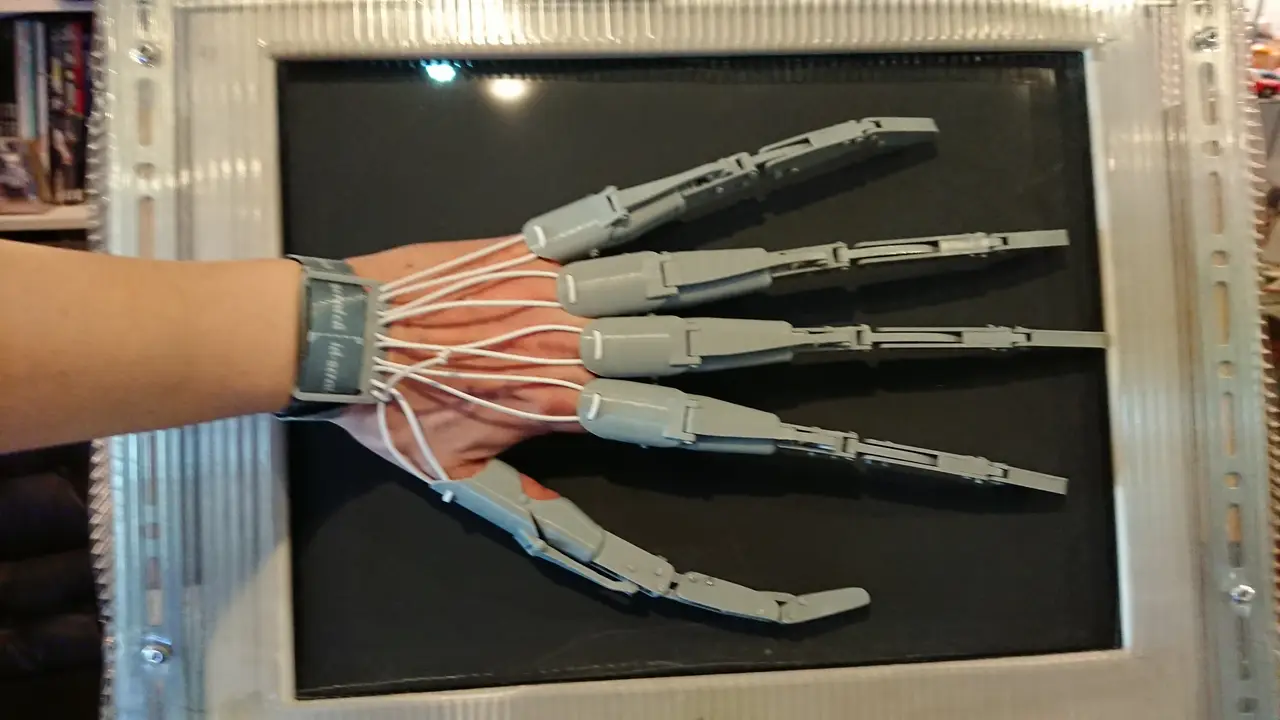

https://youtu.be/gaZWjItCFYg My take on Gary Fay's articulated fingers extentions. I've made the fingers as thin as I could so I can add differents 3d printed skins later (like a skeleton skin, a monster skin, an evil witch skin, etc.). I know the thumb isn't suppose to have that many phalanx but I thought it was spookier like this. Those are custom-made for my hands so you'll have to adapt them for you. My hands (length of fingers from inner webbing to the top) : • Thumb 70mm • Index finger 80mm • Middle finger 85mm • Ring finger 85mm • Pinky finger 60mm Width of my fingers are around 20mm. I used filament for all the axis. Easy to cut to any size needed. Burn each end and squeeze them. Edit: • 17/05/20 Updated MF_Pha_A, PIN_Pha_A and THUMB_Pha_A • 24/05/20 Uploaded the skeleton skin : https://www.thingiverse.com/thing:4391928 • 24/05/20 Uploaded the files used to create a skin: https://www.thingiverse.com/thing:4392074 • 30/05/20 Uploaded the Fusion 360 file PARTS YOU'LL NEED TO PRINT FOR ONE HAND : 5X Axe 5X Gear_A 5X Gear_B 3X MF_Pha_A 2X MF_Pha_B 3X MF_Pha_BF_Base 3X MF_Pha_BF_Top 4X MF_Pha_C 1X MF_Pha_D_Top 1X MF_Pha_D_Base 2X MF_Shaft_A 2X_MF_Shaft_B 1X IND_Pha_B 2X IND_Pha_C 2X IND_Pha_D_Top 2X IND_Pha_D_Base 1X IND_Shaft_A 1X IND_Shaft_B 1X PIN_Pha_A 1X PIN_Pha_B 1X PIN_Pha_BF_Top 1X PIN_Pha_BF_Base 4X PIN_Pha_C 2X PIN_Pha_D_Top 2X PIN_Pha_D_Base 1X PIN_Shaft_A 2X PIN_Shaft_B 1X THUMB_Pha_A 1X THUMB_Pha_B 1X THUMB_Pha_BF_Top 1X THUMB_Pha_BF_Base 1X THUMB_Shaft_A 1X Wrist PARTS FOR EACH FINGERS : Thumb : 1X Axe 1X Gear_A 1X Gear_B 1X THUMB_Pha_A 1X THUMB_Pha_B 1X THUMB_Pha_BF_Top 1X THUMB_Pha_BF_Base 1X THUMB_Shaft_A 2X PIN_Pha_C 1X PIN_Pha_D_Top 1X PIN_Pha_D_Base 1x PIN_Shaft_B Index finger : 1X Axe 1X Gear_A 1X Gear_B 1X IND_Pha_B 2X IND_Pha_C 1X IND_Pha_D_Top 1X IND_Pha_D_Base 1X IND_Shaft_A 1X IND_Shaft_B 1X MF_Pha_A 1X MF_Pha_BF_Base 1X MF_Pha_BF_Top Middle finger : 1X Axe 1X Gear_A 1X Gear_B 1X MF_Pha_A 1X MF_Pha_B 1X MF_Pha_BF_Base 1X MF_Pha_BF_Top 2X MF_Pha_C 1X MF_Pha_D_Top 1X MF_Pha_D_Base 1X MF_Shaft_A 1X_MF_Shaft_B Ring finger : 1X Axe 1X Gear_A 1X Gear_B 1X MF_Pha_A 1X MF_Pha_B 1X MF_Pha_BF_Base 1X MF_Pha_BF_Top 2X MF_Pha_C 1X IND_Pha_D_Top 1X IND_Pha_D_Base 1X_MF_Shaft_A 1X_MF_Shaft_B Pinky finger : 1X Axe 1X Gear_A 1X Gear_B 1X PIN_Pha_A 1X PIN_Pha_B 1X PIN_Pha_BF_Top 1X PIN_Pha_BF_Base 2X PIN_Pha_C 1X PIN_Pha_D_Top 1X PIN_Pha_D_Base 1X PIN_Shaft_A 1X PIN_Shaft_B
