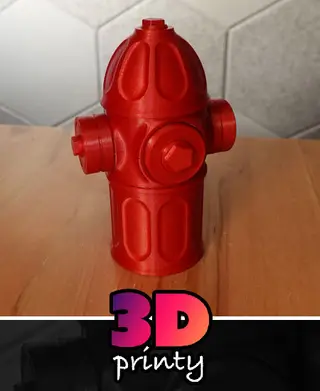

6-Alarm Puzzle Box
A high pressure hydrant head-scratcher with multiple hidden compartments.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a 3D P.
Archivos (19)
- Template.step STEP · 2,7 MB
- Optional TPU Plug.stl STL · 456 KB
- Side Cap.stl STL · 285 KB
- Dial.stl STL · 1,3 MB
- Front Cap Ring.stl STL · 123 KB
- Secret Lid.stl STL · 123 KB
- Lock.stl STL · 125 KB
- Case Bottom.stl STL · 2,2 MB
- Case Top.stl STL · 4,6 MB
- Front Cap.stl STL · 222 KB
- Side Cap Bolt Head.stl STL · 88 KB
- Latching Bolt Track.stl STL · 233 KB
- Core Top.stl STL · 807 KB
- Latching Bolt.stl STL · 371 KB
- Core Bottom.stl STL · 843 KB

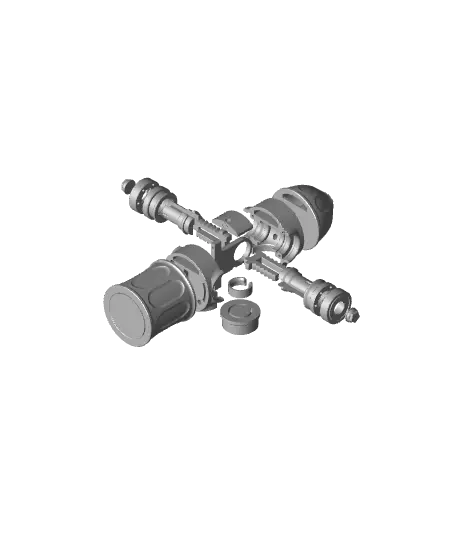

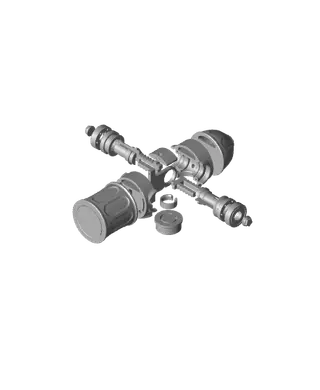

- Demo - Exploded.stl STL · 23,1 MB
- Demo - Exploded.3mf 3MF · 7,5 MB

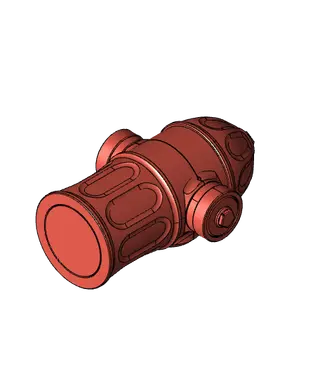

- Demo - Assembled.3mf 3MF · 7,5 MB
- Demo - Assembled.stl STL · 23,1 MB
- Categoría
- Juguetes y juegos
- Formatos
- STEP, STL, 3MF
- Descargas
- 149
- Publicado
Sobre este modelo
A high pressure hydrant head-scratcher with multiple hidden compartments.
Puzzle Solution https://youtu.be/swrISxBe1C8
Puzzle Assembly https://youtu.be/w-68HnlEciQ
Recommended Hardware
While the puzzle box can be assembled with only glue, the following hardware is recommended for improved puzzle box strength, a more satisfying puzzle mechanism movement, and a bonus secondary hidden compartment.
12mm M3 socket head bolts - Qty 6 Up to 24mm long is also acceptable
6x3mm cylinder magnets - Qty 6 Required for the bonus hidden compartment)
3x3mm cylinder magnets - Qty 24 Adds a satisfying snap to the puzzle mechanism.
Printing - Designed for 0.2mm layer heights and 0.4mm line widths. - All parts can be printed without supports. - Add a brim on smaller parts if bed adhesion is an issue. Warping may result in an unsolvable puzzle.
Can I sell copies of this?
Yes! This project was shared under the Creative Commons - Attribution (https://creativecommons.org/licenses/by/4.0/) license.
This license allows selling copies, but you must provide proper attribution, as detailed in the license itself.
Please note that any other projects linked here (remixes or related projects) may have a different license. Please respect those licenses.
This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
Recommended Attribution Text
"6-Alarm Puzzle Box" (https://3dprinty.xyz/project/124) is designed by 3D Printy (https://3dprinty.xyz) and shared under a Creative Commons Attribution (CC BY 4.0) license (https://creativecommons.org/licenses/by/4.0/).
