5-Pointed Star Model
por ddden en Printables

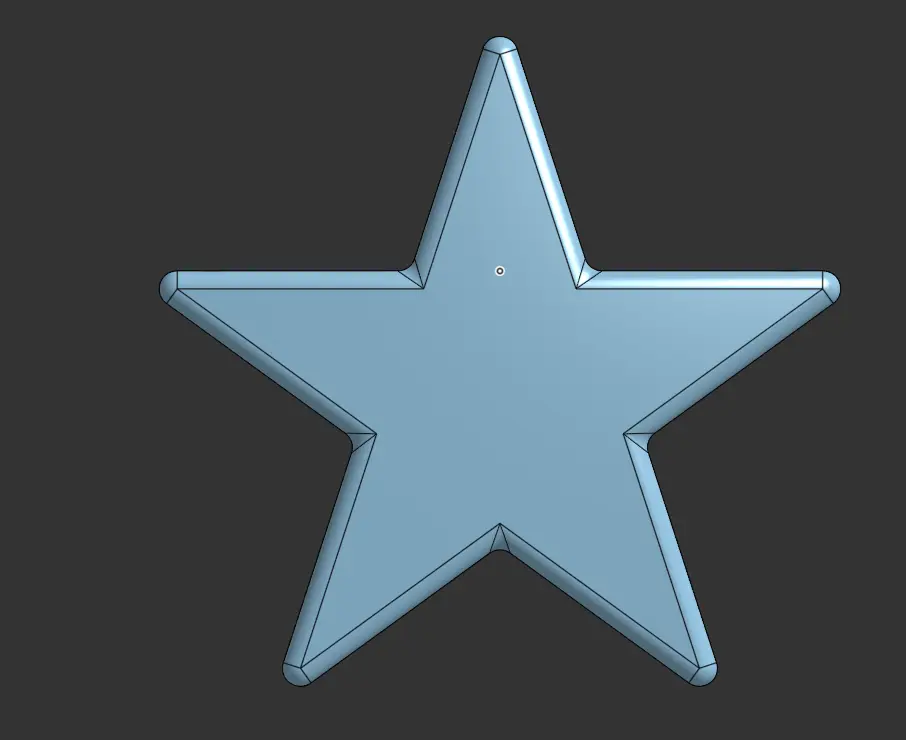

A classic 5-pointed star featuring clean geometry, rounded edges, and smooth chamfered/beveled surfaces. Ideal as a deco
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a ddden.
Archivos (1)
- Categoría
- Juguetes y juegos
- Formatos
- STL
- Descargas
- 1
- Publicado
Sobre este modelo
Design & Technical Dimensions The model geometry is defined by the following CAD dimensions (in mm unless scaled): - Point Tip Angle: $36^\circ$ at each outer vertex
- Inner Corner Angle: $36^\circ$ at each inner notch
- Symmetry Line Angle: $18^\circ$ center division per arm
- Outer Arm Edge Length: $32.361\text{ mm}$ (distance from the outer tip to the inner corner)
- Horizontal Arm Span (Tip to Inner Notch): $32.361\text{ mm}$
- Inner Core Radius / Segment: $20\text{ mm}$ across inner construction points ($10\text{ mm}$ half-span)
Descripción original del autor, publicada en Printables.
